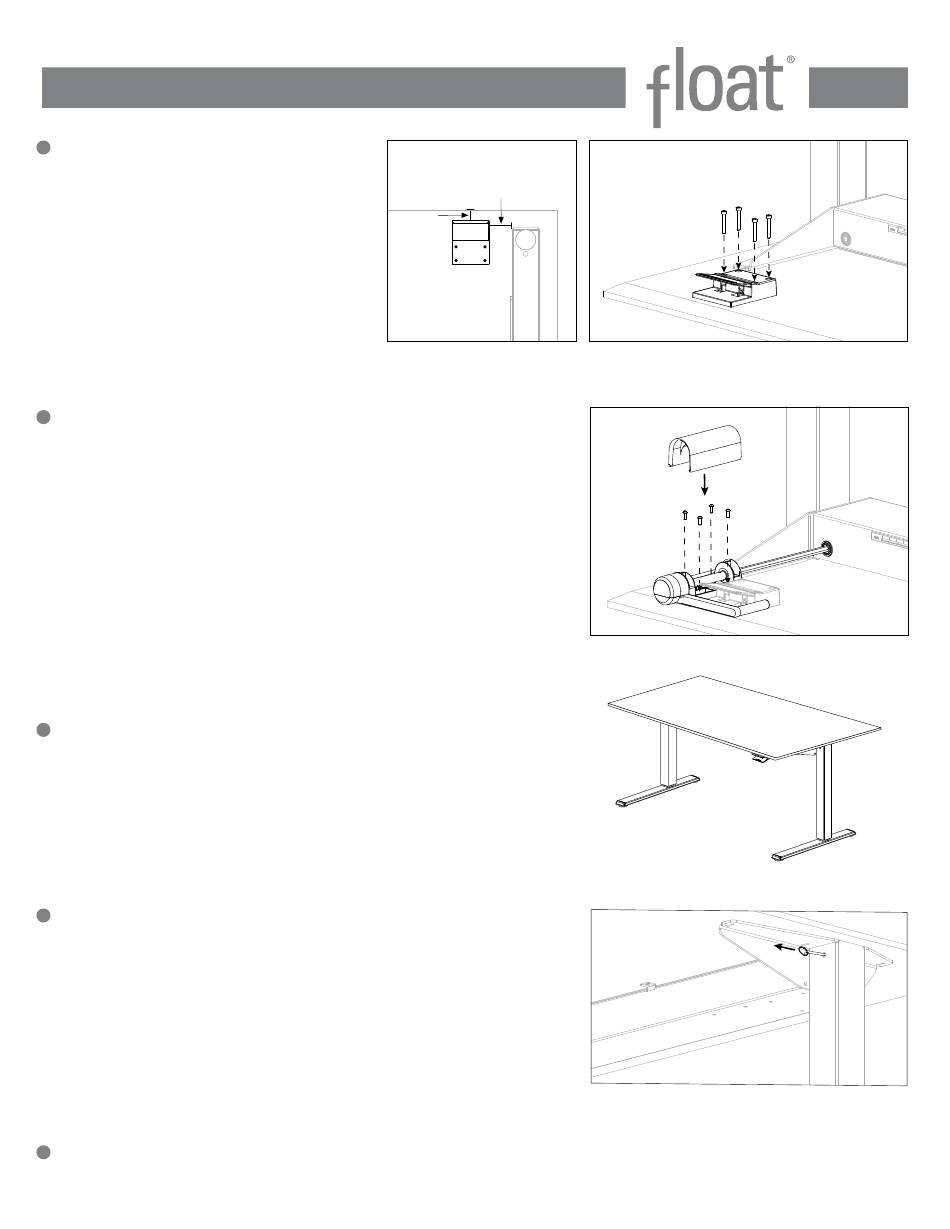

Installing the Release Paddle

6
a. Place the Float Release Paddle 1"
from the front edge of the work
surface and 2¼" from the inside
edge of the Wing Bracket (fig. F)
b Use the (4) 1½" Wood Screws to
secure the Release Paddle to the
work surface. (fig. G)
Important: Do not over tighten the
Release Paddle

Installing the Mounted Spring Tension Adjuster

7
(if you did not order your Float with this option, please proceed to step 8)
a. Take the Mounted Spring Tension Adjuster and locate the metal shaft
into the hex spigot in the center beam
b. Position the Mounted Spring Tension Adjuster in line with the
installed Release Paddle. Use the (4) ½" Wood Screws to secure
down to the work surface
c. Take the Mounted Spring Tension Adjuster Plastic Housing, place
and snap into position over the (4) ½" Wood Screws that were
installed in step 7b (fig. H)
Carefully turn the Float back over and into position so that it is
8
ready to use
Remove the Safety Leg Pin on the right side (to the right of the
9
min – max scale) by removing the red tape and pulling it out
(this is used for shipping purposes only) (fig. I)
You will now be able to operate your new Float by gently squeezing the Release Paddle and supporting the
10
work surface as you raise and lower it
