Assembly Instructions for work surfaces with no pre-drilled holes

Installing the Float Wing Brackets

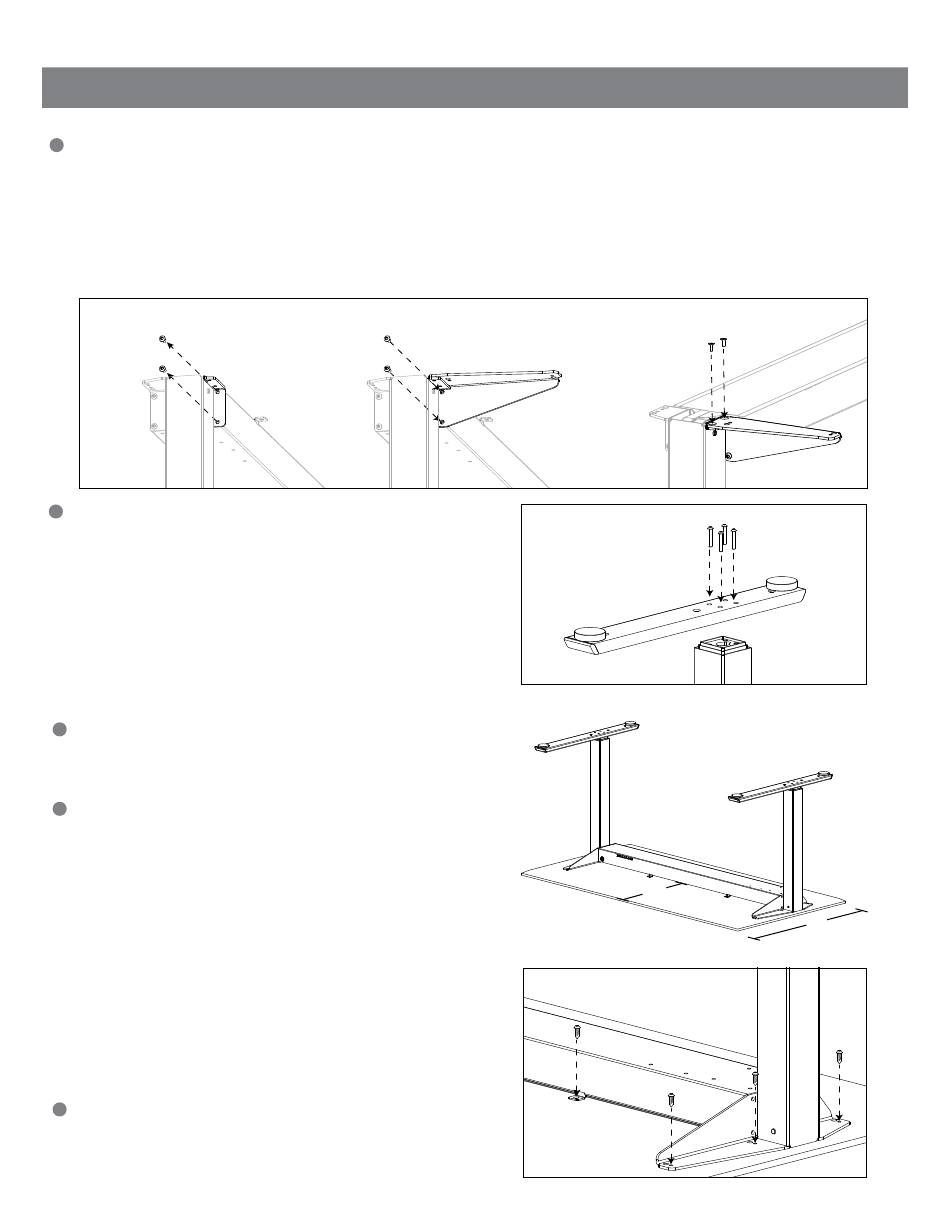

1
a. Remove the two machine screws on each end of the center beam (fig. A)
Important: The machine screws that should be removed are the ones on the same side as the spring tension
min – max scale
b. Install each Bracket on its respective table side by screwing the two machine screws through the Wing Bracket and
back into the center beam (fig. B)
c. Install the (4) M6 Short Flat Head Machine Screws through the top of the Wing Brackets and into the Float Base (fig. C)
A

Installing the Float Feet

2
a. Turn the Float Base upside down so that the center beam
is on the floor while the Float Feet are being installed
b. Install the Feet by lining up each of the four holes over the
top of the legs
Important: The longer section of the Feet must be on the
same side as the spring tension min – max scale
c. Use (4) M8 Long Machine Screws to secure each Foot to
the Base frame (fig. D)
Place the work surface face down on a soft surface
3
to avoid scratching it
Turn the Float Base upside down (if it is not already) and
4
place onto the underside of the work surface
a. Please ensure that the Float Base is centered so that
there is equal distance from the edge of the work surface
on either side
For Float tables that have 30" deep surfaces: Measure and
mark 16.5" from the front edge of the work surface to the
front edge of the center beam (the same edge that the spring
min – max scale is positioned on) (example shown)
For Float tables that have 24" deep surfaces: Measure and
mark 13.5" from the front edge of the work surface to the
front edge of the center beam (the same edge that the spring
min – max scale is positioned on)
With the Float Base in position according to your
5
markings, use the (12) ¾" Wood Screws to secure the
Float Base to the work surface. Use the smaller holes
provided on the Float Base for this (fig. E)
B
D
E
6
C
16.5"
30"
