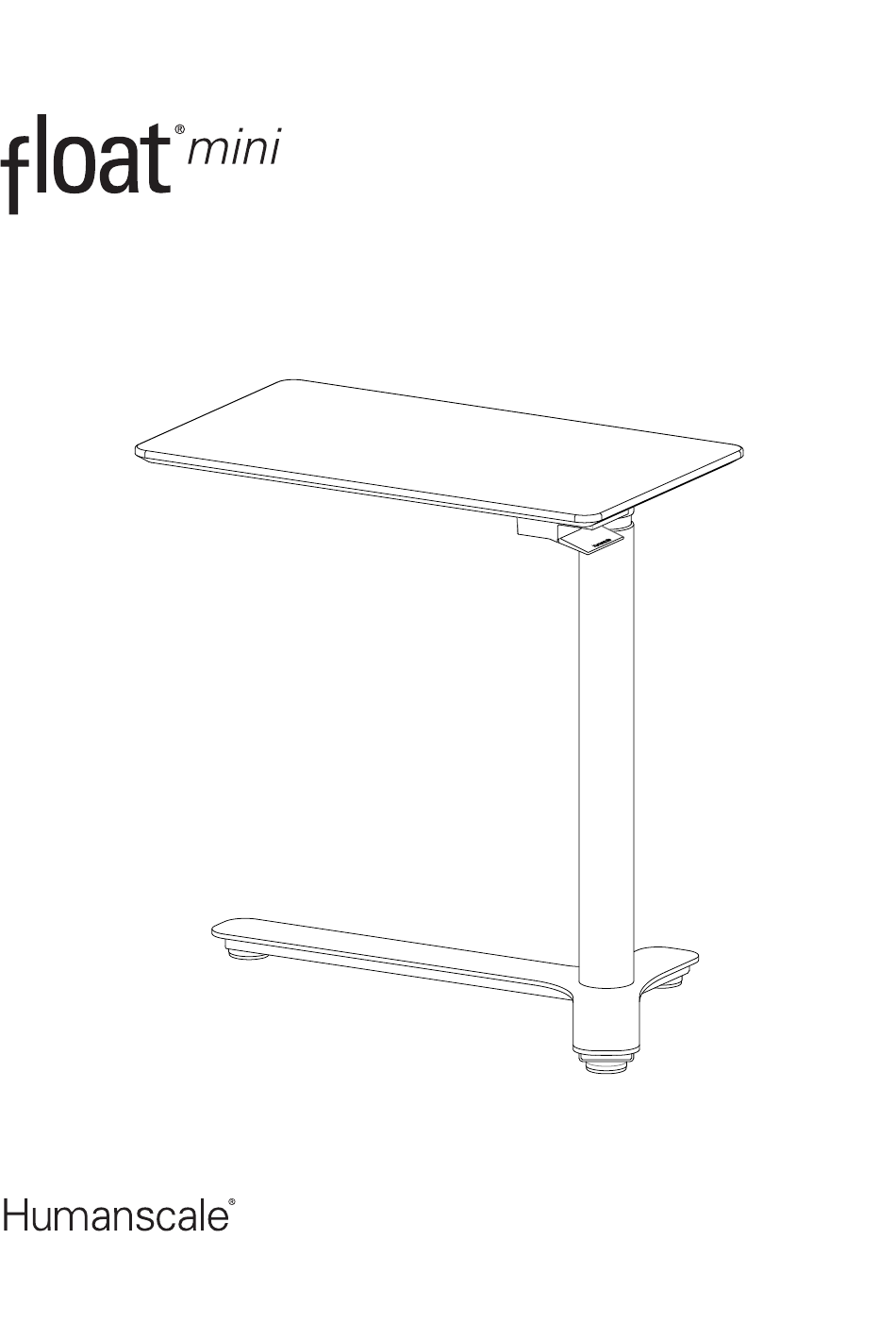

- Page 1 Assembly Instructions North America: +1 800 400 0625 Europe: +353 (0)1 858 0910 Asia Pacific: +8522581 0570...
-
Page 2: Parts Included
Tools Required phillips head screwdriver Parts Included ① ② ③ Work Surface Mounting Plate ④ ⑤ ⑥ Column with Base 3x Glides 3x Casters Actuator *Optional ⑦ ⑨ ⑫ 3x M6x25mm Screws 4x #8x38mm Screws 2x Cable Clip ⑧ ⑩ ⑬... - Page 3 Assembly Instructions Attach mounting plate to column Assemble the mounting plate onto the column with the M6x35mm (4) screws using the 4mm hex key provided. There are 2 locations depending on the preference. For taller users, optional location is suggested for more leg room under the table.
- Page 4 Attach base Assemble the base to the column with the M6x25mm (3) screws using the 4mm hex key provided. *This step may require 2 people for safety in order to balance the base. Attach glides/ casters Install glides or casters into the indicated holes on bottom of base. For casters, ensure full installation by rotating fixed nut on threaded stem into holes of base using the 12mm open wrench provided.
- Page 5 Attach height actuator Secure the actuator to the worksurface in your desired location using the #8x38mm (4) screws provided. Refer to the hole locations below. For right handed actuation Screw location For left handed actuation Attach cable clip Secure the cable clip using the #6x16mm screw provided. Hole location shown below . (Base not visible) (1 extra cable clip and screw included) For left handed actuation For right handed actuation...
- Page 6 Fixez la surface de travail Instructions d’assemblage Posez la surface de travail à l’envers Français sur une surface de protection. Fixez la plaque de montage sur la surface de Outils nécessaires travail à l’aide des 9 vis nº 10 de 20 mm fournies. tournevis cruciforme Consultez la page 3 Pièces incluses...
- Page 8 For our terms and conditions please go to https://www.humanscale.com/about/legal-information/terms-conditions.cfm © 2021 Humanscale Corporation. The text and artwork are copyrighted materials. All rights reserved. The Humanscale mark and logo are trademarks of Humanscale Corporation and are registered in the United States and certain other countries.
