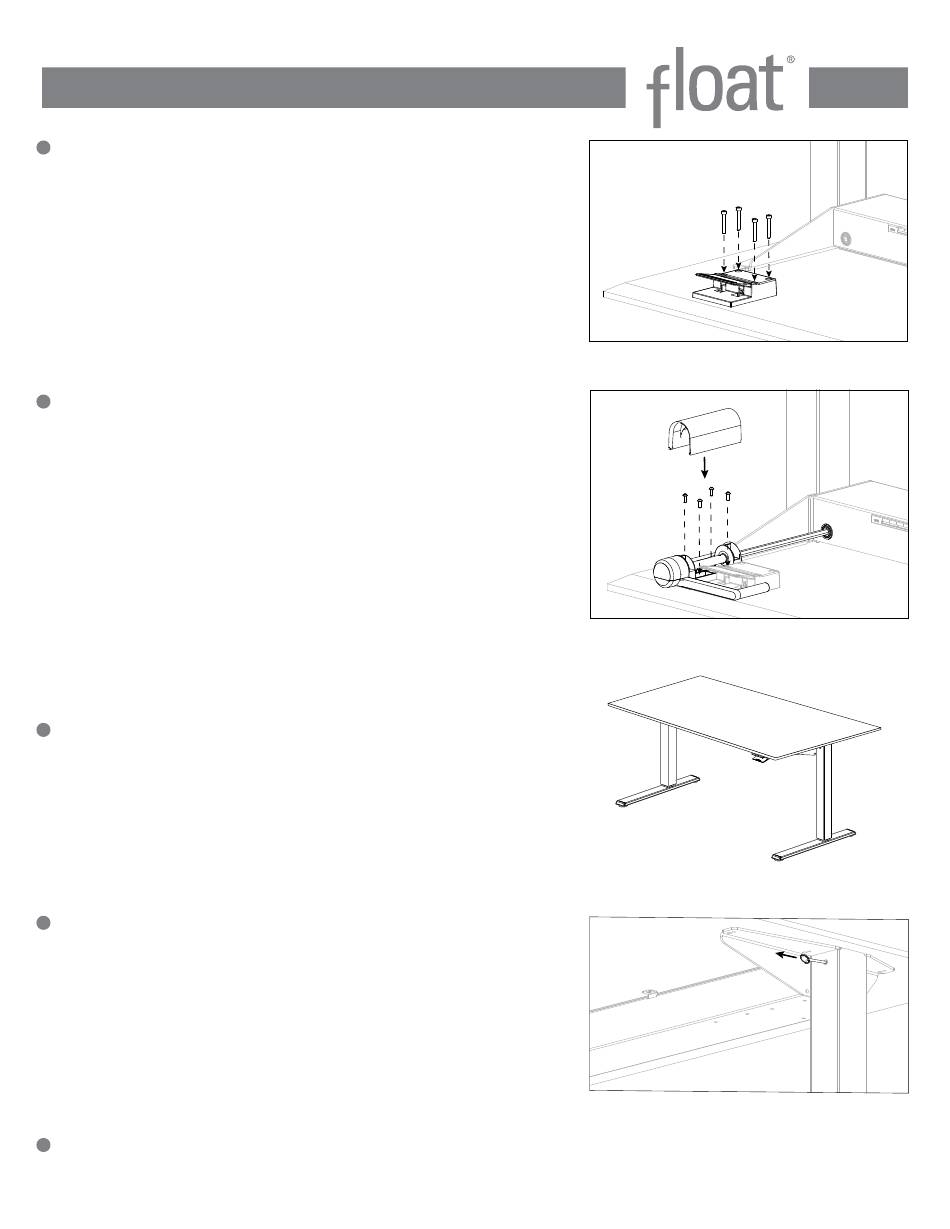

Installing the Release Paddle

5
a. Line up the Release Paddle with the corresponding pre-drilled metal
inserts on the underside of the work surface
b. With the Release Paddle in position, use the (4) M5 Long Machine
Screws to secure the Release Paddle to the work surface (fig. F)
Important: Do not over tighten the Release Paddle

Installing the Mounted Spring Tension Adjuster

6
(if you did not order your Float with this option, please proceed to step 7)
a. Take the Mounted Spring Tension Adjuster and locate the metal shaft
into the hex spigot on the center beam
b. Line up the Mounted Spring Tension Adjuster with the corresponding
pre-drilled metal inserts on the underside of the work surface
c. With the Mounted Spring Tension Adjuster in position, use the (4) M5
Short Machine Screws to secure it to the work surface
d. Take the Mounted Spring Tension Adjuster Plastic Housing, place and
snap into position over the (4) M5 Short Machine Screws that were
installed in step 6c (fig. G)
Carefully turn the Float back over and into position so that it is
7
ready to use
Remove the Safety Leg Pin on the right side (to the right of the
8
min – max scale) by removing the red tape and pulling it out
(this is used for shipping purposes only) (fig. H)
You will now be able to operate your new Float by gently squeezing the Release Paddle and supporting the
9
work surface as you raise and lower it
F
G
H
