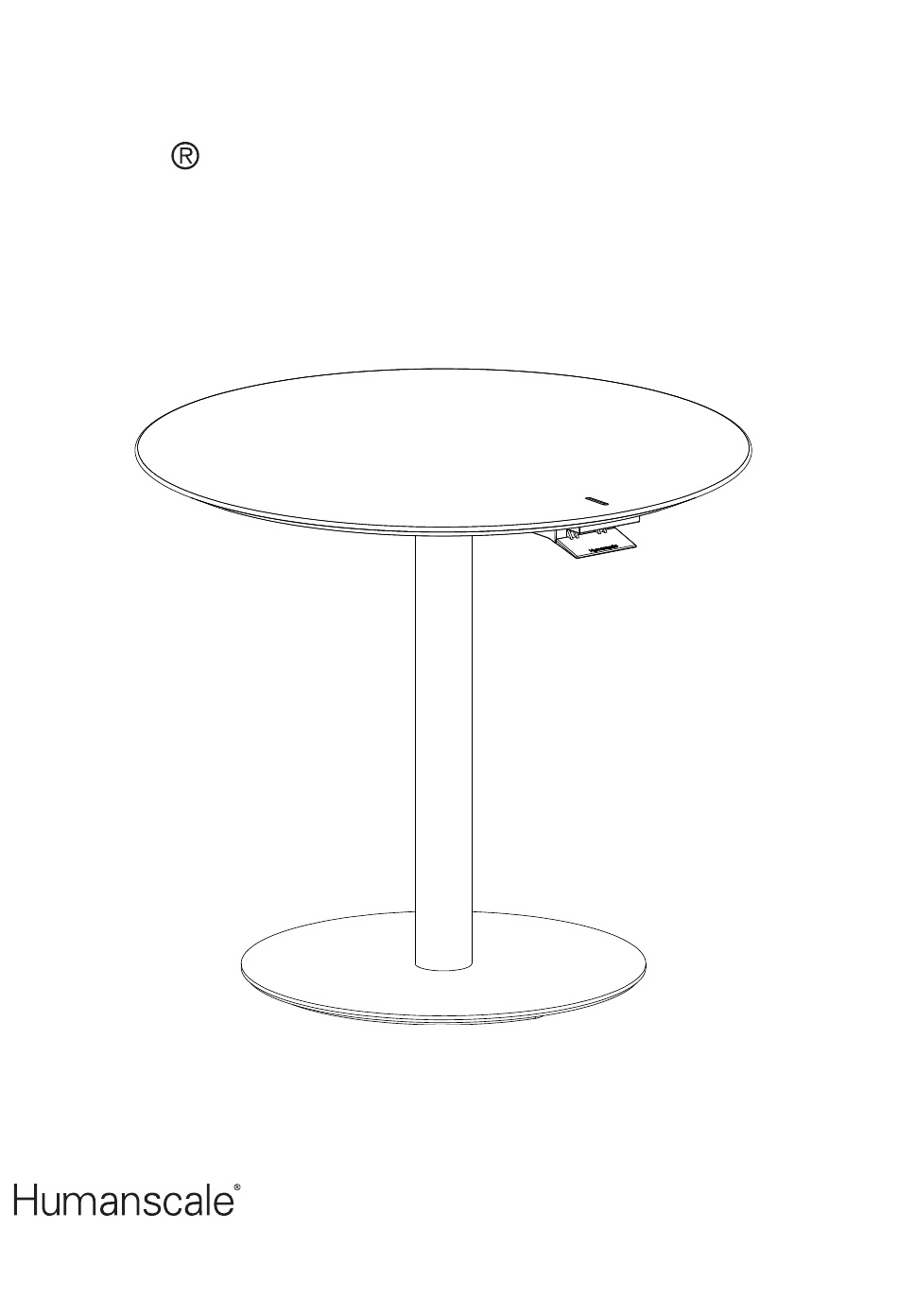

- Page 1 Float Gather Assembly Instructions North America: +1 800 400 0625 Europe: +353 (0)1 858 0910 Asia Pacific: +852 2581 0570...
- Page 2 Tools Required phillips head screwdriver Parts Included ① ② Round Work Surface Square Work Surface ③ ④ Mounting Plate Base Column with Height actuator ⑤ ⑩ 8x #10x19mm Screw Work Surface User Indicator ⑥ ⑪ 2x M3x0.5x16mm Screws ⑦ 2x Cable Clip ⑫...
- Page 3 IMPORTANT SAFETY INSTRUCTIONS • BEFORE MOVING THE TABLE, CLEAR OBJECTS FROM WORKSURFACE AND PLACE THE WORKSURFACE IN THE LOWEST POSITION. • Use two hands on the side of the table when raising and lowering the worksurface. • Do not raise or lower the table with open beverages on the worksurface. •...
- Page 4 Attach base plate to column Assemble the base plate onto the column with the M6x25mm (3) screws using the 4mm hex key provided. Attach mounting plate to column Secure the mounting plate onto the column with the M6x35mm (4) screws using the 4mm hex key provided.
- Page 5 Attach work surface to mounting plate Place the work surface on the mounting plate. Rotate the work surface so the arrow sticker aligns direction with the height actuator cable. Refer to the (bottom view) shown below. Assemble the work surface to the mounting plate with the #10x19mm (8) screws. Remove the arrow sticker and discard.
- Page 6 Attach cable clip Secure the cable with cable clip(s) using the #10x19mm screws installed in step 3. Hole location shown below. (Base not visible) (30” work surface) (30” work surface) (36” work surface) Adjustments Rotate cable adjuster barrel on the height actuator to give slack in the cable.
- Page 7 • Remplacer la surface de travail par une autre Instructions d’assemblage surface de travail. Français • Utiliser la table sur des plans inclinés, des plateformes, des sols rugueux, texturés ou Outils nécessaires inégaux, des escaliers ou des rampes. • Placer le produit à l’extérieur ou l’exposer aux éléments (vent, soleil intense, humidité...
- Page 8 Fixer la surface de travail à la plaque Instrucciones de armado de montage Español Placez la surface de travail sur la plaque de montage. Tournez la surface de travail pour Herramientas necesarias que l’autocollant de flèche soit aligné dans la direction du câble de l’actionneur de hauteur.
- Page 9 Instale la superficie de trabajo en la • Cambiar la superficie de trabajo por otra. placa de fijación • Utilizar la mesa sobre superficies inclinadas, plataformas o pisos con superficie áspera/ Coloque la superficie de trabajo en la placa de texturizada/irregular, escaleras o rampas.
