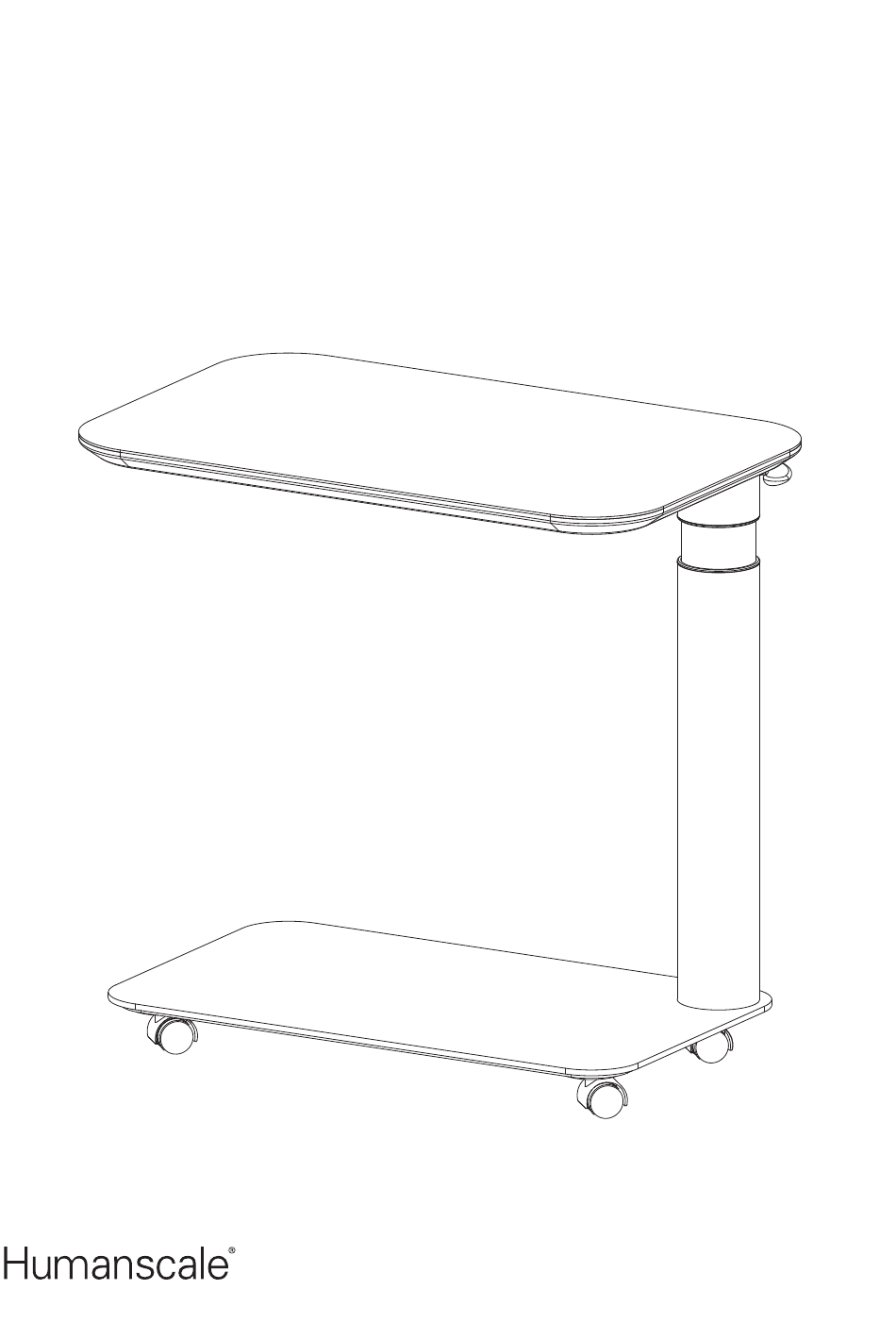

- Page 1 Float Micro Assembly Instructions North America: +1 800 400 0625...
- Page 2 Tools Required ① ② Philips Head Screwdriver 2.5mm Hex Key (Included) Parts Included ③ ④ ⑤ Top Plate Worksurface ⑥ ⑦ Lift Column Base Plate with Casters 4x Glides with Actuator ⑨ ⑧ ⑩ 14x ST4.2x16mm 4x M6x35mm 3x M6x25mm Worksurface Mounting Screws Top Plate Mounting Screws Base Plate Mounting Screws...
- Page 3 Assembly Instructions Attach the Lift Column Use the included Hex Key to secure the Lift Column to the Base Plate with 3x Base Plate Mounting Screws. ① Install the Glides (If Desired) Glides work best on carpet or soft surfaces. If Casters are desired, skip to Step 3. ②...
- Page 4 Attach the Top Plate Use the included Hex Key to secure the Top Plate to the Lift Column with 4x Top Plate Mounting Screws. ① Attach the Worksurface Use a Phillips Head Screwdriver to secure the Worksurface to the Top Plate with 14x Worksurface Mounting Screws.
- Page 5 Worksurface Adjustments Press the Actuator upwards to release it, and push up/down on the Worksurface to raise/lower it.
- Page 6 • Placer le produit à l’extérieur ou l’exposer Instructions de montage aux éléments extérieurs (vent, soleil excessif, Langue humidité permanente). • S’asseoir ou se tenir debout sur la surface de travail. Outils nécessaires • Se tenir debout ou monter sur le plateau de base.
- Page 7 • Desmontar la columna con el pistón. Instrucciones de montaje • Alterar el mecanismo interno. Idioma • Usar el producto en escaleras o rampas. • Modificar las rueditas o los patines, ya sea el componente o sus ajustes. Herramientas necesarias •...
- Page 8 For our terms and conditions please go to https://www.humanscale.com/about/legal-information/terms-conditions.cfm © 2024 Humanscale Corporation. The text and artwork are copyrighted materials. All rights reserved. The Humanscale mark and logo are trademarks of Humanscale Corporation and are registered in the United States and certain other countries.
