Installation Instructions
Lower duct assembly
1 Gasket between drive module and top plate (1)
2 Top plate (1)
3 Gasket between duct enclosure and top plate (1)
4 Gasket, top side (2)
5 Top side, cover (2)
6 Gasket, side of grill (2)
7 Grill (1)
8 Gasket between grill and mounting backplate (1)
9 Front cover plate (1)
10 Gasket, between duct enclosure and front cover plate (1)
11 Duct enclosure (1)
12 Gasket between duct enclosure and base cover plate (1)
13 Base cover plate (1)
– Screws, M5x12 (4)
– Torx screws, M5x16 (7)
– Nuts, M5 (36)

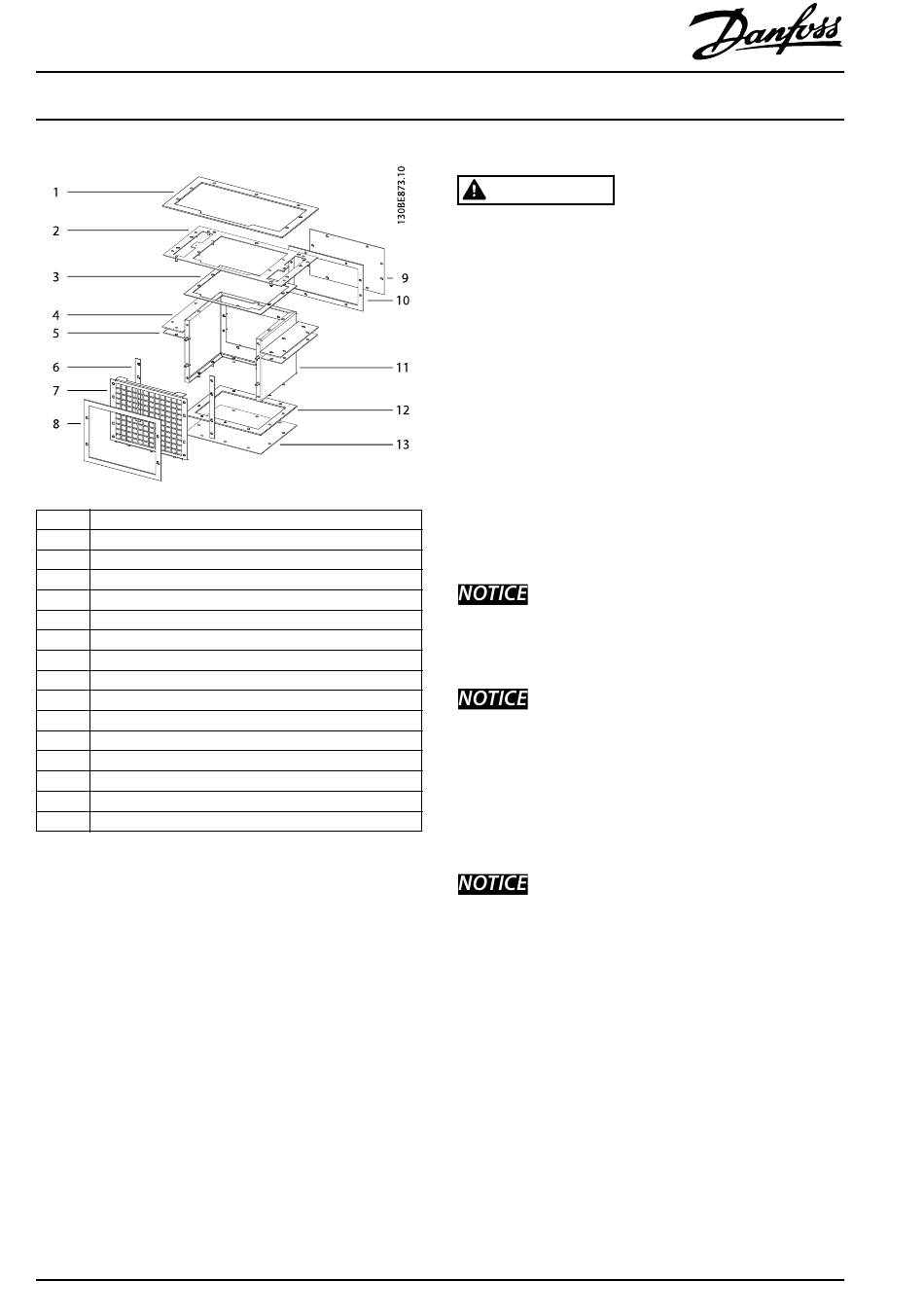

Illustration 1.2 Lower Duct Assembly for 1 Drive Module
2
In-back/Out-back Cooling Kit for VLT®
Parallel Drive Modules
VLT® Series FC 102, FC 202, and FC 302
Safety
WARNING

DISCHARGE TIME

The frequency converter contains DC-link capacitors, which
can remain charged even when the unit is off. High voltage
can be present even when the warning indicator lights are
off. Failure to wait 20 minutes after power has been
removed before performing service or repair work, could
result in death or serious injury.
•
•
•
•

Installation

If both a bus bar kit and a back-channel cooling kit are
being installed in the cabinet, install the back-channel
cooling kit first.
APPROVALS AND CERTIFICATIONS
This VLT
UL 508C compliant. These installation instructions describe
how to install the back-channel cooling kit which, if
followed, meet specific agency approvals and certifications.
Seek agency approvals or certifications apart from Danfoss if
designing and building other configurations.
APPLYING GASKETS
This kit contains gaskets to ensure a proper seal between
metal parts. Before adhering a gasket to a part, check that
the part matches the gasket and that no holes are covered.
Remove paper backing and place the sticky side on the part.
Danfoss A/S © 04/2016 All rights reserved.
Stop the motor.
Disconnect the AC mains, permanent magnet type
motors, and remote DC-link supplies, including
battery back-ups, UPS, and DC-link connections to
other frequency converters.
Wait 20 minutes for the capacitors to discharge fully,
before performing any service or repair work.
Measure the voltage level to verify full discharge.
®
Parallel Drive Modules back-channel cooling kit is
MI92J102
