Installation Instructions
Installing the Lower Duct Assembly to the Mounting Backplate
Refer to Illustration 1.6 for the following steps.
1. Remove the paper backing from the top plate gasket.
2. Place the lower duct assembly up against the drive module base, making sure the mounting holes line up.
3. Secure the lower duct assembly to the base of the drive module using 7 M5x16 screws. Torque to 5.1 Nm (45 in-lb).
4. Secure the grill on the lower duct assembly to the mounting backplate using 4 M5x12 screws. Torque to 5.1 Nm
(45 in-lb).
5. On the front side of the lower duct, install the front cover gasket (10) and then the front cover plate (9). Refer to
Illustration 1.4. Secure with 8 M5 nuts and torque to 5.1 Nm (45 in-lb).
6. Install the lower duct assembly for the next drive module.
1 Drive module
2 Gasket, slot
3 Cutout in drive module base that rests on the M10 screw
4 Gasket, base mounting plate, 38 mm (1.5 in)

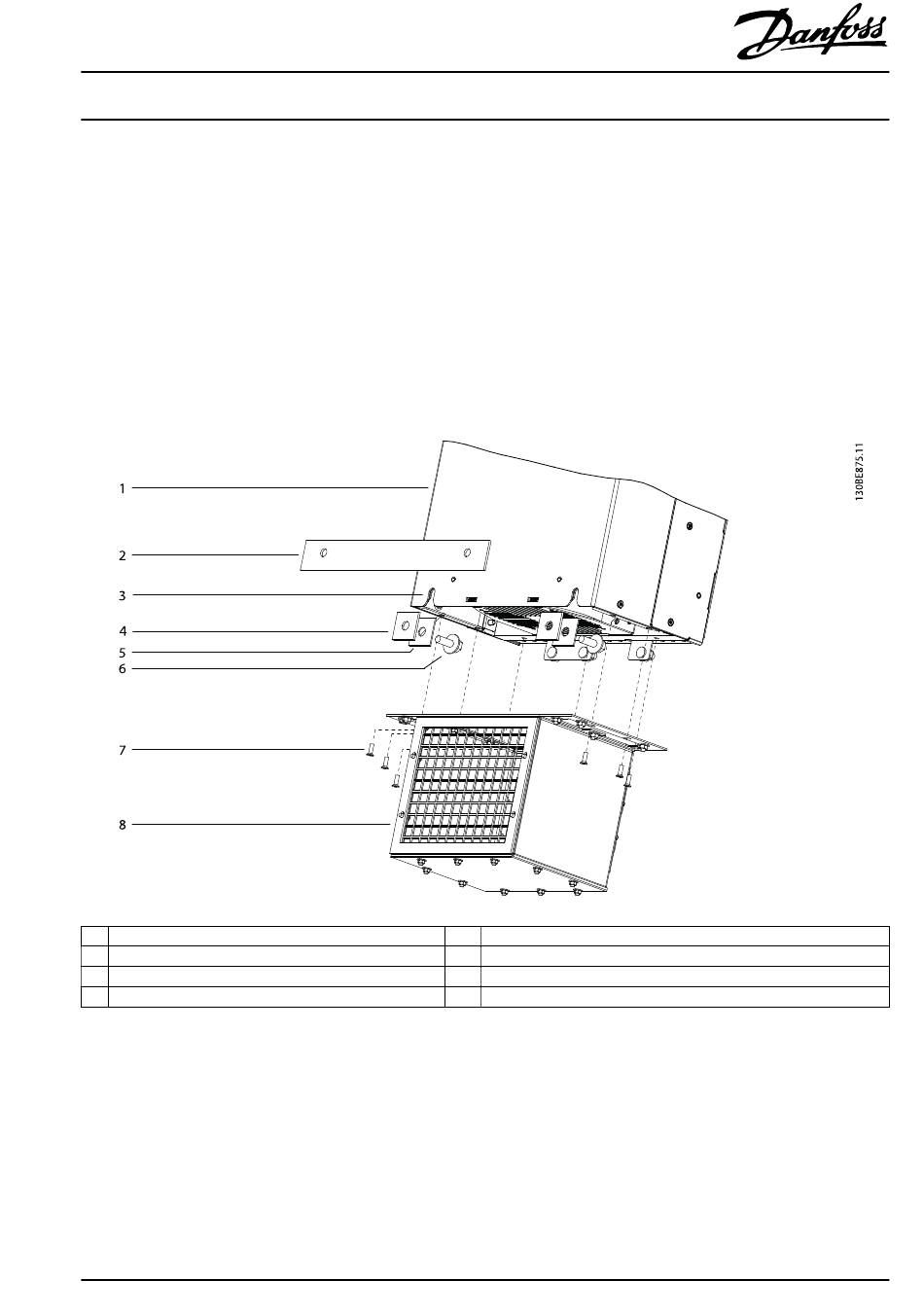

Illustration 1.6 Installing the Lower Duct Assembly
MI92J102
In-back/Out-back Cooling Kit for VLT®
Parallel Drive Modules
VLT® Series FC 102, FC 202, and FC 302
5 Base mounting plate, 38 mm (1.5 in)
6 M10 screw
7 M5x16 screw
8 Lower duct assembly
