Installation Instructions
D5h/D6h back panel gasket set
1
Gasket, mounting (Not supplied with kit)
2
Exhaust spacer (1)
(Used on pedestal units only)
3
Label (2)
4
Intake spacer (1)
(Used on pedestal units only)
5
Vent gaskets (4)
–
M5x18 screw/washer (8)
–
M5x16 Torx screw (4)
(Used on pedestal units only)

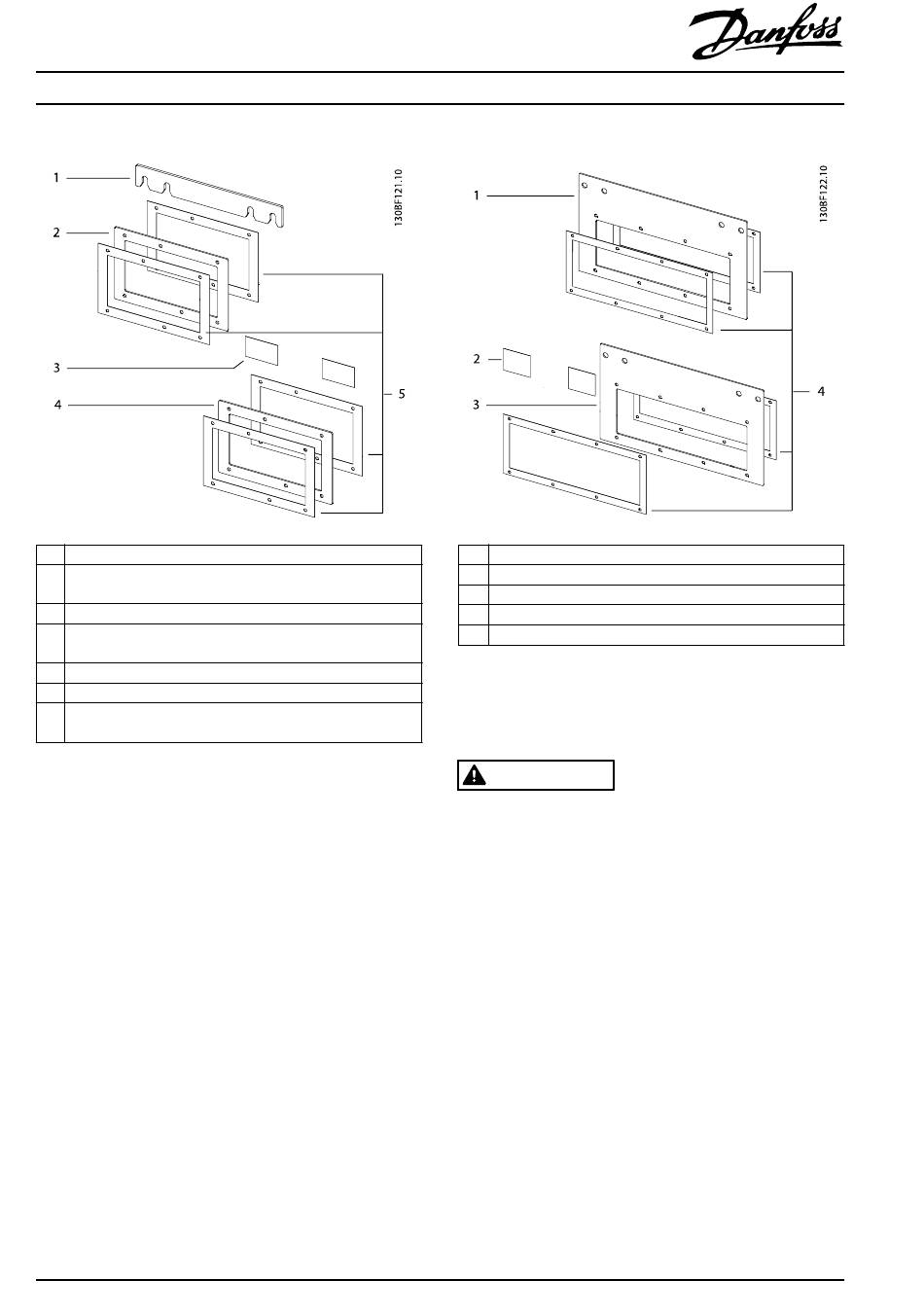

Illustration 1.4 Gasket Set, D5h/D6h Back Panel
2
In-back/Out-back Cooling Kit for D5h/D6h and D7h/D8h Enclosures VLT® Series FC 102, FC 202,
and FC 302
D7h/D8h back panel gasket set
1
Exhaust spacer (1)
2
Intake spacer (1)
3
Label (2)
4
Vent gaskets (4)
–
M5x18 screw/washer (16)
Illustration 1.5 Gasket Set, D7h/D8h Back Panel
1.4 Safety
WARNING
DISCHARGE TIME
The frequency converter contains DC-link capacitors, which
can remain charged even when the unit is off. High voltage
can be present even when the warning indicator lights are
off. Failure to wait 20 minutes after power has been
removed before performing service or repair work could
result in death or serious injury.
•
•
•
•
Danfoss A/S © 10/2016 All rights reserved.
Stop the motor.
Disconnect the AC mains, permanent magnet type
motors, and remote DC-link supplies, including
battery back-ups, UPS, and DC-link connections to
other frequency converters.
Wait 20 minutes for the capacitors to discharge fully.
Measure the voltage level to verify full discharge
before performing any service or repair work.
MI70F102
