Installation Instructions
In-back/Out-back Cooling Kit for VLT®
Parallel Drive Modules
VLT® Series FC 102, FC 202, and FC 302
Description
The in-back/out-back cooling kit is designed for the specific
®
VLT
HVAC Drive FC 102, VLT
AutomationDrive FC 302 D4h-size VLT
mounted in a Rittal TS8 enclosure. The kit directs air in from
and out of the back of the unit. See Illustration 1.1.
1
Top plate assembly
2
Base duct assembly
3
Mounting backplate
4
Back-channel airflow

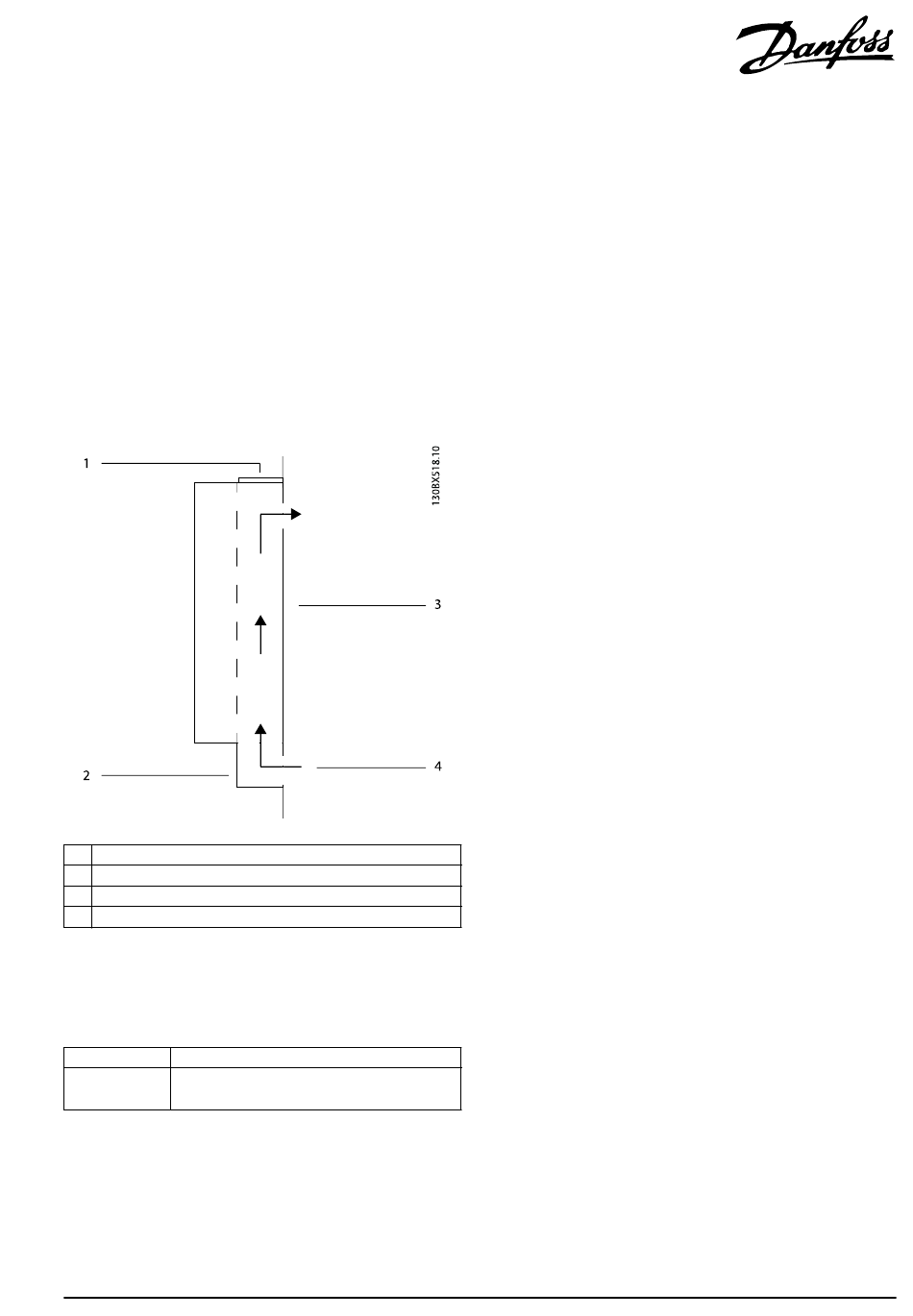

Illustration 1.1 Direction of Airflow with the Kit Installed
Kit Part Number
Part number
Kit description
176F6493
In-back/Out-back Cooling Kit for the VLT
Drive Modules (2-drive system)
Table 1.1 Part Number for the VLT
In-back/Out-back Cooling Kit
®
AQUA Drive FC 202, and VLT
®
Parallel Drive Modules
®
Parallel
®
Parallel Drive Modules
Danfoss A/S © 04/2016 All rights reserved.
Items Supplied
®
Top plate assembly
•
Top cover (1)
•
Gasket, top cover (1)
•
Gasket, cut out (1)
•
Screws, M5x12 (11)
Enclosure mounting assembly
•
Base mounting plate, 38 mm (1.5 in.) (2)
•
Gasket, base mounting plate (2)
•
Gasket, frequency converter exhaust vent (1)
•
Screws, M5x12 (11)
•
Nuts, M10 (4)
•
Gasket, enclosure exhaust vent (1)
•
Gasket, enclosure intake vent (1)
•
Torx screws, M5x12 (14)
MI92J102
