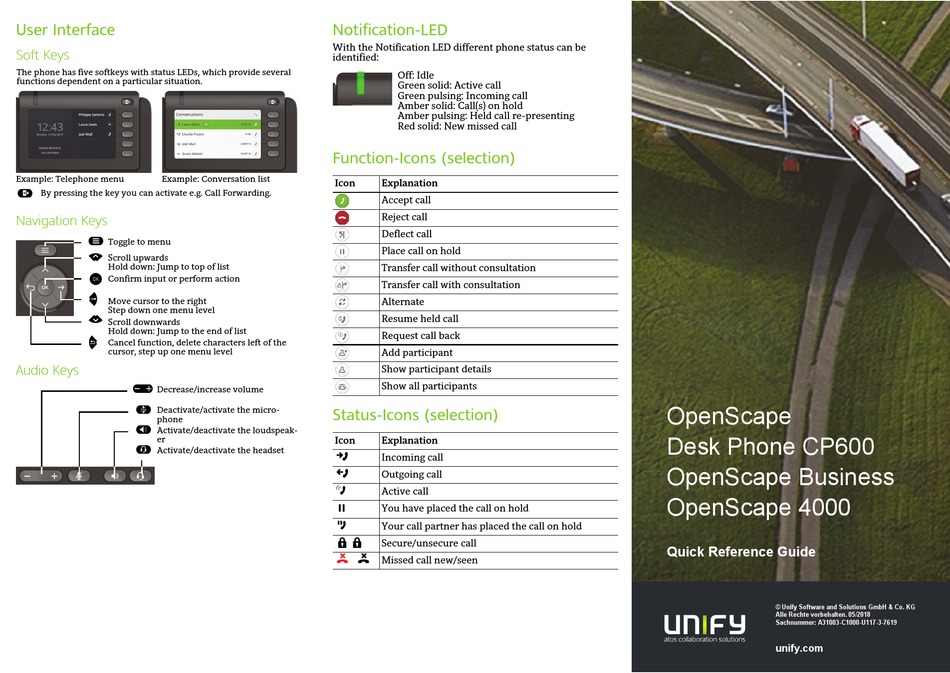

Unify OpenScape CP600 Quick Reference Manual

User Interface

Soft Keys
The phone has five softkeys with status LEDs, which provide several
functions dependent on a particular situation.
Example: Telephone menu Example: Conversation list
\
By pressing the key you can activate e.g. Call Forwarding.
Navigation Keys
@
Toggle to menu
μ
Scroll upwards
Hold down: Jump to top of list
Z
Confirm input or perform action
«
Move cursor to the right
Step down one menu level
€
Scroll downwards
Hold down: Jump to the end of list
^
Cancel function, delete characters left of the
cursor, step up one menu level
Audio Keys
"
Decrease/increase volume
;
Deactivate/activate the micro-
phone
:
Activate/deactivate the loudspeak-
er
.
Activate/deactivate the headset
Notification-LED
With the Notification LED different phone status can be
identified:
Off: Idle
Green solid: Active call
Green pulsing: Incoming call
Amber solid: Call(s) on hold
Amber pulsing: Held call re-presenting
Red solid: New missed call
Function-Icons (selection)
Icon Explanation
Accept call
Reject call
Deflect call
Place call on hold
Transfer call without consultation
Transfer call with consultation
Alternate
Resume held call
Request call back
Add participant
Show participant details
Show all participants
Status-Icons (selection)
Icon Explanation
c
Incoming call
b
Outgoing call
g
Active call
e
You have placed the call on hold
–
Your call partner has placed the call on hold
++
Secure/unsecure call
‰ ‰
Missed call new/seen
OpenScape
Desk Phone CP600
OpenScape Business
OpenScape 4000
Quick Reference Guide
© Unify Software and Solutions GmbH & Co. KG
Alle Rechte vorbehalten. 05/2018
Sachnummer: A31003-C1000-U117-3-7619
unify.com
