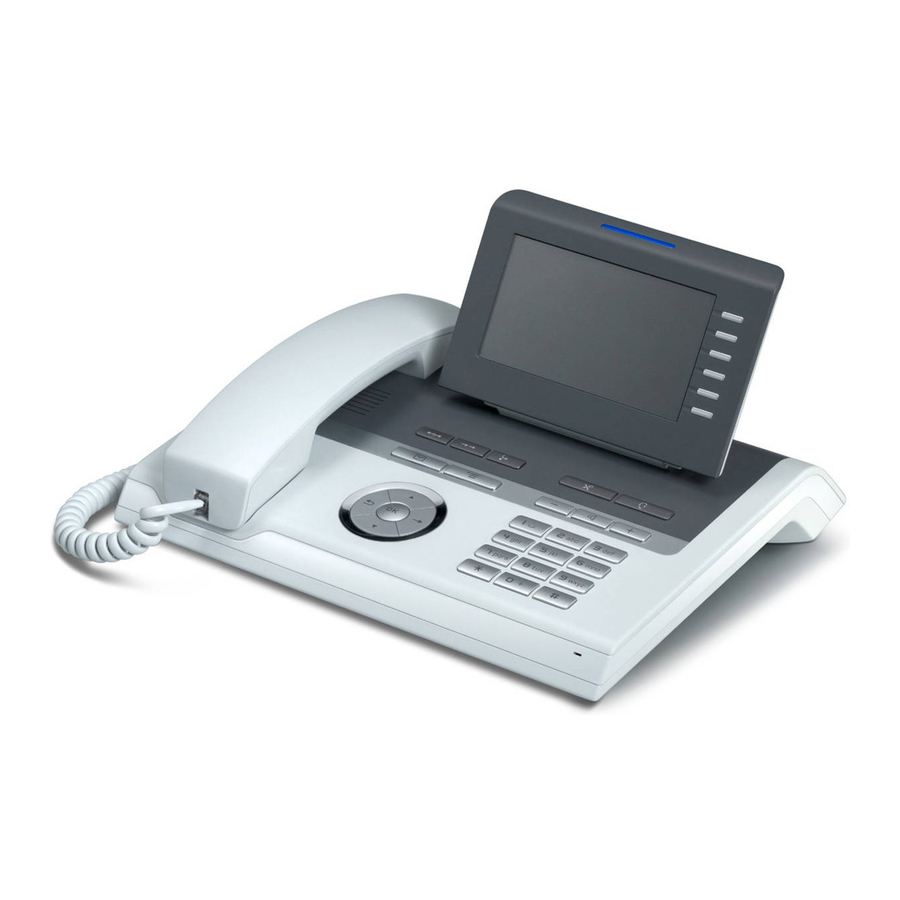

Unify OpenStage 40 HFA/40 T, OpenScape Business/Office, HiPath 3000 Quick Reference Card

Unify OpenStage 40 HFA/40 T, OpenScape Business/Office, HiPath 3000 Quick Reference Card

Also See for OpenStage 40 HFA:

Advertisement

Unify OpenStage 40 HFA/40 T, OpenScape Business/Office, HiPath 3000 Quick Reference Card

Icon Overview

Icon Overview

Display Icons in Idle State

Icon Explanation
You have received one or more new messages
One or more new entries have been added to the call log
Call Forwarding is activated for all calls
Ring tone is deactivated
Remote maintenance is activated
Do not disturb is activated
Phone lock is activated
A mobile user is logged on to the telephone

Display Icons during a Call

Icon Explanation
Call is active
Call has been disconnected
You have placed the call on hold
Your call partner has placed the call on hold
Secure voice connection
Insecure voice connection

Key Layout and Operation

Function Keys

Function Keys

End (disconnect) call
Open redial list
Activate/deactivate call forwarding
View messages
Settings/Application menu

Audio Keys

Audio Keys

Turn headset on/off
Turn mute on/off
Decrease volume
Increase volume
Activate/deactivate loudspeaker

5-Way Navigator

5-Way Navigator

Press key:

  • Scroll upwards

Hold down:

  • Jump to beginning of list

Press key:

  • Cancel function
  • Delete character
    left of cursor
  • Go up a menu level

Press key:

  • Scroll downwards

Hold down:

  • Jump to end of list

Press key:

  • Confirm input
  • Perform action

Press key:

  • Call up the context menu
  • Go down a level

Open Context Menu

If the context menu isn't shown, you can access the context menu by pressing the right arrow key on the 5-Way Navigator.
Open Context Menu
The left arrow key escapes the selected option or function.

Using your OpenStage

Place a Call

  • Lift handset and dial number, or
  • dial number and lift handset, or
  • for handsfree call: dial number.

If en-block dialing is activated (like a cell phone), press minatory.

Answer a Call

  • Lift handset, or
  • for handsfree call: press .

End a Call

  • Hang up, or
  • to end a handsfree call: press .

Use the headset

  • Place a call: dial number.
  • Answer or end a call: press .

Redial a Number

  1. Lift handset to use handset mode.
  2. Press and press .

Hold or Retrieve a Call

  • During a call select "Enquiry" in the context menu or press "Consultation" key and press
  • To retrieve a call: select "Return to held call" in the context menu and press .

Make a Conference Call

  1. During a call with party A, select "Start conference?" in the context menu and press .
  2. Enter the phone number for party B and press .
  3. Once connected with party B, select "Conference?" in the context menu and press .

You are now connected in a conference with parties A and B.

Transfer a Call

Transfer without consultation:

  1. During a call with party A, select "Start transfer" in the context menu and press .
  2. Enter the phone number of party B and press .
  3. When the phone starts to ring, select "Transfer" and press.
  4. Hang up.

Transfer with consultation:

  1. During a call with party A, select "Enquiry" in the context menu and press .
  2. Enter the phone number of party B and press .
  3. Announce the call to party B and hang up.

Using your OpenStage

Turn "Call Forwarding" on or off for all Calls

For turning on:

  1. Press .
  2. Select "1=all calls" and press .
  3. Enter the destination phone number and press .
  4. Select "Save entry" and press .

The destination number is shown in the display and the key LED lights up.

For turning off:

  1. Press . The key LED stops illuminating.

Dial from the Call Log

  1. Press .
  2. Select the desired phone number and press .

Use Mute during a call

  • Press for turning the microphone on or off.

Save a Function to a Key

  1. Press and hold the desired programmable key until a popup appears.
  2. Select "Assign telephony function" and press .
  3. Select "Change feature" and press .
  4. Select "Feature function" and press .
  5. Select desired function and press .
  6. In some cases: enter additional parameters and press .

Save a Phone Number to a Key

  1. Press and hold the desired programmable key until a popup appears.
  2. Select "Assign telephony function" and press .
  3. Select "Change feature?" and press .
  4. Select "Destinations" and press .
  5. Select "Repdial key" and press .
  6. Enter the desired station number and save entry.
  7. Select "Key label" and press .
  8. Enter the desired key label.

Dialing a Number from the internal Phonebook

The internal directory contains all station numbers and system speed-dial numbers assigned to a name. Contact your administrator to find out if one was configured for your system.

  1. Press and select "Phonebook".
  2. Press or to scroll to next or previous entry. Or enter the name you want to find, or just the first few letters, using the alphanumeric keypad.
  3. Press to dial.

Further helpful features of your OpenStage Phone

Your OpenStage provides much more helpful features. See below a small selection with short descriptions. Detailed information please find in the respective operating instructions.
Further helpful features of your OpenStage Phone

Mobility (HFA only)

You can move your phone user interface with most of its functions and properties (phone number, key assignment, authorization, phonebook) to another phone.
The "Home User" is deactivated and you may use this phone as "Mobile User" (Mobile HFA) until you log off. Phone connections are transferred network-wide.

Retrieving Voicemail Messages

Depending on your communication platform and its configuration, you can use this application to access received callbacks and messages from OpenScape Xpressions.
If your system is appropriately configured, you can call the voice mailbox directly and immediately play back the stored messages.

Leave an Advisory Message

You can leave an advisory messages on the internal caller's phone display which wish to contact you during your absence.
Select a message of the set of predefined messages or define your own one. You reach the function by pressing g key.

Send a Message

You can send short text messages to individual phones or groups of phones.
Select a message of the set of predefined messages or define your own one. You reach the function by pressing g key.

unify.com
