1.2.3 PUSH-UP COMBUSTION CHAMBER DOOR IN
THE POSITION INSTALLED
Conversion of a non-self-locking combustion chamber door to a
self-locking combustion chamber door. Carry out the fireplace inserts
with two weight shafts in the same procedure on both sides!

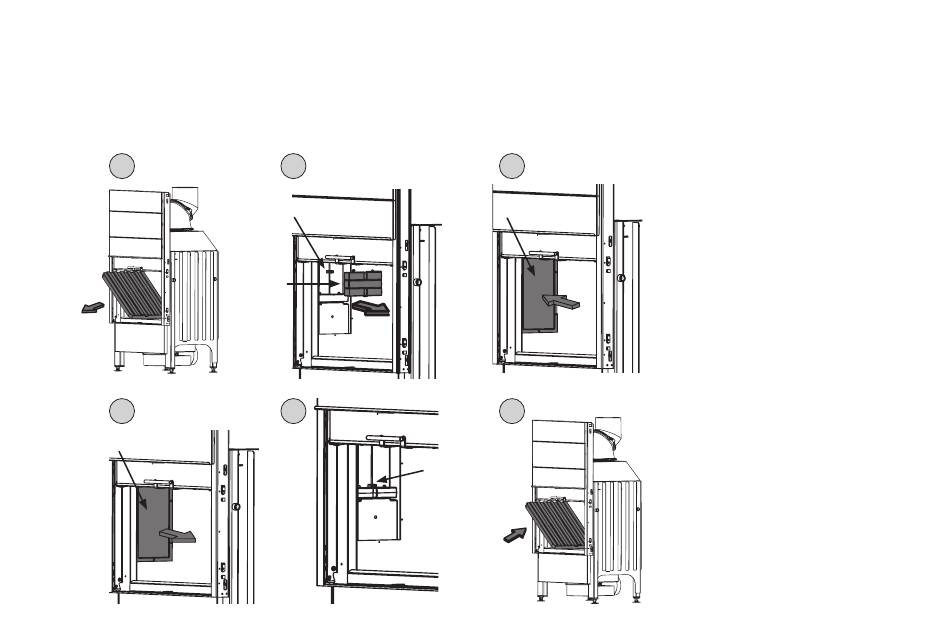

1
Counter
balance
2
Service hatch
3
Retaining Washer
4
Retaining Washer
5
Service hatch
6
GB 8
1. Remove the wall cladding.
2. Remove the service hatch.
3. Release the locking ring (Allen key 2.5).
Remove the necessary counter-weights.
The number of weights to be removed
must be selected in such a manner that
the door closes slowly with a constant
speed, check the function.
4. Tightening the locking ring (Allen key 2.5).
5. Mount the service hatch.
6. Reinsert the wall cladding.
