Operating Manual

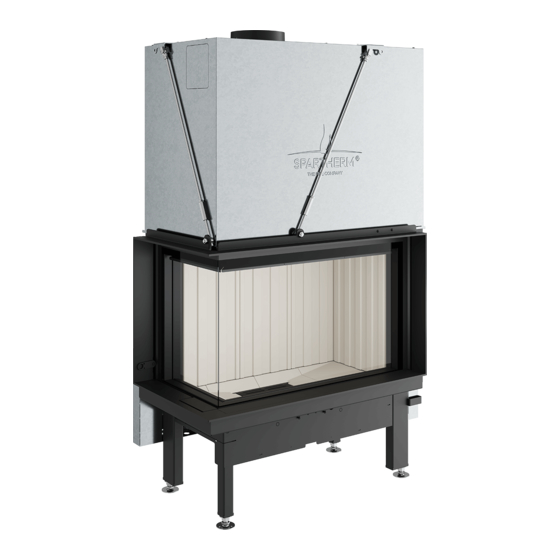

PremiumEdition | Wood burning fireplace

Advertisement

Table of Contents
loading

Related Manuals for Spartherm PremiumEdition

Summary of Contents for Spartherm PremiumEdition

  • Page 1 Operating Manual PremiumEdition | Wood burning fireplace...
  • Page 2 PREFACE - QUALITY PHILOSOPHY You have decided in favour of a SPARTHERM fireplace - thank you for your confi- dence in our company. In a world of surplus and mass production, our company stands for the values expressed by our owner, Gerhard Manfred Rokossa: “High technical quality combined with contemporary design and service to our cus-...

  • Page 3: Table Of Contents

    CONTENTS OF OPERATING INSTRUCTIONS 1. Certified quality 4.5.4 Glass cleaning of standard fireplaces with 1.1 Closing function of the fire door round or angled vertically sliding doors 1.1.1 Conversion of closing function on the fire door 4.5.5 Glass cleaning of standard fireplaces with 1.2 The Clean Air Act 1993 and Smoke Control Areas angled doors (the 3-sided Arte model) 2.

  • Page 4: Certified Quality

    Our fireplace inserts are not suitable for continuous fires, i.e. ones where regular adding of fresh fuel is not required. Without exception, Spartherm fireplace inserts must be operated in a closed manner (intended use), i.e. with the exceptions of adding fuel or cleaning, the Naturally, our fireplace inserts are subject to our own in-house quality criteria, doors on the fireplace insert must remain closed at all times.

  • Page 5: Conversion Of Closing Function On The Fire Door

    Spartherm appliances that have been recommended as suitable for use in Folding fireplace inserts with self-closing fire doors can be converted into smoke control areas are identified by a suffix P3 in the model name.

  • Page 6: Types Of Wood

    2.1.2 T YPES OF WOOD • The wood should be stored in a protected, dry and well ventilated place. • If the wood is too wet, it will not provide such effective heating, the chim- ney will soot up and the window will soil more rapidly. The different types of wood all contain roughly the same amount of heat •...

  • Page 7: Burning

    • The enclosed heat-resistant glove is only intended to provide protection Wood feed quantity based on the example from the heat when using the operating handle, the ‘cold hand’ and the of the Varia 1V-51-4S Nominal heat output 11.0 kW damper lever.

  • Page 8: Heating And Firing

    • During this first burn, unpleasant odours may be produced. This is because the anti-corrosion coating inside the combustion chamber is burning into the steel surface. This is not a health hazard, but it does smell unpleasant. - With Premium inserts push the door upwards for Ensure sufficient ventilation in the installation space.
  • Page 9 8. Once the upper, thinner firewood has been burned completely, and the fire reaches down to the next layer, you must reduce the flow of combustion air. Two or three starting aids (e.g. wood wool impregnated with wax) are place between the layers of initial firewood.

  • Page 10: Firing/Adding Wood

    • When adding fresh firewood, completely cover the hot embers. • Depending on how much firewood you add, you may move the actuating lever completely to the right for a few minutes until that fresh firewood is 11. Provided that there are sufficient hot embers, burning brightly.

  • Page 11: Operation With Open Combustion Chamber Door

    created. Obtain the advise of your fireplace installer or chimney sweep. area opening, and no objects made of combustible materials must be set • Once the fire has started, shift the air supply lever as far to the right up (also refer to chapter ‘10 Technical Data’ in the related installation (maximum air flow) as necessary .
  • Page 12 In addition, this area, starting from the direct radiant area, from the effective combustion chamber opening must be protected out to 300 mm to left and right (see Fig.). min. 500 resp. bzw. H+300 The figure illustrates a typical installation situation showing Width of opening a Varia 1V-51-4S and this applies for each fireplace unit.

  • Page 13: Special Precautions For The Fire Protection Of Adjacent Components Constructed Of Flammable Materials

    4.4.2 SPECIAL PRECAUTIONS FOR THE FIRE PRO- 1 cm TECTION OF ADJACENT COMPONENTS CON- ( S ) STRUCTED OF FLAMMABLE MATERIALS 1. A distance of at least 5 cm has to be maintained between built-in furniture (e.g. cupboards) and the fireplace cladding. 2.

  • Page 14: Glass Cleaning Of Premium Fire Places (2-Sided)

    4.5.1 LASS CLEANING OF PREMIUM FIRE PLACES 4.5.2 GLASS CLEANING OF PREMIUM FIRE PLACES (2-SIDED) (3-SIDED) 1. Push door completely downwards! 1. Push door completely downwards! 2. Unlock A+B completely by moving the levers. 2. Unlock A+B completely by moving the levers. 3.

  • Page 15: Vertically-Oriented Sliding Doors

    4.5.3 CLEANING OF VERTICALLY-ORIENTED SLIDING Linear 4S or Prestige versions:: DOORS 1. With one hand on the door handle, gently tip the fire door downwards, at the same time supporting it with the other hand. Cleaning should be carried out when cold and in accordance with the following versions.

  • Page 16: Round Or Angled Vertically Sliding Doors

    4.5.4 CLEANING OF ROUND OR ANGLED VERTICALLY Closing the firebox door: SLIDING DOORS 1. Close the firebox door carefully and keep it lightly pressed in. 2. Move the ‘cold hand’ to the right-hand side of the door and, positioning it Close the firebox door (pull it fully downwards).
  • Page 17 3. Unlock the side door locks by hand or with the help of the ‘cold hand’ using 2. Lock the top and bottom door locks by hand or with the help of the ‘cold a turning movement, paying attention to the sequence of actions! hand’.

  • Page 18: Service And Maintenance

    5. SERVICE AND MAINTENANCE 5.4 CLEANING AND MAINTENANCE The fire area, the hot gas draught and the flue should be cleaned at regular CAUTION! Never clean your fireplace insert while it is hot or warm. intervals. Specifically, whenever there is any extended interruption in opera- tion of the fireplace, ensure that the chimney is not blocked.

  • Page 19: Smartclose Door Lock

    5.5 SMART CLOSE DOOR LOCK Fireplace inserts with SmartClose door locking mechanisms must be lubricated at regular inter vals to assure prob- lem-free operation (once per heating season). Upon delivery, the package includes a tube of special stove lubricat- ing compound. This lubricating compound is applied to facilitate ease of movement of heavy fire doors, and to prevent noise caused by...

  • Page 20: Help

    6. HELP Problem Cause, explanation Chapter, note Solution Glass becomes You did not use the correct combustion materials. Use natural, bulky bits of timber compliant with BImSchV §3 (German legislation). sooted heavily, Fill the fireplace with a small amount of fuel and light it with the damper fully open The ambient temperature is above about 15°C.
  • Page 21 Problem Cause, explanation Chapter, note Solution Smoke escapes Air-extracting equipment is switched on, e.g. kitchen extractor fan. Ensure that all air-extracting equipment is switched off. when adding wood Wood added prematurely, on top of unburned wood. Do not add fresh firewood until there is a bed of hot embers in the combustion chamber. The chimney is not free.

  • Page 22: General Warranty Conditions

    Spartherm produces high-quality products according to state-of-the-art technology. The materials used have been carefully selected and - like the Spartherm offers a 6-month warranty as of the date of purchase by the production process - are subject to on-going quality control. Specialist knowl- initial customer for edge is required when assembling and installing the products.

  • Page 23: Warranty Extension To 10 Years For The Initial Purchasers

    This is done via: are not broken. a) Registration within 24 months as of the date of purchase on the Spartherm The surfaces: homepage; go to www.spartherm.com/Service/Extended warranty and •...

  • Page 24: The Warranty Becomes Void Upon

    Spartherm is entitled consequential damage of any kind or other claims for damages. This restriction to deliver a similar product. Transport / dispatch to and from Spartherm or does not extend to the mandatory statutory provisions according to which the to the respective dealer, disassembly, reinstallation of the product and all manufacturer is liable above and beyond the voluntary warranty declaration.

  • Page 25: Place Of Fulfilment, Jurisdiction And Applicable Law

    International Sale of Goods. The place of performance for obligations arising from this warranty is Melle, Germany. As far as this is permitted, the place of jurisdiction is the headquarters of Spartherm Feuerungstechnik GmbH, Melle. We reserve the right to make alterations to the technical data contained herein and accept no liability in respect of any errors made.

  • Page 26: Notes

    NOTES GB 26...
  • Page 27 NL Uw vakhandelaar | PL Państwa sprzedawca | РУС Ваш дилер Spartherm Feuerungstechnik GmbH · Maschweg 38 · D-49324 Melle Phone +49 (0) 5422 94 41-0 · Fax +49 (0) 5422 9441-14 · www.spartherm.com Service-Hotline 0180 594 41 94 14 Cent/Minute inkl. MwSt. aus den deutschen Festnetzen,...
