7.1 FLOORS AND ATTACHMENT WALLS

11
13
12
10
14
16
15

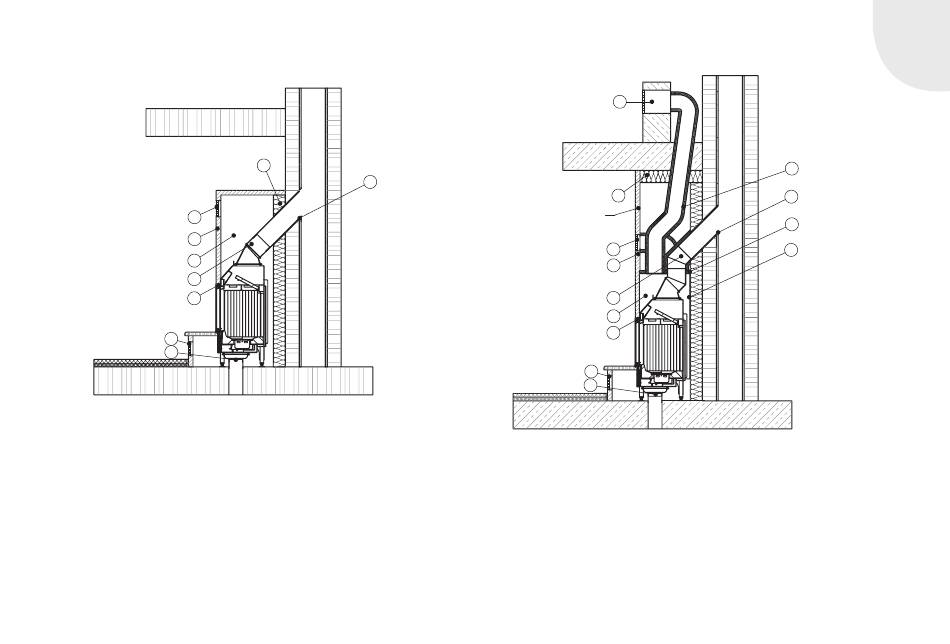

The figure shows the installation situation using the Varia
1V-51-4S as an example and applies as an example for all
8 Insulation of the heating chamber according to the heat insulation technical data.
9 If necessary, wall sleeve with sealing cord
10 Exhaust pipe (connecting piece)
11 Supply air grille (hot are outlet) The position must be selected in such a manner,
that a distance of 500 mm is between the top edge of the grille and the ceiling..
12 Heating chamber
13 Chimney system cladding made from non-combustible construction material
14 Mounting frame with insulation strips
15 Separate combustion air connection
16 Air circulation grille (cold air supply)
8
9
fireplace inserts.
GB 21

7.2 FLOORS, ATTACHMENT WALLS AND CEILING

21
8
The fireplace cladding
must be suitable for heat
dissipation (active surfaces or
convection air openings)!
11
13
17
12
14
16
15
The figure shows the installation situation using the Varia 1V-51-4S as
an example and applies as an example for all fireplace inserts.
8 Insulation of the heating chamber all-round
according to the heat insulation technical data.
9 If necessary, wall sleeve with sealing cord
11 Supply air grille (hot are outlet) The position
must be selected in such a manner,
that a distance of 500 mm is between the top
edge of the grille and the ceiling.
12 Heating chamber
13 Chimney cladding made from non-combustible
construction material
14 Mounting frame with insulation strips
15 Separate combustion air connection
18
9
20
19
16 Air circulation grille (cold air supply)
17 Insulated flue gas pipe (connecting piece)
with at least 3 cm thick dimensionally stable
mineral wool
18 Insulation of the connecting lines with
at least 3 cm thick dimensionally stable
mineral wool
19 Convection air housing
20 Top insulation of the convection air housing
min. 3 cm
21 Observe the air return!
