min. 500
or
bzw. H+300

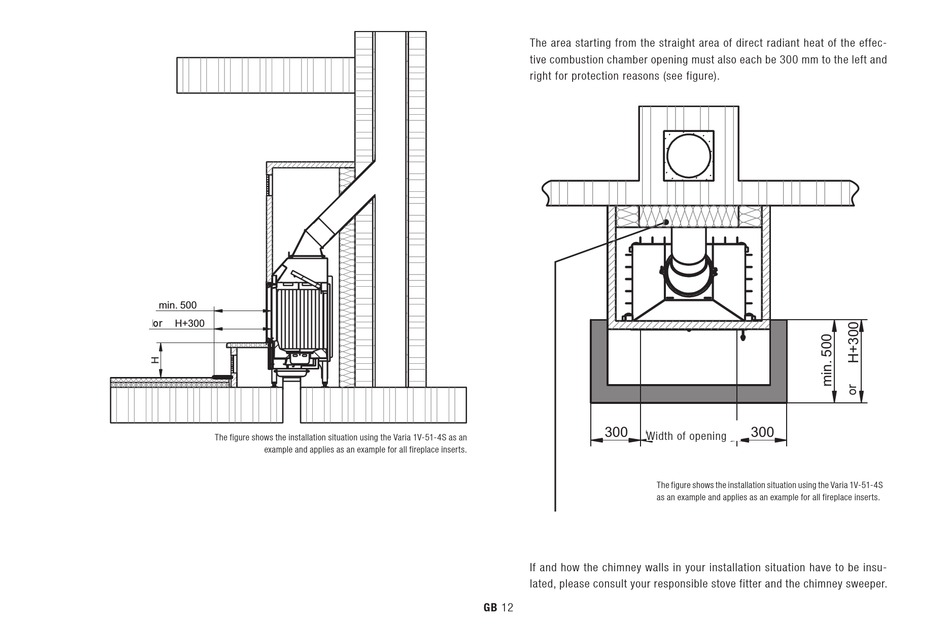

The figure shows the installation situation using the Varia 1V-51-4S as an
example and applies as an example for all fireplace inserts.
The area starting from the straight area of direct radiant heat of the effec-
tive combustion chamber opening must also each be 300 mm to the left and
right for protection reasons (see figure).
300
Öffnungsbreite
Width of opening
The figure shows the installation situation using the Varia 1V-51-4S
as an example and applies as an example for all fireplace inserts.
If and how the chimney walls in your installation situation have to be insu-
lated, please consult your responsible stove fitter and the chimney sweeper.
GB 12
300
