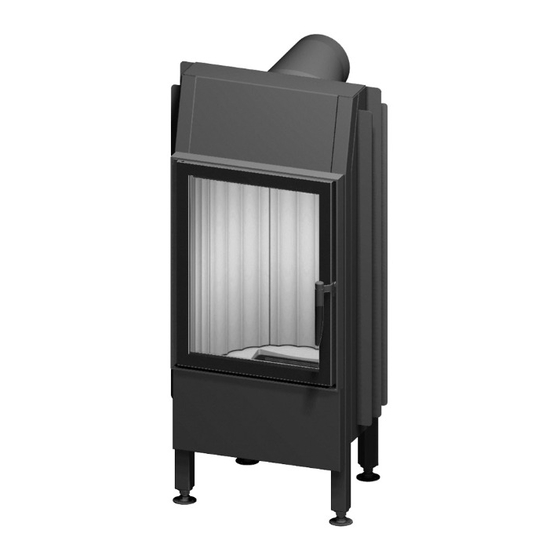

Page 1: Installation Instructions
Installation Instructions Fireplace Inserts... - Page 2 PREFACE – QUALITY PHILOSOPHY You have decided in favor of SPARTHERM fireplace inserts. Thank you very much for your trust in our company. In a world of excess and mass production, our company stands for the values expressed by our owner, Mr. Gerhard Manfred Rokossa: „High technical quality combined with contemporary design, and service to the...
-
Page 3: Table Of Contents
OVERVIEW INSTALLATION INSTRUCTIONS // SPARTHERM FIREPLACE INSERTS 1. General notes 5.8. Connection piece 1.1. Certified quality 5.9. Heat dissipation 1.2. Installation steps 5.5. Special measure for fire prevention for hardwood mantels 5.9.1. Warm air heating systems 2. Basic requirements for setting up an open fireplace 5.9.2 Closed fireplace units... -
Page 4: General Notes
13229 „Fireplaces for Solid Fuel.“ parts are not approved by SPARTHERM. Without express permission, any modification or change in the fireplace will render the guarantee and oper- You must also comply with national and regional specifications, standards, ating permit invalid. -
Page 5: Installation Steps
A = Fireplace door, manual closure 1.2. INSTALLATION STEPS • Open operation may be possible • Multiple use of chimney prohibited 1. The feet are included with the device for transport purposes. We also recommend operating Type A devices with closed viewing panes. 2. -
Page 6: Locations And Combustion Air Supply
Open fireplaces may not be set up in rooms or apartments in which the ven- 3. LOCATIONS AND COMBUSTION AIR tilation system or forced-air heating system is ventilated with fans unless SUPPLY the open fireplace has been inspected and determined to function safely. 3.1. -
Page 7: Combustion Air Flue
Open fireplaces with SPARTHERM fireplace inserts may have a cutoff device in firedog above the floor plus 20 cm (but at least 30 cm). If a log guard with the vent. -
Page 8: Special Precautions For Fire Protection Of Floor Coverings Near The Fireplace
5.1.1. SPECIAL PRECAUTIONS FOR FIRE PROTECTION OF FLOOR COVERINGS NEAR THE FIREPLACE A spark protection apron is required (e.g. to cover carpets, parquet…); a fireproof floor covering made of non-flammable material (natural stone…) must be put in place. GB 8... -
Page 9: Load-Bearing Structural Elements Made Of Concrete And Reinforced Concrete
5.2. LOAD-BEARING STRUCTURAL ELEMENTS MADE OF CONCRETE AND REINFORCED CONCRETE 5.2.1. SPECIAL MEASURES FOR FIRE PREVENTION OR ADJACENT, Open fireplaces must be installed to that no load-bearing structural ele- ments made of concrete or reinforced concrete are located within 30 cm COMBUSTIBLE STRUCTURAL ELEMENTS of the warm air exit points at the sides and lower than a height of 50 cm 1 Between built-in furniture and the fireplace facing, a distance of at least 5 cm has to be... -
Page 10: Thermal Insulation Material Thickness
5.4.1. THERMAL INSULATION MATERIAL THICKNESS 5.4.2. STUD WALL FOR WALLS THAT NEED PROTECTION For information on the thermal insulation material thickness relevant to your fireplace insert, see „Technical Data“ on page 15. • When installing the open fireplace on a wall that needs protection, a stud wall is required. -
Page 11: Connection Piece
5.8. CONNECTION PIECE 5.5. SPECIAL MEASURE FOR FIRE PREVENTION FOR HARDWOOD MANTELS The neck tube for the connecting piece is on the flue dome of the fireplace insert. Connect to the chimney directly if possible. The fireplace insert can 1 The beam has to be located outside of the radiation area. be connected either vertically or horizontally. -
Page 12: Warm Air Heating Systems
• The size of the oven, i.e. the size of the heat dissipating surface, should 5.9.1. WARM AIR HEATING SYSTEMS be determined depending on the heat output and heat requirement. • The facing elements must be selected to meet the higher standards. For fireplace units that use convection to dissipate heat (wood-burning •... -
Page 13: General Installation Notes
For combustible construction materials, floor (wooden ceiling beams), ceiling and/or partition walls Important note: The fireplace insert may not be installed on floating screed. Install it on bonded screed only. Spartherm fireplace insert with Spartherm fireplace insert with horizontal flue gas pipe outflow... -
Page 14: Cleaning Open Fireplaces
For connection to the side, we carry a 90° flue gas dome and we can provide a 0° flue gas dome for flow-enhancing connection as well. 9.2. SPARTHERM FIREPLACE INSERT WITH SLIDING DOOR 9.3. CARRYING AIDS Completely remove the transport safety device before installing. Check the sliding door before the fireplace insert facing is installed. -
Page 15: Technical Data For Fireplace Insert
10. TECHNICAL DATA FOR FIREPLACE INSERT Mini Mini Mini Mini Mini Mini Mini Speedy R1V 51 R1V 51 R1V / R1Vh R1V / R1Vh Z1 NSHF S / Sh 1V / 1Vh 51 NSHF 57 NSHF Norminal heat output (kW) (closed structure) 10,0 Thermal output range (kW) 4,5 - 6,8... - Page 16 Speedy Speedy Speedy Speedy Speedy Varia Varia Varia 1V / 1Vh 51 1V / 1Vh 51 1V / 1Vh 57 1V / 1Vh 57 1V / 1Vh 57 1V / 1Vh 51 1V / 1Vh 51 1V / 1Vh 57 NSHF (Export) NSHF...
- Page 17 Varia Varia Varia Varia Varia Varia Varia Varia Varia Varia Varia Varia Varia Varia 1V / 1Vh 57 1V / 1Vh S 1Vh 45 1V 100h 1V 100h AS-2 / ASh-2 AS-2 / ASh-2 AS-2 / ASh-2 Ah-2 Bh S (Export) (Export) NSHF...
- Page 18 Varia Varia Varia Varia Varia Varia Varia Varia B-120h M-60h M-80h M-100h M-60h GET M-60h GET M-80h GET M-80h GET + DH + DH Norminal heat output (kW) (closed structure) 15,0 11,0 Thermal output range (kW) 10,5 - 19,5 4,9 - 9,1 6,3 - 11,7 7,7 - 14,3 5,6 - 10,4...
- Page 19 Varia Varia Arte Arte Arte Arte Arte Arte Mini Varia Varia Varia Varia Varia AS-FD-2 / AS-FD-2 / M-100h GET M-100h GET F-1V / F-1Vh F-1V / F-1Vh F 1V / F 1Vh S-FDh FD / FDh AS-FD-2 / A-FDh AS-FDh-2 AS-FDh-2 + DH...
- Page 20 Varia Arte Arte Arte Arte Mini Mini Varia B-FDh F-FD / F-FDh F-FD / F-FDh F-FD / F-FDh X-FDh 2L / 2R 2LRh 2L-55 / 2R-55 NSHF (Export) Norminal heat output (kW) (closed structure) 11,0 11,0 Thermal output range (kW) 7,7 - 14,3 4,1 - 7,7 6,6 - 12,2...
- Page 21 Varia Varia Varia Varia Varia Varia Varia Varia Varia Varia Varia Varia Varia Varia AS-2Lh / 2L-55h / 2L /2R 2L / 2R S 2L / 2R 2Lh / 2Rh 2Lh / 2Rh 2Lh / 2Rh 2L-55h GET / 2L-55h GET+DH / AS-2Lh / 2L-80h / 2R-80h 2L-80h / 2R-80h...
- Page 22 Varia Varia Varia Varia Varia Varia Varia Varia 2LR-55h / 2LR-55h / 2LR-55h / 2LRh / 2LRh / 2RRh 2LRh / 2RRh C-45h 2RR-55h 2RR-55h 2RR-55h 2RRh NSHF GET + DH Norminal heat output (kW) (closed structure) 11,0 12,0 Thermal output range (kW) 4,9 - 9,1 4,9 - 9,1 4,9 - 9,1...
- Page 23 Arte Arte Arte Arte Arte Arte Speedy Speedy Speedy Speedy Speedy Magic Speedy Speedy U-50h U-70h U-90h 3RL-60h 3RL-80h 3RL-100h MR / MRh MR / MRh R / Rh R / Rh MDRh RDRh NSHF 11,0 13,0 11,0 10,0 12,0 11,0 6,3 - 11,7 7,7 - 14,3...
- Page 24 Varia Varia Arte Speedy Speedy Speedy Speedy Mini M / Mh M / Mh K / Kh K / Kh Z1 H NSHF NSHF 7,0 / Norminal heat output (kW) (closed structure) 11,0 11,0 11,0 10,0 water output 5,5 Thermal output range (kW) 7,7 - 14,3 7,7 - 14,3 7,7 - 14,3...
- Page 25 Mini Mini Varia Varia Varia Varia Varia Varia Varia Ah Varia Ah Varia A-FDh Varia A-FDh Varia Varia 1V H 1V H O XL / 1V H O XXL / 2L-55h H 2L-55h H Z1 H O XL Z1h H O XL 1V H 1V H...
- Page 26 Varia Varia Nova E Nova Renova Renova Renova Renova 2Lh H 2Lh H F-Air B-Air C-Air C-Air 2Rh H 2Rh H (split logs) (Lignite) (Export) 10,4 / 14,7 / 14,0 / 13,4 / Norminal heat output (kW) (closed structure) 10,1 water output 6,0 water output 8,4 water output 9,0...
