1.2.2 PUSH-UP COMBUSTION CHAMBER DOOR IN
THE POSITION NOT INSTALLED

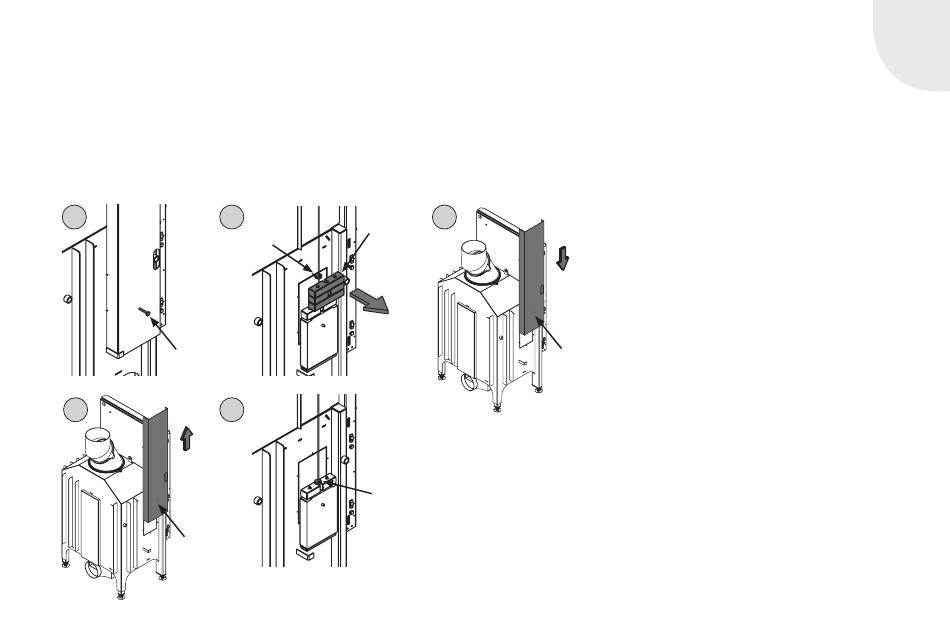

Conversion of a non-self-locking combustion chamber door to a
combustion chamber door by removing the counter weights. Carry
out the fireplace inserts with two weight shafts in the same procedure on
both sides.
1
3
Retaining Washer
Transport safety device
2
4
Weight shaft cover
5
Counter
balance
Weight shaft cover
Retaining Washer
GB 7
1. Removing the transport safety device and
fastening screws.
2. Pull the weight shaft cover upwards.
3. Release the locking ring (Allen key 2.5).
Remove the necessary counter-weights.
The number of weights to be removed
must be selected in such a manner that
the door closes slowly with a constant
speed, check the function.
4. Tightening the locking ring (Allen key 2.5).
5. Mount the weight shaft cover and secure
with a fastening screw(s).
GB
