1.2 CONVERSION, DOOR LOCKING T YPES

1.2.1 PIVOTED COMBUSTION CHAMBER DOOR

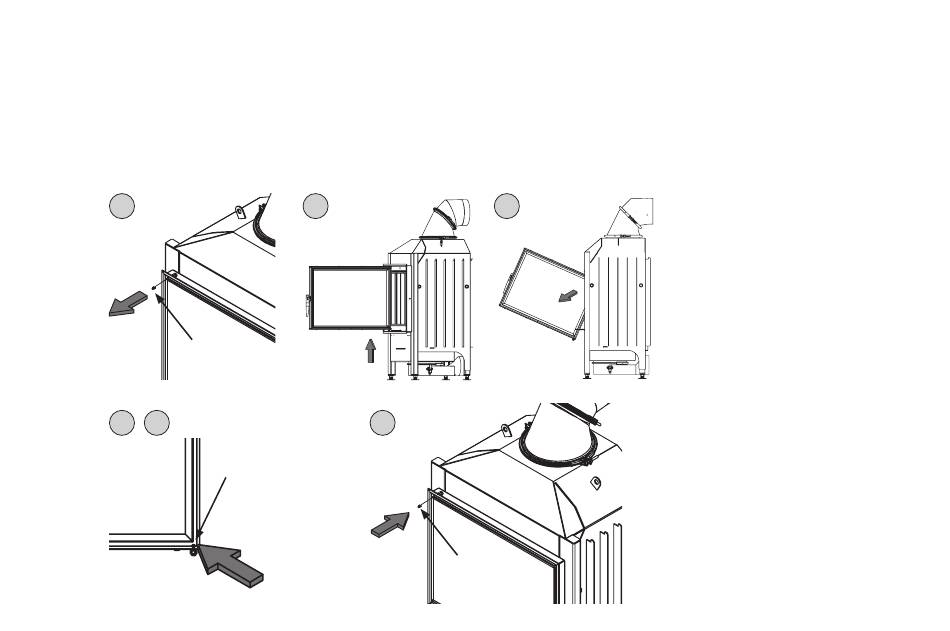

Conversion of a self-locking pivoted combustion chamber door to
a non-pivoted combustion chamber door by relieving the door lock
spring.
1
Securing split-pin
2
4
Lock screw
3a
5
Securing split-pin
3b
GB 6
1. Remove the securing split-pin between the
frame and door.
2. Secure the door locking spring (Allen key
2.5). Tighten the locking screw located at
the bottom right in the corner of the door
at the bottom pivot point. They may be
located a little under the grey cord seal.
The work steps to be carried out must not
damage the seal!
3. Hang-out the combustion chamber door.
4. Relieve the locking screw (Allen key 2.5). A
significant clicking should be heard.
5. Inser the combustion chamber door, mount
the securing split-pin.
