8.2 INSULATION

Special measures for fire protection with combustible construction materi-
als (flooring and / or mounting walls) relating to the insulation.
23

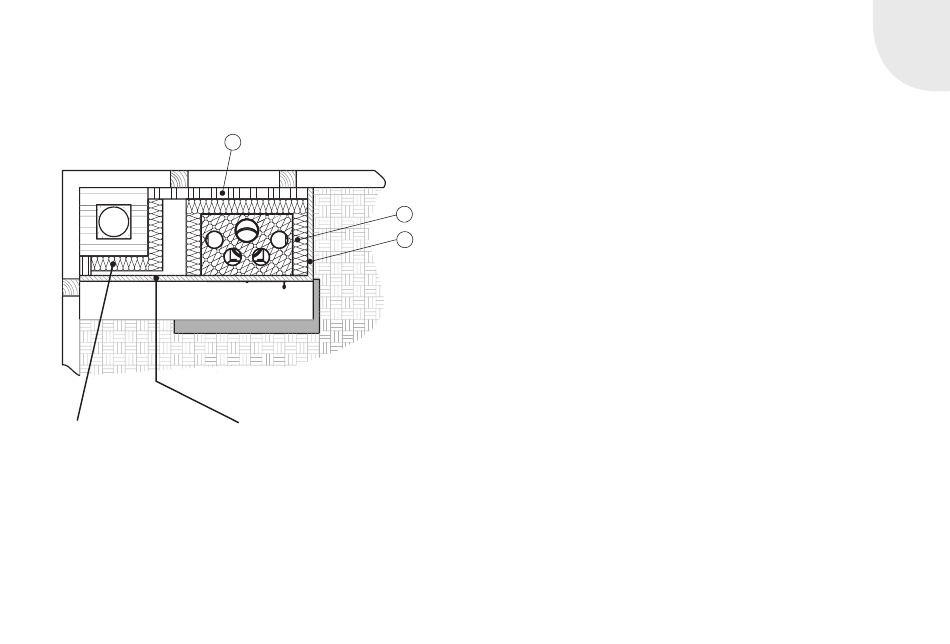

The figure shows the installation situation using the
If and how the chimney walls in your
The fireplace cladding must be
installation situation have to be insulated,
17 suitable for heat dissipation
please consult your responsible stove fitter
(active surfaces or convection air
and the chimney sweeper.
openings)!
8 Insulation of the convection air housing all-around using, e.g., dimensionally stable mineral wool
according to the heat insulation thickness technical data.
13 Chimney cladding made from non-combustible construction material
23 Stud wall, 10 cm thick*
* If necessary, use a substitute insulation material (e.g. calcium silicate) in the place of front-mounted
masonry and insulation (point 8), in accordance with the technical data provided by the manufacturer.
8
13
Varia 1V-51-4S with convection air housing as an
example and applies as an example for all fireplace
inserts.

9. CLEANING THE FIREPLACE SYSTEMS

Fireplace systems must be designed in such a manner that the air inlets and
air outlets can easily be cleaned and the distance area to the ceiling, the
walls and built-in furniture can be viewed easily and kept free. The service
openings must always be installed easy to access so that claning is not
made difficult.
10. SPECIAL INFORMATION FOR
SPARTHERM FIREPLACE INSERTS

10.1 FLUE GAS OUTLET

The flue gas outlet can be turned. It can be connected to the chimney
vertically as well as horizontally. For connecting to the side, there is a 90°
flue gas dome for the favourable flow connection of the 0° flue gas dome
available in the delivery program.
GB 23
