Cable Connections

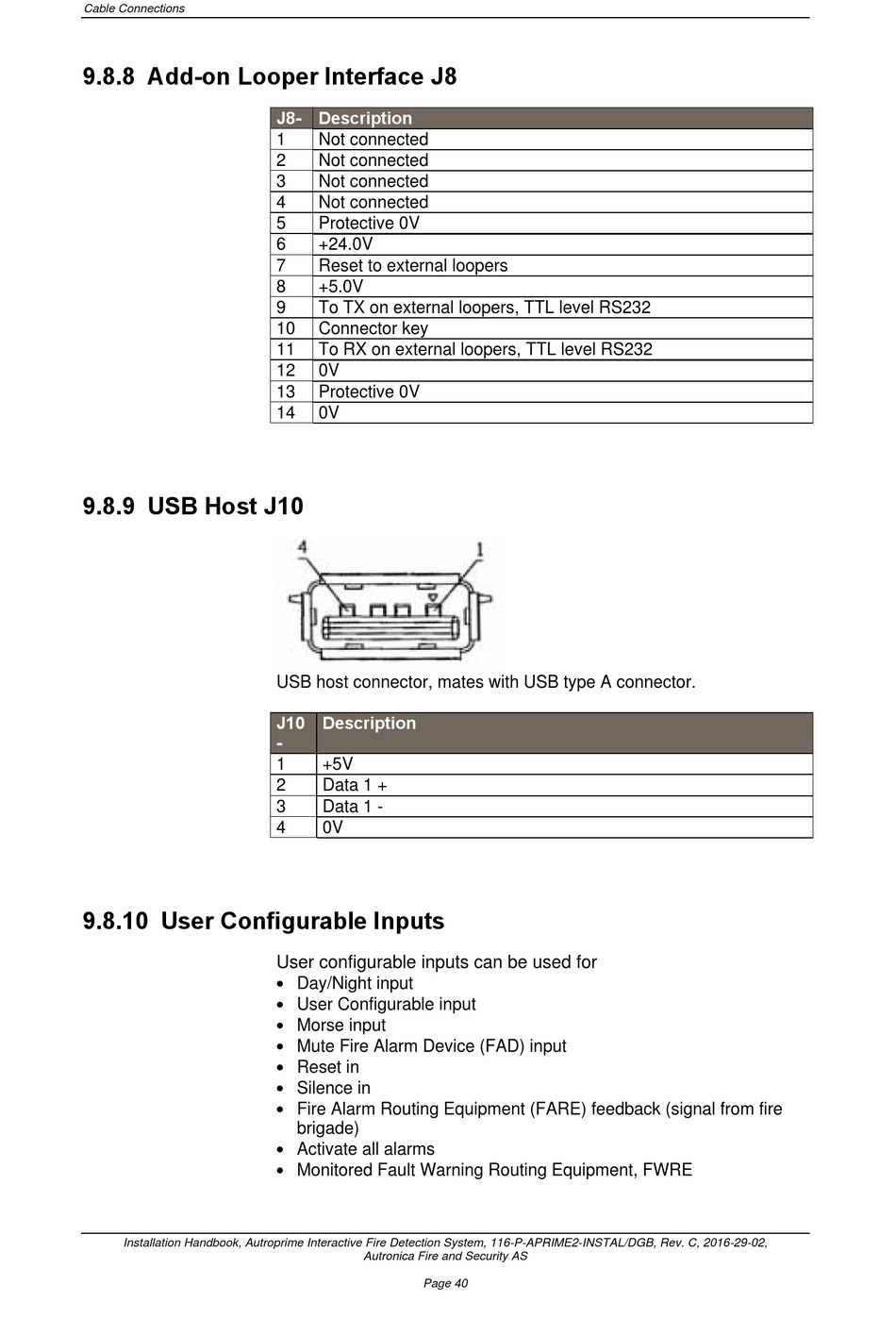

9.8.8 Add-on Looper Interface J8

9.8.9 USB Host J10

9.8.10 User Configurable Inputs

Installation Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME2-INSTAL/DGB, Rev. C, 2016-29-02,
J8- Description
1 Not connected
2 Not connected
3 Not connected
4 Not connected
5 Protective 0V
6 +24.0V
7 Reset to external loopers
8 +5.0V
9 To TX on external loopers, TTL level RS232
10 Connector key
11 To RX on external loopers, TTL level RS232
12 0V
13 Protective 0V
14 0V
USB host connector, mates with USB type A connector.
J10 Description
-
1 +5V
2 Data 1 +
3 Data 1 -
4 0V
User configurable inputs can be used for
 Day/Night input
 User Configurable input
 Morse input
 Mute Fire Alarm Device (FAD) input
 Reset in
 Silence in
 Fire Alarm Routing Equipment (FARE) feedback (signal from fire
brigade)
 Activate all alarms
 Monitored Fault Warning Routing Equipment, FWRE
