Mounting Instructions

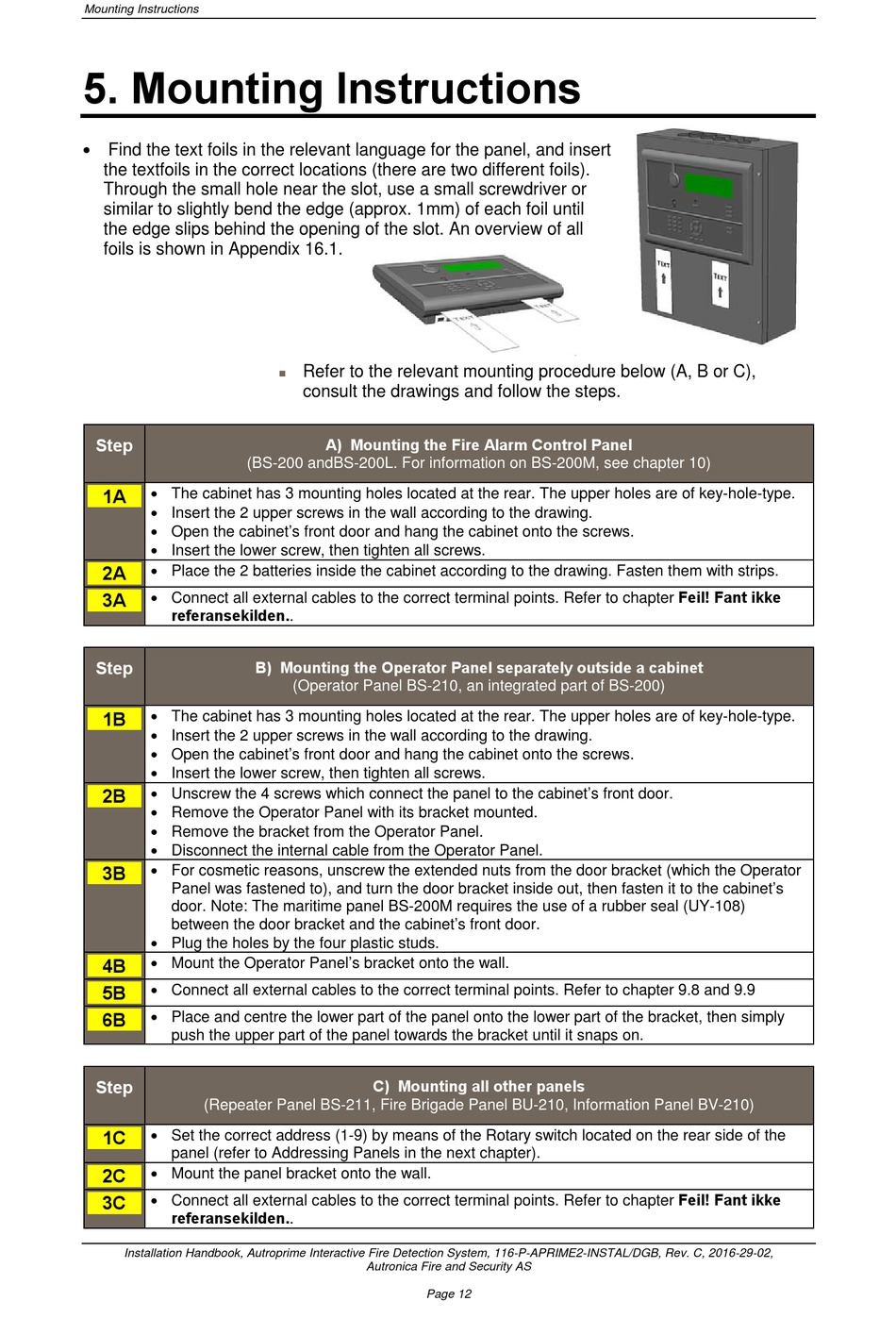

5. Mounting Instructions
 Find the text foils in the relevant language for the panel, and insert
the textfoils in the correct locations (there are two different foils).
Through the small hole near the slot, use a small screwdriver or
similar to slightly bend the edge (approx. 1mm) of each foil until
the edge slips behind the opening of the slot. An overview of all
foils is shown in Appendix 16.1.
Step
(BS-200 andBS-200L. For information on BS-200M, see chapter 10)
 The cabinet has 3 mounting holes located at the rear. The upper holes are of key-hole-type.
1A
 Insert the 2 upper screws in the wall according to the drawing.
 Open the cabinet's front door and hang the cabinet onto the screws.
 Insert the lower screw, then tighten all screws.
 Place the 2 batteries inside the cabinet according to the drawing. Fasten them with strips.
2A
 Connect all external cables to the correct terminal points. Refer to chapter Feil! Fant ikke
3A
referansekilden..
Step
 The cabinet has 3 mounting holes located at the rear. The upper holes are of key-hole-type.
1B
 Insert the 2 upper screws in the wall according to the drawing.
 Open the cabinet's front door and hang the cabinet onto the screws.
 Insert the lower screw, then tighten all screws.
 Unscrew the 4 screws which connect the panel to the cabinet's front door.
2B
 Remove the Operator Panel with its bracket mounted.
 Remove the bracket from the Operator Panel.
 Disconnect the internal cable from the Operator Panel.
 For cosmetic reasons, unscrew the extended nuts from the door bracket (which the Operator
3B
Panel was fastened to), and turn the door bracket inside out, then fasten it to the cabinet's
door. Note: The maritime panel BS-200M requires the use of a rubber seal (UY-108)
between the door bracket and the cabinet's front door.
 Plug the holes by the four plastic studs.
 Mount the Operator Panel's bracket onto the wall.
4B
 Connect all external cables to the correct terminal points. Refer to chapter 9.8 and 9.9
5B
 Place and centre the lower part of the panel onto the lower part of the bracket, then simply
6B
push the upper part of the panel towards the bracket until it snaps on.
Step
(Repeater Panel BS-211, Fire Brigade Panel BU-210, Information Panel BV-210)
 Set the correct address (1-9) by means of the Rotary switch located on the rear side of the
1C
panel (refer to Addressing Panels in the next chapter).
 Mount the panel bracket onto the wall.
2C
 Connect all external cables to the correct terminal points. Refer to chapter Feil! Fant ikke
3C
referansekilden..
Installation Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME2-INSTAL/DGB, Rev. C, 2016-29-02,
Refer to the relevant mounting procedure below (A, B or C),

consult the drawings and follow the steps.
A) Mounting the Fire Alarm Control Panel
B) Mounting the Operator Panel separately outside a cabinet
(Operator Panel BS-210, an integrated part of BS-200)
C) Mounting all other panels
