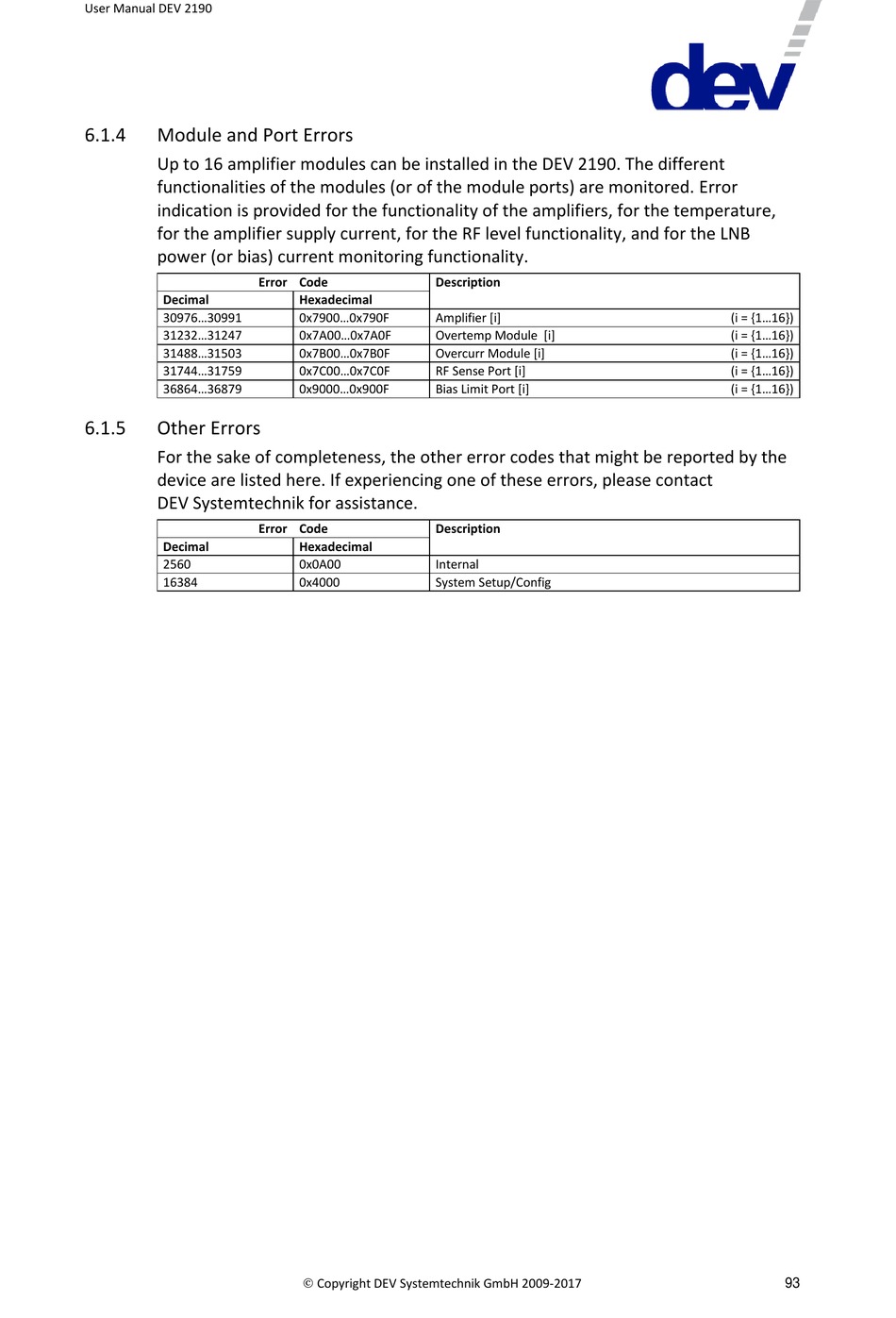

Module and Port Errors

Up to 16 amplifier modules can be installed in the DEV 2190. The different
functionalities of the modules (or of the module ports) are monitored. Error
indication is provided for the functionality of the amplifiers, for the temperature,
for the amplifier supply current, for the RF level functionality, and for the LNB
power (or bias) current monitoring functionality.
Decimal
30976...30991
31232...31247
31488...31503
31744...31759
36864...36879
6.1.5

Other Errors

For the sake of completeness, the other error codes that might be reported by the
device are listed here. If experiencing one of these errors, please contact
DEV Systemtechnik for assistance.
Decimal
2560
16384
Error Code
Hexadecimal
0x7900...0x790F
0x7A00...0x7A0F
0x7B00...0x7B0F
0x7C00...0x7C0F
0x9000...0x900F
Error Code
Hexadecimal
0x0A00
0x4000
 Copyright DEV Systemtechnik GmbH 2009-2017
Description
Amplifier [i]
Overtemp Module [i]
Overcurr Module [i]
RF Sense Port [i]
Bias Limit Port [i]
Description
Internal
System Setup/Config
(i = {1...16})
(i = {1...16})
(i = {1...16})
(i = {1...16})
(i = {1...16})
