User Manual DEV 2190

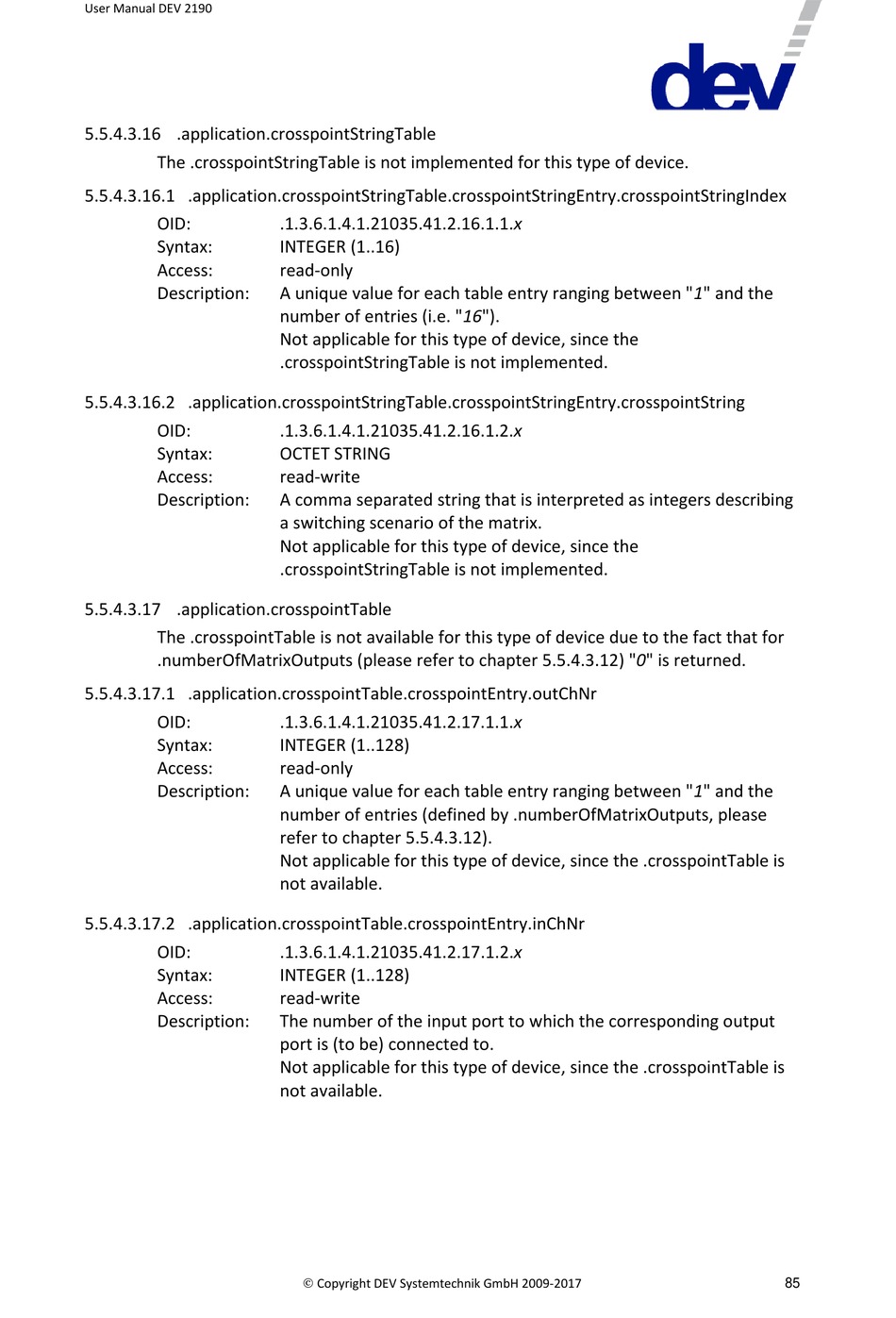

5.5.4.3.16 .application.crosspointStringTable

The .crosspointStringTable is not implemented for this type of device.

5.5.4.3.16.1 .application.crosspointStringTable.crosspointStringEntry.crosspointStringIndex

OID:
Syntax:
Access:
Description:

5.5.4.3.16.2 .application.crosspointStringTable.crosspointStringEntry.crosspointString

OID:
Syntax:
Access:
Description:

5.5.4.3.17 .application.crosspointTable

The .crosspointTable is not available for this type of device due to the fact that for
.numberOfMatrixOutputs (please refer to chapter 5.5.4.3.12) "0" is returned.

5.5.4.3.17.1 .application.crosspointTable.crosspointEntry.outChNr

OID:
Syntax:
Access:
Description:

5.5.4.3.17.2 .application.crosspointTable.crosspointEntry.inChNr

OID:
Syntax:
Access:
Description:
.1.3.6.1.4.1.21035.41.2.16.1.1.x
INTEGER (1..16)
read-only
A unique value for each table entry ranging between "1" and the
number of entries (i.e. "16").
Not applicable for this type of device, since the
.crosspointStringTable is not implemented.
.1.3.6.1.4.1.21035.41.2.16.1.2.x
OCTET STRING
read-write
A comma separated string that is interpreted as integers describing
a switching scenario of the matrix.
Not applicable for this type of device, since the
.crosspointStringTable is not implemented.
.1.3.6.1.4.1.21035.41.2.17.1.1.x
INTEGER (1..128)
read-only
A unique value for each table entry ranging between "1" and the
number of entries (defined by .numberOfMatrixOutputs, please
refer to chapter 5.5.4.3.12).
Not applicable for this type of device, since the .crosspointTable is
not available.
.1.3.6.1.4.1.21035.41.2.17.1.2.x
INTEGER (1..128)
read-write
The number of the input port to which the corresponding output
port is (to be) connected to.
Not applicable for this type of device, since the .crosspointTable is
not available.
 Copyright DEV Systemtechnik GmbH 2009-2017
85
