User Manual DEV 2190
amplifier module(s). By ordering the functionalities in combination with the
appropriate number of Option 26 (1 * per amplifier option, per distribution option,
and per combiner option; 2 * (or 4 *) per IRD controlled switch option/extension),
the fixed part of the corresponding functionality is installed when the device is
delivered. To utilize the functionality at a later point in time, the (number of)
appropriate amplifier module(s) (please refer to chapter 9) is to be ordered which
can be easily installed by the customer (chapter 4.2.4).
Eight Web Interface licenses are included in the delivery of the DEV 2190; addi-
tional licenses for the Web Interface can be ordered initially via Option 78. It is
possible to purchase additional license keys at any time, please contact
DEV Systemtechnik.

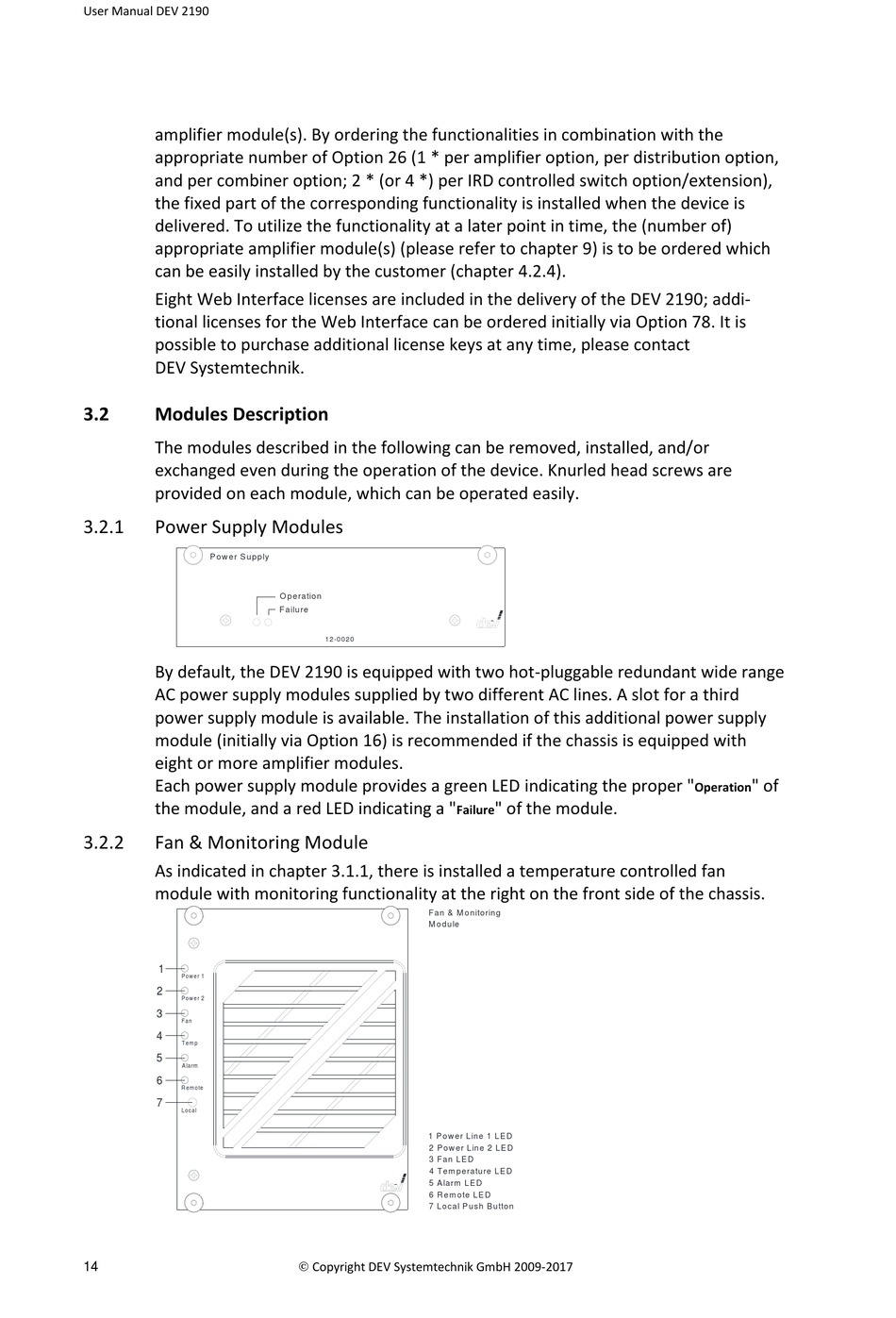

3.2

Modules Description

The modules described in the following can be removed, installed, and/or
exchanged even during the operation of the device. Knurled head screws are
provided on each module, which can be operated easily.
3.2.1

Power Supply Modules

P o w e r S u p p ly
By default, the DEV 2190 is equipped with two hot-pluggable redundant wide range
AC power supply modules supplied by two different AC lines. A slot for a third
power supply module is available. The installation of this additional power supply
module (initially via Option 16) is recommended if the chassis is equipped with
eight or more amplifier modules.
Each power supply module provides a green LED indicating the proper "
the module, and a red LED indicating a "
3.2.2 Fan & Monitoring Module
As indicated in chapter 3.1.1, there is installed a temperature controlled fan
module with monitoring functionality at the right on the front side of the chassis.
1
P o w e r 1
2
P o w e r 2
3
F a n
4
T e m p
5
A la rm
6
R e m o te
7
L o ca l
14
O p e ra tio n
F a ilu re
1 2 -0 0 2 0
F a n & M o n ito rin g
M o d u le
1 P o w e r L in e 1 L E D
2 P o w e r L in e 2 L E D
3 F a n L E D
4 T e m p e ra tu re L E D
5 A la rm L E D
6 R e m o te L E D
7 L o ca l P u sh B u tto n
 Copyright DEV Systemtechnik GmbH 2009-2017
" of the module.
Failure
" of
Operation
