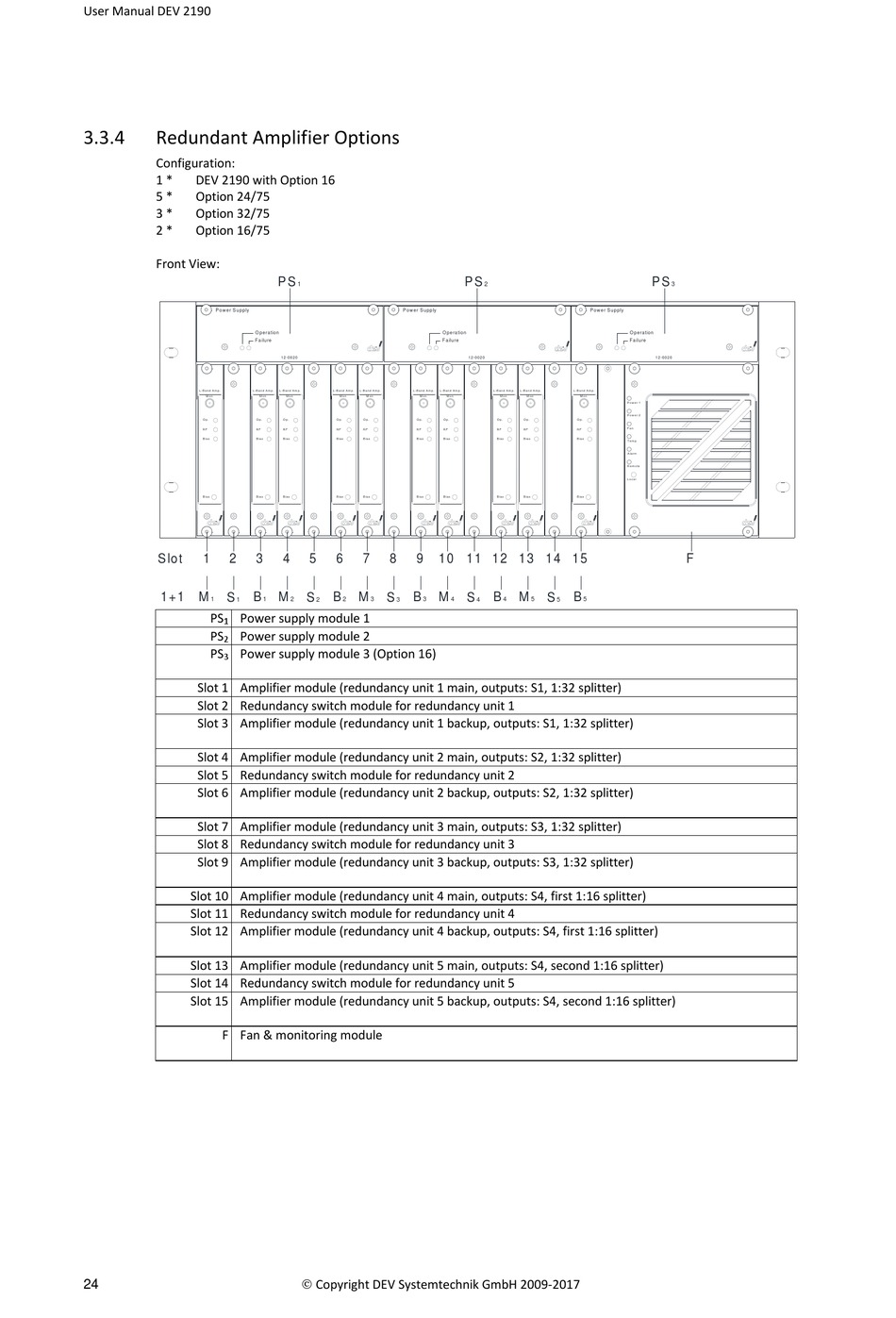

Redundant Amplifier Options

Configuration:
1 * DEV 2190 with Option 16
5 * Option 24/75
3 * Option 32/75
2 * Option 16/75
Front View:
P o w e r S u p p ly
L -B a n d A m p .
M o n
O p .
R F
B ia s
B ia s
S lo t 1 2
1 + 1 M
S
1 1
PS Power supply module 1
1
PS Power supply module 2
2
PS Power supply module 3 (Option 16)
3
Slot 1 Amplifier module (redundancy unit 1 main, outputs: S1, 1:32 splitter)
Slot 2 Redundancy switch module for redundancy unit 1
Slot 3 Amplifier module (redundancy unit 1 backup, outputs: S1, 1:32 splitter)
Slot 4 Amplifier module (redundancy unit 2 main, outputs: S2, 1:32 splitter)
Slot 5 Redundancy switch module for redundancy unit 2
Slot 6 Amplifier module (redundancy unit 2 backup, outputs: S2, 1:32 splitter)
Slot 7 Amplifier module (redundancy unit 3 main, outputs: S3, 1:32 splitter)
Slot 8 Redundancy switch module for redundancy unit 3
Slot 9 Amplifier module (redundancy unit 3 backup, outputs: S3, 1:32 splitter)
Slot 10 Amplifier module (redundancy unit 4 main, outputs: S4, first 1:16 splitter)
Slot 11 Redundancy switch module for redundancy unit 4
Slot 12 Amplifier module (redundancy unit 4 backup, outputs: S4, first 1:16 splitter)
Slot 13 Amplifier module (redundancy unit 5 main, outputs: S4, second 1:16 splitter)
Slot 14 Redundancy switch module for redundancy unit 5
Slot 15 Amplifier module (redundancy unit 5 backup, outputs: S4, second 1:16 splitter)
F Fan & monitoring module
