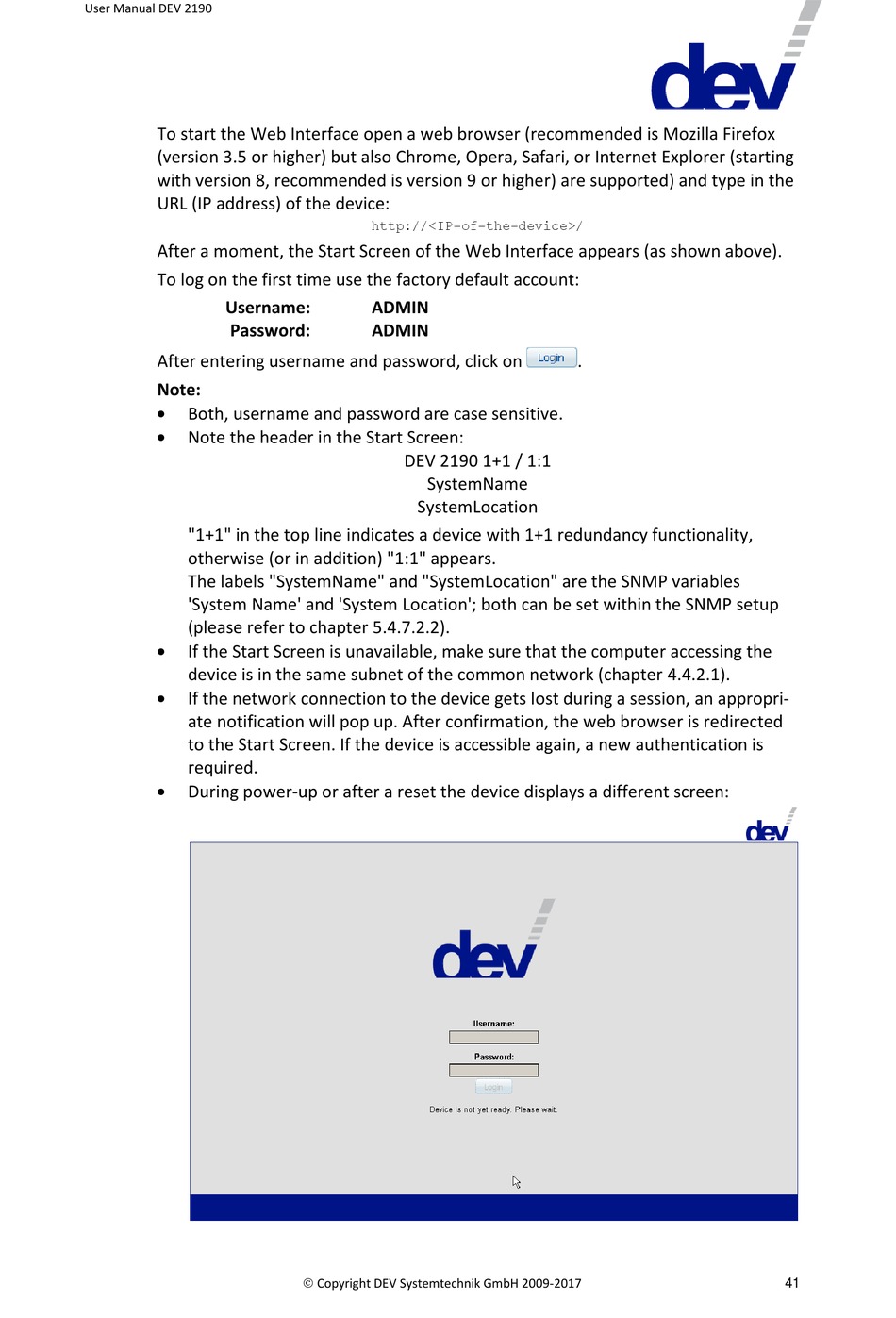

DEV 2190 User Manual page 41

User Manual DEV 2190
To start the Web Interface open a web browser (recommended is Mozilla Firefox
(version 3.5 or higher) but also Chrome, Opera, Safari, or Internet Explorer (starting
with version 8, recommended is version 9 or higher) are supported) and type in the
URL (IP address) of the device:
After a moment, the Start Screen of the Web Interface appears (as shown above).
To log on the first time use the factory default account:
Username:
Password:
After entering username and password, click on
Note:

Both, username and password are case sensitive.

Note the header in the Start Screen:
"1+1" in the top line indicates a device with 1+1 redundancy functionality,
otherwise (or in addition) "1:1" appears.
The labels "SystemName" and "SystemLocation" are the SNMP variables
'System Name' and 'System Location'; both can be set within the SNMP setup
(please refer to chapter 5.4.7.2.2).

If the Start Screen is unavailable, make sure that the computer accessing the
device is in the same subnet of the common network (chapter 4.4.2.1).

If the network connection to the device gets lost during a session, an appropri-
ate notification will pop up. After confirmation, the web browser is redirected
to the Start Screen. If the device is accessible again, a new authentication is
required.

During power-up or after a reset the device displays a different screen:
http://<IP-of-the-device>/
ADMIN
ADMIN
DEV 2190 1+1 / 1:1
SystemName
SystemLocation
 Copyright DEV Systemtechnik GmbH 2009-2017
.
41
