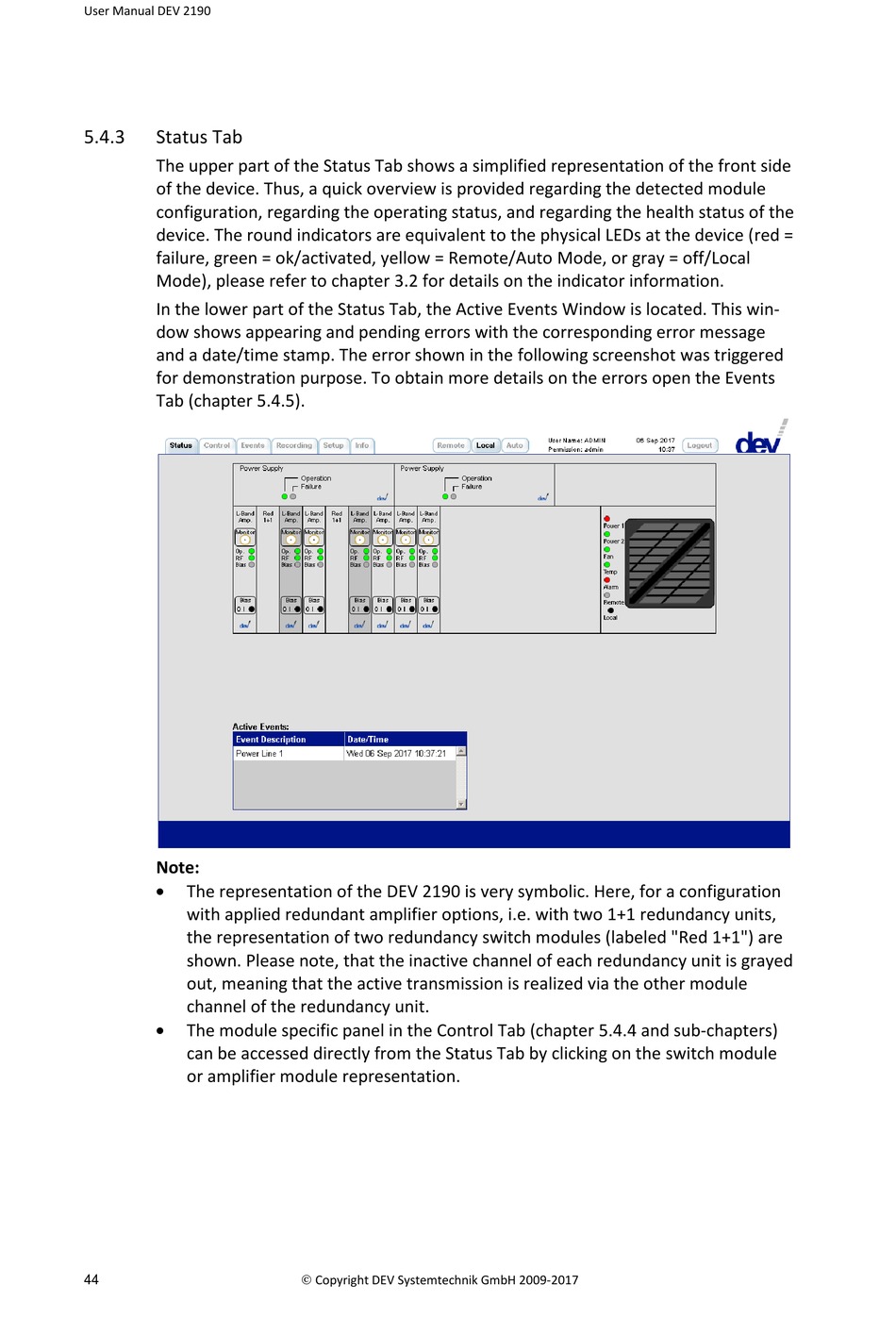

5.4.3

Status Tab

The upper part of the Status Tab shows a simplified representation of the front side
of the device. Thus, a quick overview is provided regarding the detected module
configuration, regarding the operating status, and regarding the health status of the
device. The round indicators are equivalent to the physical LEDs at the device (red =
failure, green = ok/activated, yellow = Remote/Auto Mode, or gray = off/Local
Mode), please refer to chapter 3.2 for details on the indicator information.
In the lower part of the Status Tab, the Active Events Window is located. This win-
dow shows appearing and pending errors with the corresponding error message
and a date/time stamp. The error shown in the following screenshot was triggered
for demonstration purpose. To obtain more details on the errors open the Events
Tab (chapter 5.4.5).
Note:

The representation of the DEV 2190 is very symbolic. Here, for a configuration
with applied redundant amplifier options, i.e. with two 1+1 redundancy units,
the representation of two redundancy switch modules (labeled "Red 1+1") are
shown. Please note, that the inactive channel of each redundancy unit is grayed
out, meaning that the active transmission is realized via the other module
channel of the redundancy unit.

The module specific panel in the Control Tab (chapter 5.4.4 and sub-chapters)
can be accessed directly from the Status Tab by clicking on the switch module
or amplifier module representation.
