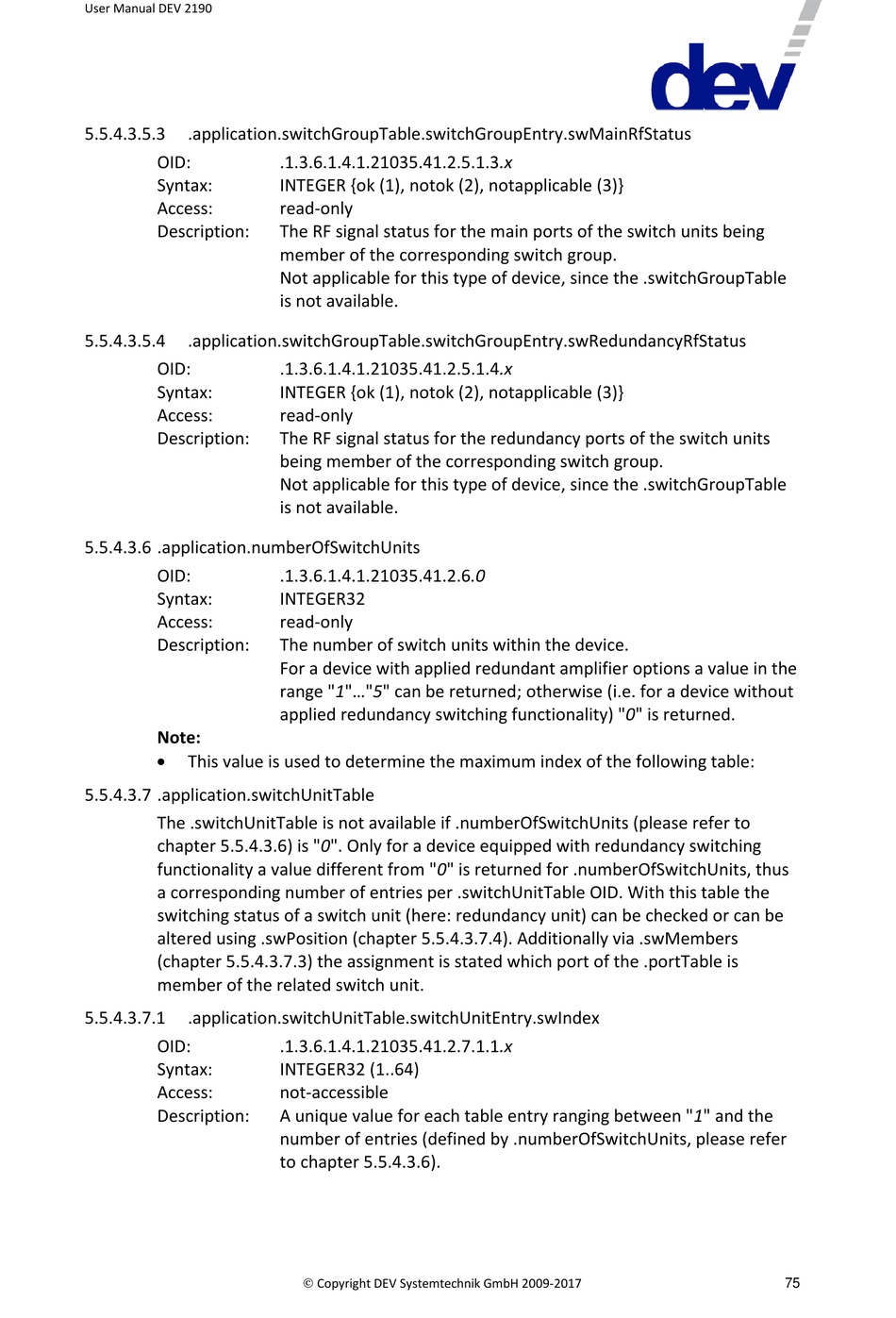

User Manual DEV 2190
5.5.4.3.5.3

.application.switchGroupTable.switchGroupEntry.swMainRfStatus

OID:
Syntax:
Access:
Description:
5.5.4.3.5.4

.application.switchGroupTable.switchGroupEntry.swRedundancyRfStatus

OID:
Syntax:
Access:
Description:

5.5.4.3.6 .application.numberOfSwitchUnits

OID:
Syntax:
Access:
Description:
Note:

This value is used to determine the maximum index of the following table:

5.5.4.3.7 .application.switchUnitTable

The .switchUnitTable is not available if .numberOfSwitchUnits (please refer to
chapter 5.5.4.3.6) is "0". Only for a device equipped with redundancy switching
functionality a value different from "0" is returned for .numberOfSwitchUnits, thus
a corresponding number of entries per .switchUnitTable OID. With this table the
switching status of a switch unit (here: redundancy unit) can be checked or can be
altered using .swPosition (chapter 5.5.4.3.7.4). Additionally via .swMembers
(chapter 5.5.4.3.7.3) the assignment is stated which port of the .portTable is
member of the related switch unit.
5.5.4.3.7.1

.application.switchUnitTable.switchUnitEntry.swIndex

OID:
Syntax:
Access:
Description:
.1.3.6.1.4.1.21035.41.2.5.1.3.x
INTEGER {ok (1), notok (2), notapplicable (3)}
read-only
The RF signal status for the main ports of the switch units being
member of the corresponding switch group.
Not applicable for this type of device, since the .switchGroupTable
is not available.
.1.3.6.1.4.1.21035.41.2.5.1.4.x
INTEGER {ok (1), notok (2), notapplicable (3)}
read-only
The RF signal status for the redundancy ports of the switch units
being member of the corresponding switch group.
Not applicable for this type of device, since the .switchGroupTable
is not available.
.1.3.6.1.4.1.21035.41.2.6.0
INTEGER32
read-only
The number of switch units within the device.
For a device with applied redundant amplifier options a value in the
range "1"..."5" can be returned; otherwise (i.e. for a device without
applied redundancy switching functionality) "0" is returned.
.1.3.6.1.4.1.21035.41.2.7.1.1.x
INTEGER32 (1..64)
not-accessible
A unique value for each table entry ranging between "1" and the
number of entries (defined by .numberOfSwitchUnits, please refer
to chapter 5.5.4.3.6).
 Copyright DEV Systemtechnik GmbH 2009-2017
75
