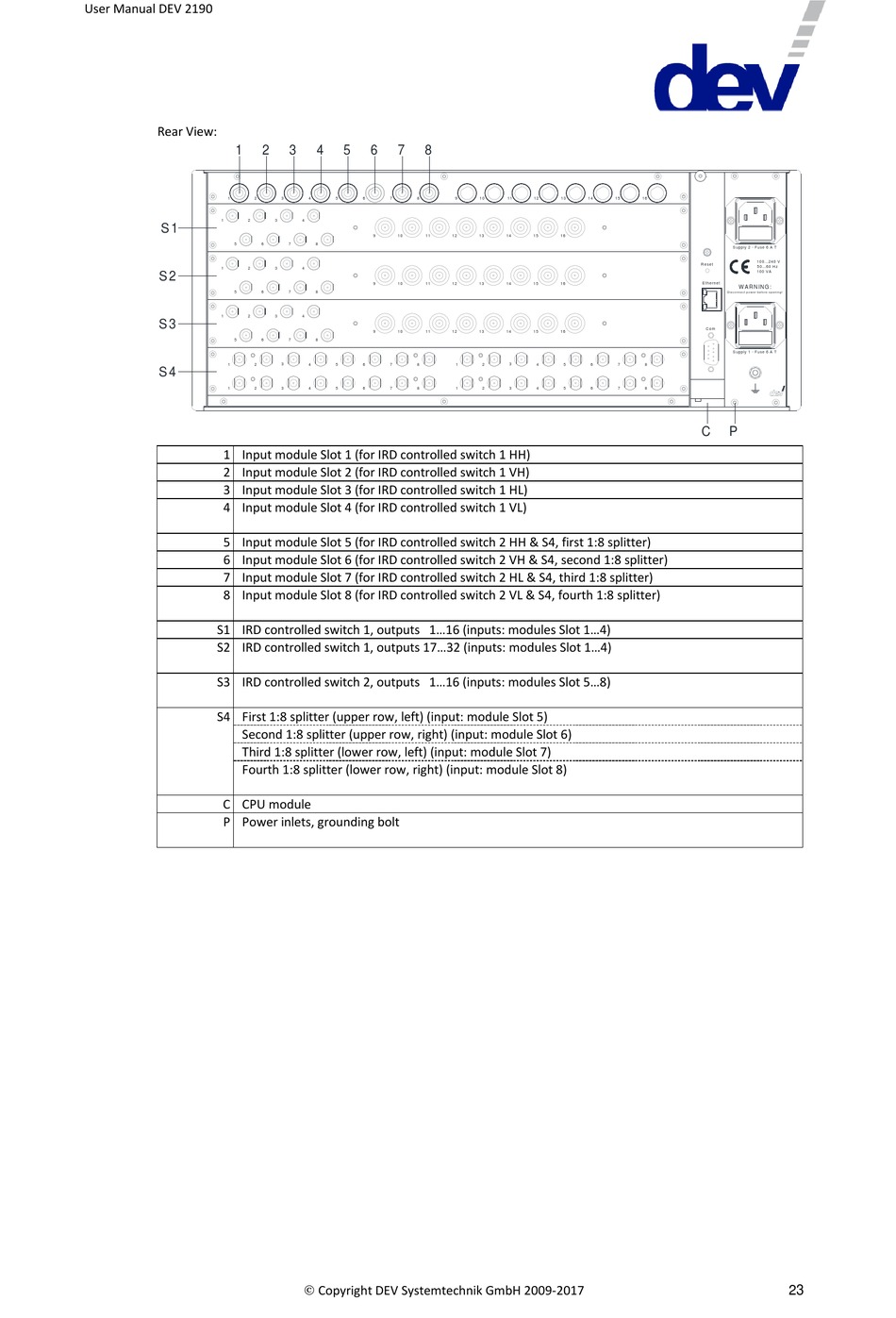

Rear View:
1
1
1 2
S 1
5
1 2
S 2
5
1 2
S 3
5
1
S 4
1
1 Input module Slot 1 (for IRD controlled switch 1 HH)
2 Input module Slot 2 (for IRD controlled switch 1 VH)
3 Input module Slot 3 (for IRD controlled switch 1 HL)
4 Input module Slot 4 (for IRD controlled switch 1 VL)
5 Input module Slot 5 (for IRD controlled switch 2 HH & S4, first 1:8 splitter)
6 Input module Slot 6 (for IRD controlled switch 2 VH & S4, second 1:8 splitter)
7 Input module Slot 7 (for IRD controlled switch 2 HL & S4, third 1:8 splitter)
8 Input module Slot 8 (for IRD controlled switch 2 VL & S4, fourth 1:8 splitter)
S1 IRD controlled switch 1, outputs 1...16 (inputs: modules Slot 1...4)
S2 IRD controlled switch 1, outputs 17...32 (inputs: modules Slot 1...4)
S3 IRD controlled switch 2, outputs 1...16 (inputs: modules Slot 5...8)
S4 First 1:8 splitter (upper row, left) (input: module Slot 5)
Second 1:8 splitter (upper row, right) (input: module Slot 6)
Third 1:8 splitter (lower row, left) (input: module Slot 7)
Fourth 1:8 splitter (lower row, right) (input: module Slot 8)
C CPU module
P Power inlets, grounding bolt
