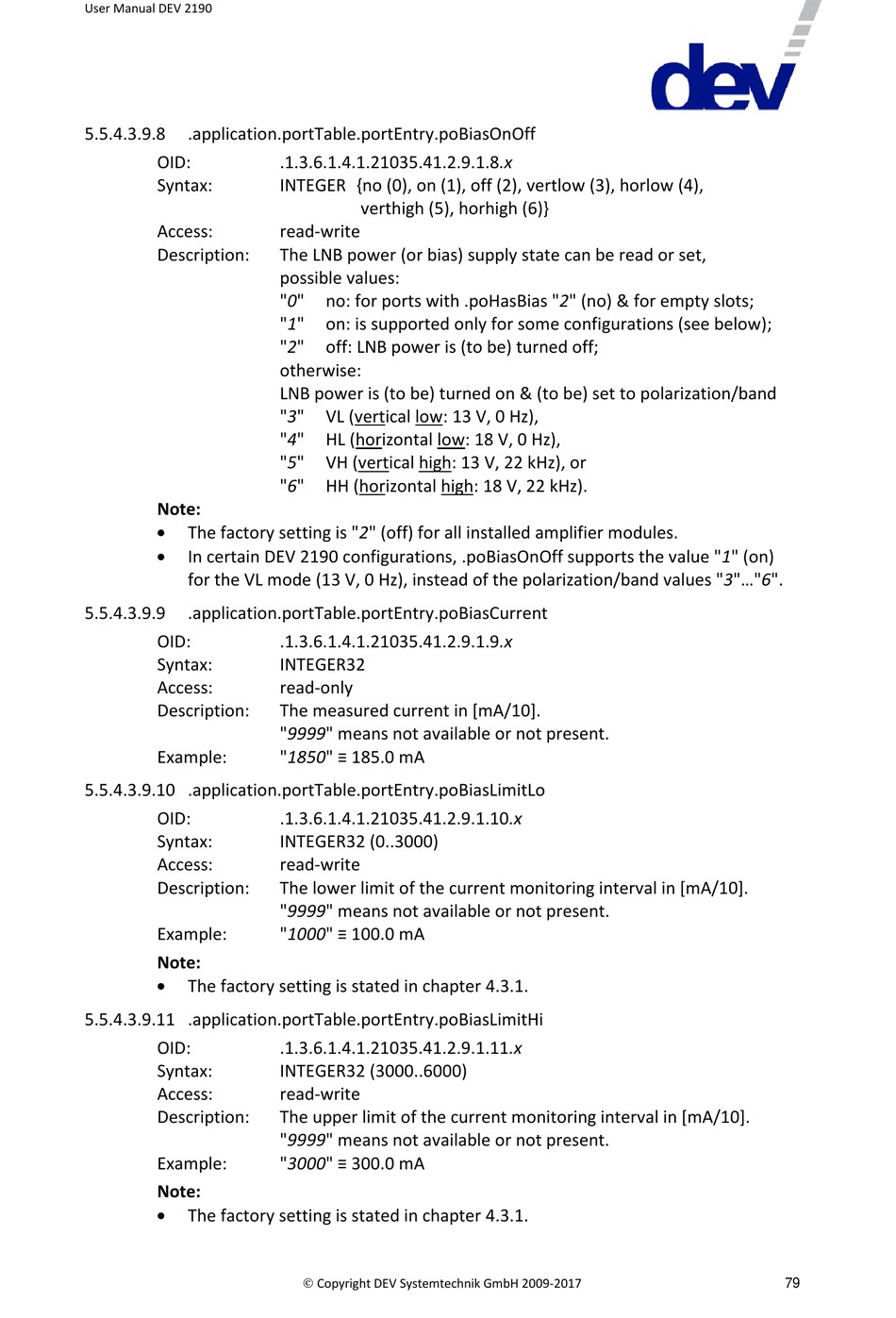

User Manual DEV 2190
5.5.4.3.9.8

.application.portTable.portEntry.poBiasOnOff

OID:
Syntax:
Access:
Description:
Note:

The factory setting is "2" (off) for all installed amplifier modules.

In certain DEV 2190 configurations, .poBiasOnOff supports the value "1" (on)
for the VL mode (13 V, 0 Hz), instead of the polarization/band values "3"..."6".
5.5.4.3.9.9

.application.portTable.portEntry.poBiasCurrent

OID:
Syntax:
Access:
Description:
Example:

5.5.4.3.9.10 .application.portTable.portEntry.poBiasLimitLo

OID:
Syntax:
Access:
Description:
Example:
Note:

The factory setting is stated in chapter 4.3.1.

5.5.4.3.9.11 .application.portTable.portEntry.poBiasLimitHi

OID:
Syntax:
Access:
Description:
Example:
Note:

The factory setting is stated in chapter 4.3.1.
.1.3.6.1.4.1.21035.41.2.9.1.8.x
INTEGER {no (0), on (1), off (2), vertlow (3), horlow (4),
verthigh (5), horhigh (6)}
read-write
The LNB power (or bias) supply state can be read or set,
possible values:
"0" no: for ports with .poHasBias "2" (no) & for empty slots;
"1" on: is supported only for some configurations (see below);
"2" off: LNB power is (to be) turned off;
otherwise:
LNB power is (to be) turned on & (to be) set to polarization/band
"3" VL (vertical low: 13 V, 0 Hz),
"4" HL (horizontal low: 18 V, 0 Hz),
"5" VH (vertical high: 13 V, 22 kHz), or
"6" HH (horizontal high: 18 V, 22 kHz).
.1.3.6.1.4.1.21035.41.2.9.1.9.x
INTEGER32
read-only
The measured current in [mA/10].
"9999" means not available or not present.
"1850" ≡ 185.0 mA
.1.3.6.1.4.1.21035.41.2.9.1.10.x
INTEGER32 (0..3000)
read-write
The lower limit of the current monitoring interval in [mA/10].
"9999" means not available or not present.
"1000" ≡ 100.0 mA
.1.3.6.1.4.1.21035.41.2.9.1.11.x
INTEGER32 (3000..6000)
read-write
The upper limit of the current monitoring interval in [mA/10].
"9999" means not available or not present.
"3000" ≡ 300.0 mA
