GPIO

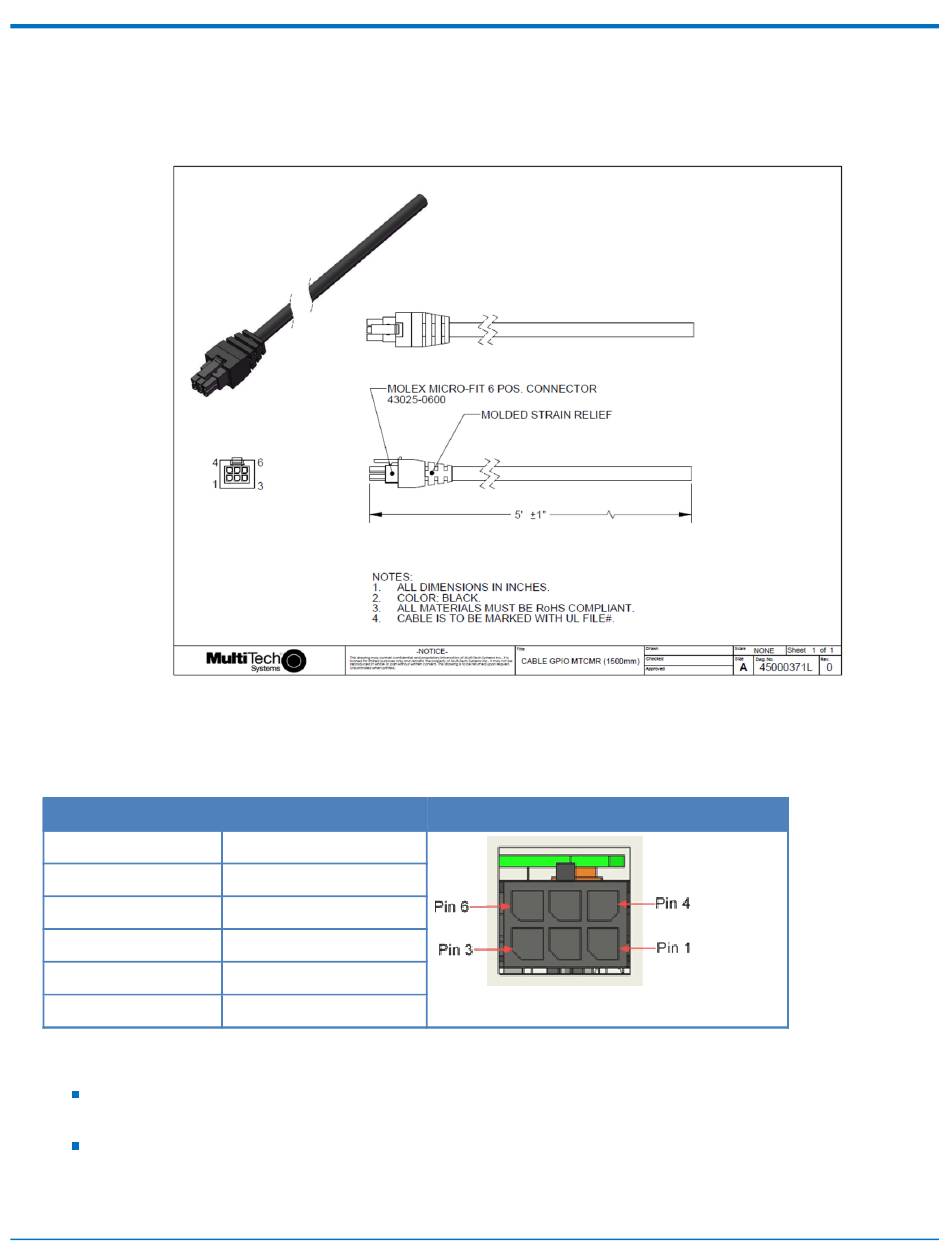

GPIO Cable

GPIO Connector

Use Universal IP (UIP) AT Commands to configure GPIO pins. Refer to the Universal IP (UIP) AT Command
Reference Guide for more information.
Pin Number
Pin 1
Pin 2
Pin 3
Pin 4
Pin 5
Pin 6
You can program GPIO pins independently.
Pin 1 Digital Input, 24 Volt tolerant. The circuit consists of an opto-coupler with a 3.01K resistor in series
with the diode.
Pin 2 Digital Input, 24 Volt tolerant. The circuit consists of an opto-coupler with a 3.01K resistor in series
with the diode.
®
MultiModem iCell MTCMR User Guide
Description
DIO 0
DIO 1
DIO 2/ADC 0
DIO 3/ADC 1
ADC2
Gnd
GPIO 6-pin Connector
LEDS, CONNECTORS, AND SPECIFICATIONS
