Global Positioning System (GPS)
Technical Specifications
Receiver Type
Accuracy
Open Sky TTFF
Sensitivity Tracking
Update Rate
Dynamics
Operational Limits
Datum
Interface
Protocol
Global Positioning System (GPS) – Underwriters Laboratories, Inc. Statement
Underwriters Laboratories Inc. ("UL") has not tested the performance or reliability of the Global Positioning
System ("GPS") hardware, operating software or other aspects of this product. UL has only tested for fire, shock or
casualties as outlined in UL's Standard(s) for Safety. UL60950‐1 Certification does not cover the performance or
reliability of the GPS hardware and GPS operating software. UL MAKES NO REPRESENTATIONS, WARRANTIES OR
CERTIFICATIONS WHATSOEVER REGARDING THE PERFORMANCE OR RELIABILITY OF ANY GPS RELATED
FUNCTIONS OF THIS PRODUCT.

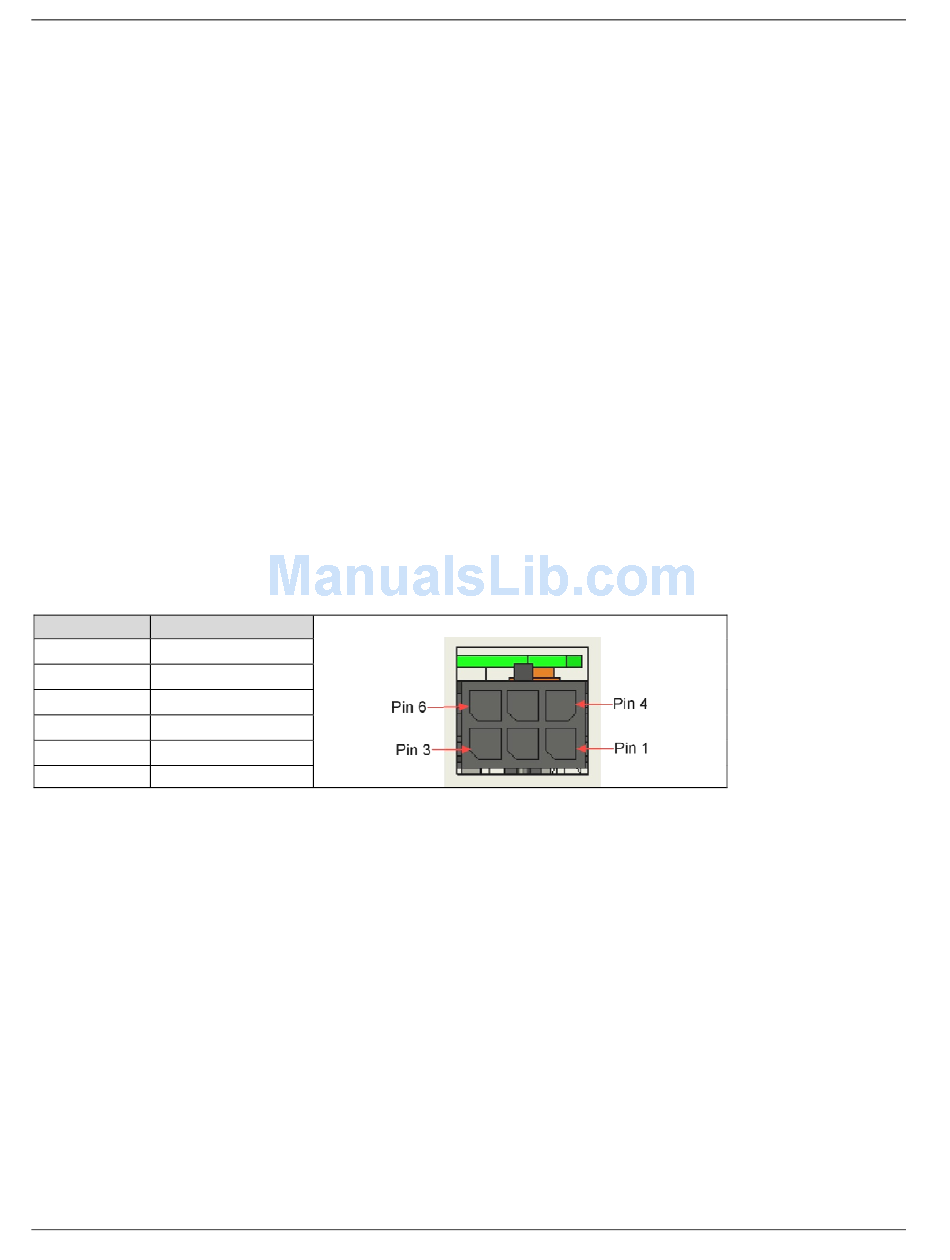

GPIO (General Purpose Input/Output) Connector
You can configure the GPIO pins by using Universal IP (UIP) AT Commands. Refer to the Universal IP (UIP) AT
Command Reference Guide that you can find on the Multi‐Tech website. The following table explains the pins.
Pin Number Description
Pin 1 DIO 0
Pin 2 DIO 1
Pin 3 DIO 2 / ADC 0
Pin 4 DIO 3 / ADC 1
Pin 5 ADC 2
Pin 6 Gnd
You can configure the GPIO pins independent of each other.
●
Pin 1 Digital Input, 24 Volt tolerant.
●
Pin 2 Digital Input, 24 Volt tolerant.
●
You can configure Pin 3 as either Digital Input (5V tolerant TTL/CMOS levels) or Digital Output (3.3V High) or
as an ADC input (0 to 3.3V rail)
●
You can configure Pin 4 as either Digital Input (5V tolerant TTL/CMOS levels) or Digital Output (3.3V High) or
as an ADC input (0 to 3.3V rail)
●
Pin 5 is configured as an ADC input (0 to 3.3V rail)
●
Pin 6 is GND and must be connected to the ground of the attached device
23
L1 Frequency, GPS C/A code, SBAS Capable, 51 Channel Acquisitions,
14 Channel Tracking
Position 2.5m CEP, Velocity 0.1m/sec
Hot start 1 second, Cold start 29 seconds average, Reacquisition <1s
‐161dBm
1 Hz standard
4G
Altitude <18,000m or Velocity < 515m/s
Default WGS‐84
UART
NMEA‐0183 V3.01, GGA, GLL, GSA, GSV, RMC, VTG
GPIO 6‐PinConnector
Chapter 1—Product Description and Specifications
Multi‐Tech Systems, Inc. MultiModem iCell User Guide
