Summary of Contents for Multitech MultiModem iCell

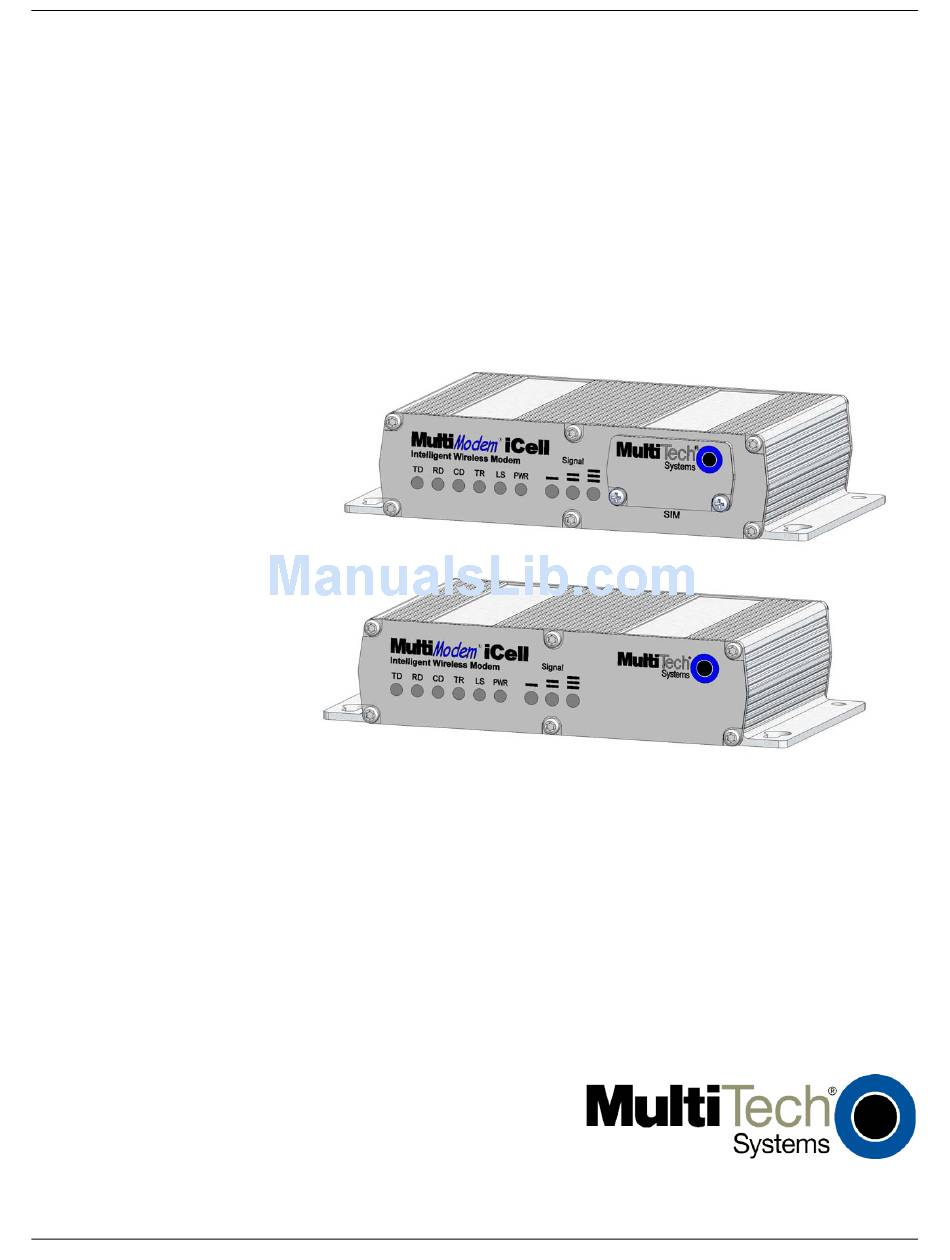

- Page 1 ® MultiModem iCell Intelligent Wireless Modem User Guide...
- Page 2 By Phone Europe, Middle East, Africa: support@multitech.co.uk +(44) 118 959 7774 U.S., Canada, all others: support@multitech.com (800) 972-2439 or (763) 717-5863 Warranty To read the warranty statement for your product, please visit: http://www.multitech.com/warranty.go Multi-Tech Systems, Inc. MultiModem iCell User Guide...
-
Page 3: Table Of Contents
Appendix C – Environmental Information ....................... 27 Waste Electrical and Electronic Equipment (WEEE) Statement .................... 27 REACH Statement ................................. 27 Restriction of the Use of Hazardous Substances (RoHS) ...................... 28 C – RoHS ....................................29 INDEX ..................................30 Multi-Tech Systems, Inc. MultiModem iCell User Guide... -
Page 4: Chapter 1 - Product Description And Specifications
The MultiModem iCell modem is designed around a wide variety of interface options including serial RS-232, USB, and General Purpose Input/Output (GPIO). The serial RS-232 and USB connections provide seamless connectivity for configuration of your application. -
Page 5: Related Documentation
Related Documentation Universal IP All MultiModem iCell modems are equipped with an embedded TCP/IP protocol stack to automate the connection process and open a socket for bidirectional data transmission. Multi-Tech’s Universal IP supports Telnet, SMTP/POP, FTP, TCP, UDP, PPP as well as other automatic call management options. -
Page 6: Safety
All devices must be handled with certain precautions to avoid damage due to the accumulation of static charge. Although input protection circuitry has been incorporated into the devices to minimize the effect of this static build up, proper precautions should be taken to avoid exposure to electrostatic discharge during handling and mounting. Multi-Tech Systems, Inc. MultiModem iCell User Guide... -
Page 7: Front Panel
Your back panel will differ only if you have purchased the optional GP model that has an additional connector for a GPS antenna. The GPS antenna connector is located between the power connector and the RS-232 connector. The far right connector is for the wireless antenna. MTCMR-xx MTCMR-xx-GP (GPS antenna) Multi-Tech Systems, Inc. MultiModem iCell User Guide... -
Page 8: Specifications
“UL has evaluated this device for use in ordinary locations only. Installation in a vehicle or other outdoor locations has not been evaluated by UL. UL Certification does not apply or extend to use in vehicles or outdoor applications or in ambient above 40° C.” Multi-Tech Systems, Inc. MultiModem iCell User Guide... -
Page 9: Power
1850 to 1910 MHz 824 to 849 MHz 1850 to 1910 MHz RF Power Stand 2W at 12.5% duty cycle 2W at 12.5% duty cycle 1W at 12.5% duty cycle 1W at 12.5% duty cycle Multi-Tech Systems, Inc. MultiModem iCell User Guide... -
Page 10: Antenna Specifications
20 cm from all persons and must not transmit simultaneously with any other antenna transmitters. User and installers must be provided with antenna installation instructions and transmitter operating conditions to satisfying RF exposure compliance. Multi-Tech Systems, Inc. MultiModem iCell User Guide... -
Page 11: Global Positioning System (Gps)
Standard(s) for Safety. UL60950-1 Certification does not cover the performance or reliability of the GPS hardware and GPS operating software. UL MAKES NO REPRESENTATIONS, WARRANTIES OR CERTIFICATIONS WHATSOEVER REGARDING THE PERFORMANCE OR RELIABILITY OF ANY GPS RELATED FUNCTIONS OF THIS PRODUCT. Multi-Tech Systems, Inc. MultiModem iCell User Guide... -
Page 12: Gpio (General Purpose Input/Output) Connector
Serial Cable Female Connector Signal IN/OUT Pin 1 CD Pin 2 RX Pin 3 TX Pin 4 DTR Pin 5 GND Pin 6 DSR Pin 7 RTS Pin 8 CTS Pin 9 RI Multi-Tech Systems, Inc. MultiModem iCell User Guide... -
Page 13: Chapter 2 - Activation And Installation
When changing a SIM, ensure that power is removed from the unit. Insert the SIM card into the card holder. The above graphic illustrates the correct SIM card orientation. Verify that the SIM card fits into the holder properly and then replace the cover. Multi-Tech Systems, Inc. MultiModem iCell User Guide... -
Page 14: Connect The Antenna, Serial Cable, Gpio Cable, And Power
For automotive application: according to the type of application, you can use permanent “+” or key-switched “+” source. Connect the power supply to its source (for example, in a mobile situation, to the vehicle’s DC fuse/terminal block). Multi-Tech Systems, Inc. MultiModem iCell User Guide... -
Page 15: Optional - Attach The Modem To A Flat Surface
Note: No matter what orientation is used for mounting your MultiModem, the antenna should always be vertical and pointing upwards as the floor or ground may impede the performance of the antenna. The modem can be panel mounted with screws spaced according to the measurement shown. Multi-Tech Systems, Inc. MultiModem iCell User Guide... -
Page 16: Usb Virtual Com Port Installation
Click on the Preinstall Windows Drivers button from the main splash screen of the CD. Windows may pop-up a User Account Control window. Select the Continue button to continue with the driver installation. Click on the Next button to start the driver pre-installation. Multi-Tech Systems, Inc. MultiModem iCell User Guide... -
Page 17: Install The Modem Driver
Install the Modem Driver Click on the Control Panel button from the main splash screen on the CD. The Control Panel is displayed; double-click on Phone and Modem Options icon. Then click on the Modems tab. Multi-Tech Systems, Inc. MultiModem iCell User Guide... - Page 18 On the Install New Modem screen, click Don’t detect my modem, I will select it from a list. Then click Next >. On the Install New Modem screen, click the Have Disk button to browse for the driver file on the MultiModem CD. Then click Next>. Multi-Tech Systems, Inc. MultiModem iCell User Guide...
- Page 19 Select the MTSMCIP_MTCMRIP.INF file. Then click OK. In the Models window, scroll down the list of Models and select the model that is applicable to your modem. Once you have selected your model, click on Next>. Multi-Tech Systems, Inc. MultiModem iCell User Guide...
-
Page 20: Verifying That Your Modem Has Been Installed Successfully
If this process passes, then the modem should be properly installed and ready for use. Click OK to close the modem Properties window. Then click on OK to close the Phone and Modem Options window. Multi-Tech Systems, Inc. MultiModem iCell User Guide... -
Page 21: Chapter 3 - Using Your Wireless Modem
Checking the Modem’s Identity Use the ATI command (Note: This command is illustrated using the capital letter I after AT) ● Type ATI0 (Note: The command ends in a zero) The manufacturing data displays. Multi-Tech Systems, Inc. MultiModem iCell User Guide... -
Page 22: Connecting To The Internet
Connecting to the Internet Internet access can be setup in Windows Dial-Up Networking (DUN) of the computer that the MultiModem iCell is serving. For a GPRS network, you have to create an Access Point Name in the Phone and Modem Options dialog in Windows Control Panel and then create your Windows Dial-Up Connection (DUN). -
Page 23: Create Your Dial-Up Connection In Windows Vista And Xp
To disconnect the connection, right click on the connection icon in your system tray at the bottom right-hand corner of your screen. Scroll up and click on Disconnect. You should now be disconnected from the Internet. Multi-Tech Systems, Inc. MultiModem iCell User Guide... -
Page 24: Generic Dial-Up Method - Non-Windows
Serial Baud Rate Your MultiModem iCell is defaulted to a serial baud rate of 115200 from the factory. To enjoy faster baud rates, you can manually set the modem to a higher speed (230400, 460800, or 921600) using the AT+IPR=<baudspeed>. However, you must make sure the host serial port is capable of the new speed. -
Page 25: Appendix A - Regulatory Compliance
Industry Canada This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations. Cet appareil numérique de la classe B respecte toutes les exigences du Reglement Canadien sur le matériel brouilleur. Multi-Tech Systems, Inc. MultiModem iCell User Guide... -
Page 26: Appendix B - Dc Power Cable
Appendix B – DC Power Cable DC Power Cable Dimensions Multi-Tech Systems, Inc. MultiModem iCell User Guide... -
Page 27: Appendix C - Environmental Information
This data is controlled as a part of a formal quality system and will be made available upon request. Multi-Tech Systems, Inc. MultiModem iCell User Guide... -
Page 28: Restriction Of The Use Of Hazardous Substances (Rohs)
Lead usage in some components is exempted by the following RoHS annex; therefore, higher lead concentration could be found. Lead in high melting temperature type solders (i.e., tin-lead solder alloys containing more than 85% lead). Lead in electronic ceramic parts (e.g., piezoelectronic devices). Multi-Tech Systems, Inc. MultiModem iCell User Guide... -
Page 29: C - Rohs
六价铬 多溴联苯 多溴二苯醚 成分名称 (PB) (Hg) (CR6+) (PBDE) (CD) (PBB) 印刷电路板 电阻器 电容器 铁氧体磁环 继电器/光学部件 二极管/晶体管 振荡器和晶振 调节器 电压传感器 变压器 扬声器 连接器 螺丝、螺母以及 其它五金件 交流-直流电源 软件/文档 CD 手册和纸页 底盘 表示所有使用类似材料的设备中有害/有毒物质的含量水平高于 SJ/Txxx-2006 限量要求。 表示不含该物质或者该物质的含量水平在上述限量要求之内。 Multi-Tech Systems, Inc. MultiModem iCell User Guide... -
Page 30: Index
GPS Specifications ..............11 Signal Strength ................21 GPS UL Statement ..............11 Technical Specifications ............... 8 Handling Precautions ..............6 Temperatures ................8 International Modem Restrictions ..........25 WEEE Statement ................ 27 LED ....................7 Multi-Tech Systems, Inc. MultiModem iCell User Guide...
