Connect the Antenna, Serial Cable, GPIO
Cable, and Power
● Antenna.
● Serial Cable.
● USB Cable.
● GPIO Cable.
● Power Source.
6
Downloaded from Elcodis.com electronic components distributor

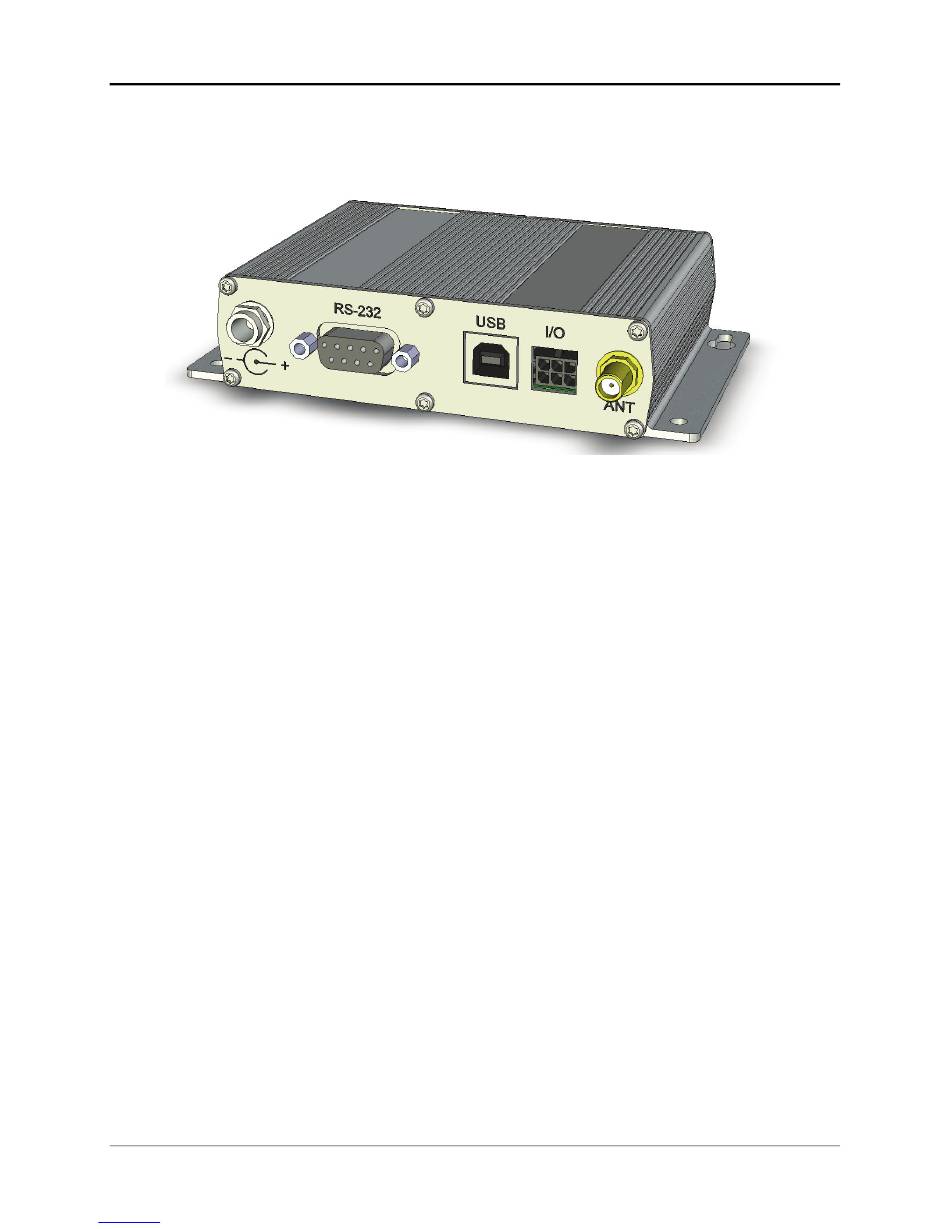

Connect a suitable antenna to the SMA connector
(see the User Guide for antenna/RF specifications).
Connect DB9 connector (9-pin) end of the
serial cable to the RS232 connector on the modem and the
other end to the serial port on the PC.
The USB connector is provided for future use.
Connect the GPIO cable to the I/O connector
on the modem and the other end to the external device that
the modem is monitoring.
Depending on the power source, connect
either the power supply module with the appropriate blade or
the optional DC power cable.
● Power for Power Supply Module:
● Remove protective shipping cover
● Attach the appropriate interchangeable blade to the
power supply module.
● Screw-on the power lead to the power connection on
the modem. Now, plug the power supply module into
the power source.
● Power for Optional Direct DC Power Connection:
● Screw-on the DC power cable to the power connector
on the modem.
Multi-Tech Systems, Inc. Quick Start Guide
