Unmounting a DIN Rail Unit

If the need arises, the IPCP Pro 350DR or IPCP Pro 355DR can be removed from the DIN
rail, whether or not cables are still attached. Remove or unmount the unit as follows:
1.
2.

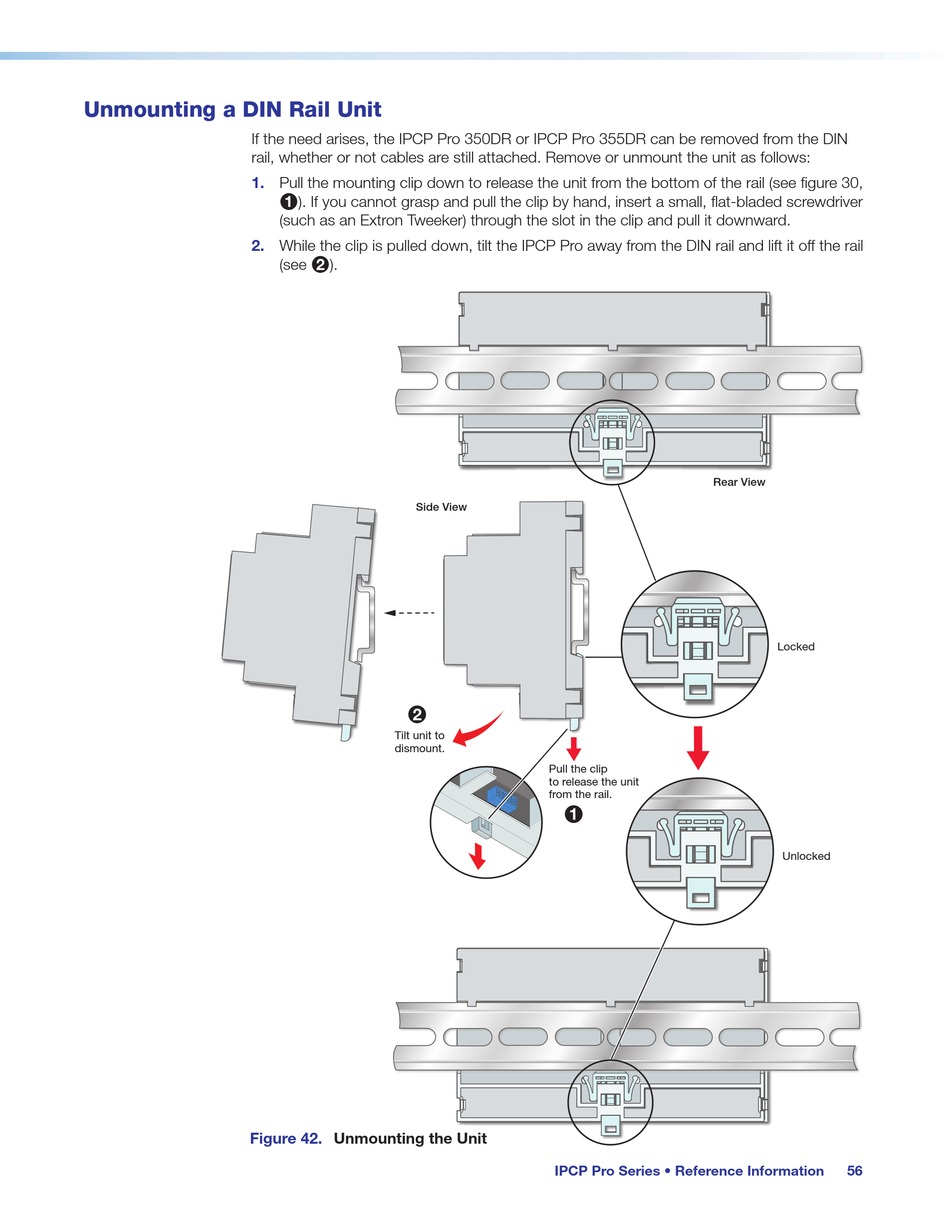

Figure 42.
Pull the mounting clip down to release the unit from the bottom of the rail (see figure 30,
). If you cannot grasp and pull the clip by hand, insert a small, flat-bladed screwdriver
1
(such as an Extron Tweeker) through the slot in the clip and pull it downward.
While the clip is pulled down, tilt the IPCP Pro away from the DIN rail and lift it off the rail
(see ).
2
Side View
2
Tilt unit to
dismount.
Unmounting the Unit
Rear View
Pull the clip
to release the unit
from the rail.
1
