User's Manual
IRCM-DV+ Control Module
Control Accessory
68-689-01 Rev. A
07 02
Printed in the USA
Advertisement
Table of Contents
Related Manuals for Extron electronics IRCM-DVplus
Summary of Contents for Extron electronics IRCM-DVplus
- Page 1 3-9-1 Kudan Minami 68-689-01 Rev. A Singapore 368363 Chiyoda-ku, Tokyo 102-0074 Japan The Netherlands 714.491.1500 +31.33.453.4040 +65.6383.4400 +81.3.3511.7655 07 02 www.extron.com Fax 714.491.1517 Fax +31.33.453.4050 Fax +65.6383.4664 Fax +81.3.3511.7656 Printed in the USA © 2002 Extron Electronics. All rights reserved.
- Page 2 Reparaciones/mantenimiento • Solicitar siempre los servicios técnicos de personal particular use. In no event will Extron Electronics be liable for direct, indirect, or calificado. En el interior no hay partes a las que el usuario deba acceder. Para Precaucion evitar riesgo de electrocución, no intentar personalmente la reparación/...
- Page 3 Quick Start Guide — IRCM-DV+ Installation and service must be performed by authorized CAUTION personnel only. See “UL Requirements”, page 2-2. ™ The MediaLink Controller (MLC) to which the IRCM-DV+ is connected must have MLC firmware version 1.04 or higher in order to work with the IRCM-DV+. To set up the IRCM-DV+ you must use MediaLink Control Software version 2.0 or higher.
-
Page 4: Table Of Contents
Table of Contents Quick Start Guide — IRCM-DV+, cont’d Step 6 Chapter 1 • Introduction ............1-1 Connect IR Emitters (one per each VCR, DVD player, or other device About the IRCM-DV+ ............1-2 being controlled) to the MLC (see pages 2-5 and 2-6), and affix each Features emitter .................. -
Page 5: Chapter 1 • Introduction
Table of Contents, cont’d IRCM-DV+ Chapter One Introduction About the IRCM-DV+ Features IRCM-DV+ • Table of Contents... -
Page 6: About The Ircm-Dv

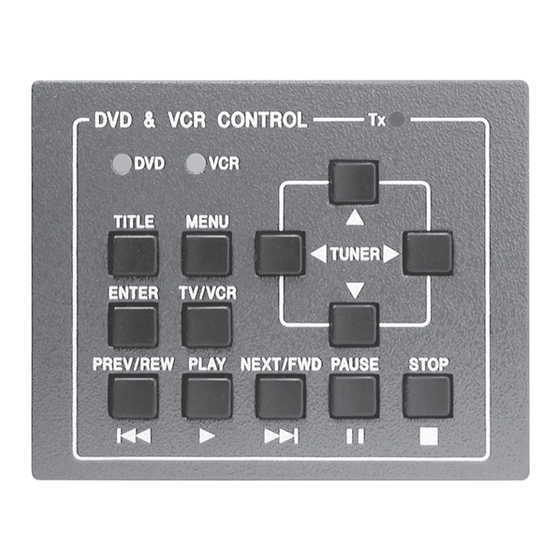

Introduction About the IRCM-DV+ IRCM-DV+ The Extron IRCM-DV+ is a hardwired remote control keypad designed for use with an Extron MediaLink Controller (MLC). Refer to the MediaLink Controllers User’s Manual for information on installing, operating, and setting up the controller. All setup and IR command learning must be done via RS-232. -
Page 7: Ul Requirements
Installation and Operation CAUTION Installation and service must be performed by Rear Panel Connectors authorized personnel only. This product should be and Switches used with a UL approved electrical box. See “UL Requirements”, page 2-3. The MLC to which the IRCM-DV+ is connected must have MLC firmware version 1.04 or higher in order to work with the IRCM-DV+. -
Page 8: Cabling
Installation and Operation, cont’d Cabling For each control module to be connected to an MLC, set the rear panel DIP switches, then follow these steps: If it wasn’t already done when the wall box was installed, cut a length of Extron Comm-Link cable to go between the MLC and the control module. -
Page 9: Front Panel Features And Operation
Installation and Operation, cont’d Front Panel Features and Operation To an MLS 306/506 Series Switcher or a 12VDC Power Supply MLM Faceplate (rear) IRCM-DV+ MLC 206 DVD & VCR CONTROL Control Module Rear View Rear View TITLE MENU TUNER ENTER TV/VCR Additional Control Module Rear View... -
Page 10: Using Ir Learning To Set Up The Buttons
Installation and Operation, cont’d Using IR Learning to Set Up the Buttons Before the IRCM’s buttons can control a VCR and a DVD player, you must connect the module and “teach” the MLC the control signals for each button (a process called “IR learning”). Refer to the MediaLink Control Program and the MediaLink Controllers User’s Manual for details on the IR learning procedure, see page 2-7 of this manual for IR Emitter and IR Broadcaster wiring... -
Page 11: Testing/Troubleshooting
Installation and Operation, cont’d commands are sent to all devices (VCR, DVD, projector) 4B. If power is present at the MLC, at the control at the same time because the IR Emitters and/or module, and at the VCR and DVD, but the VCR and/ IR Broadcaster share the MLC’s Display/Source Control or DVD does not respond when a button is pressed: IR port. -
Page 12: Appendix A • Specifications
Installation and Operation, cont’d IRCM-DV+ A ppendix A Specifications, Part Numbers, Accessories, and Dimensions Specifications Included Parts Accessories Cables Dimensions Index IRCM-DV+ • Installation and Operation 2-12... -
Page 13: Specifications
Specifications, Part #s, Accessories, Dimensions Specifications Included Parts These items are included in each order for a control module: General Included parts Part number Power ..........12VDC from an MLC 206’s power supply or a System 5xi IRCM-DV+ (gray, black, white) 70-220-01, -02, -03 Temperature/humidity .... -
Page 14: Dimensions
Specifications, Part Numbers, Accessories, cont’d Dimensions Index The following diagram has been reduced to fit on the page. All dimensions are given in inches. The symbol “ø“ indicates a accessories A-3 MediaLink Control diameter. Program and IR learning 2-9 .160 MAX. - Page 15 Specifications, Part Numbers, Accessories, cont’d Control Modules • Specifications, Part #s, Dimensions...
