This port provides power to eBUS devices. If the power draw by the connected
devices reaches the maximum level allowed, the eBUS Limit LED lights. If the power
consumption exceeds the allowed threshold, the IPCP shuts off the eBUS port and
lights the eBUS Overload (Over) LED. If that occurs, you must resolve the hardware
cause of the power overload before the IPCP can successfully restore function to this
port. Once the power consumption of the port is reduced to below the maximum
overload condition threshold, the eBUS port automatically re-enables and resumes
function.
If additional power supplies are required for an eBUS system, consider the following:
Do not connect power from both the IPCP and the supplemental power supply to
•
any eBUS device.
Do not allow power from the supplemental power supply to flow to the IPCP.
•
See the following diagram as an example of a system where both an IPCP and a
supplemental power supply are included in the eBUS topology.
EBDB MINI
Rear Panel
(or use
an EBDB
10-port hub)
ATTENTION:
• Do NOT connect the power pin to
ATTENTION:
Do NOT
any device that is already powered
connect the power pin
by the IPCP Pro control processor
to any device that is
or by an additional power supply.
already powered by the
• NE connectez PAS la broche
IPCP Pro control
d'alimentation à un appareil déjà
processor or by an
alimenté par le processeur de
additional power supply.
contrôle IPCP Pro ou par une autre
source d'alimentation.
Figure 39.
eBUS DISTRIBUTION HUB
• Connect up to four (4) eBUS devices to the
+ V + S - S G + V + S - S G + V + S - S G
• Wire the connectors the same at both ends.
X
+S -S G +V +S -S G +V +S -S G
+V
+S
-S
IPCP Pro
Rear Panel
Powered
+S -S G
eBUS
device(s)
Tie drain wires to ground.

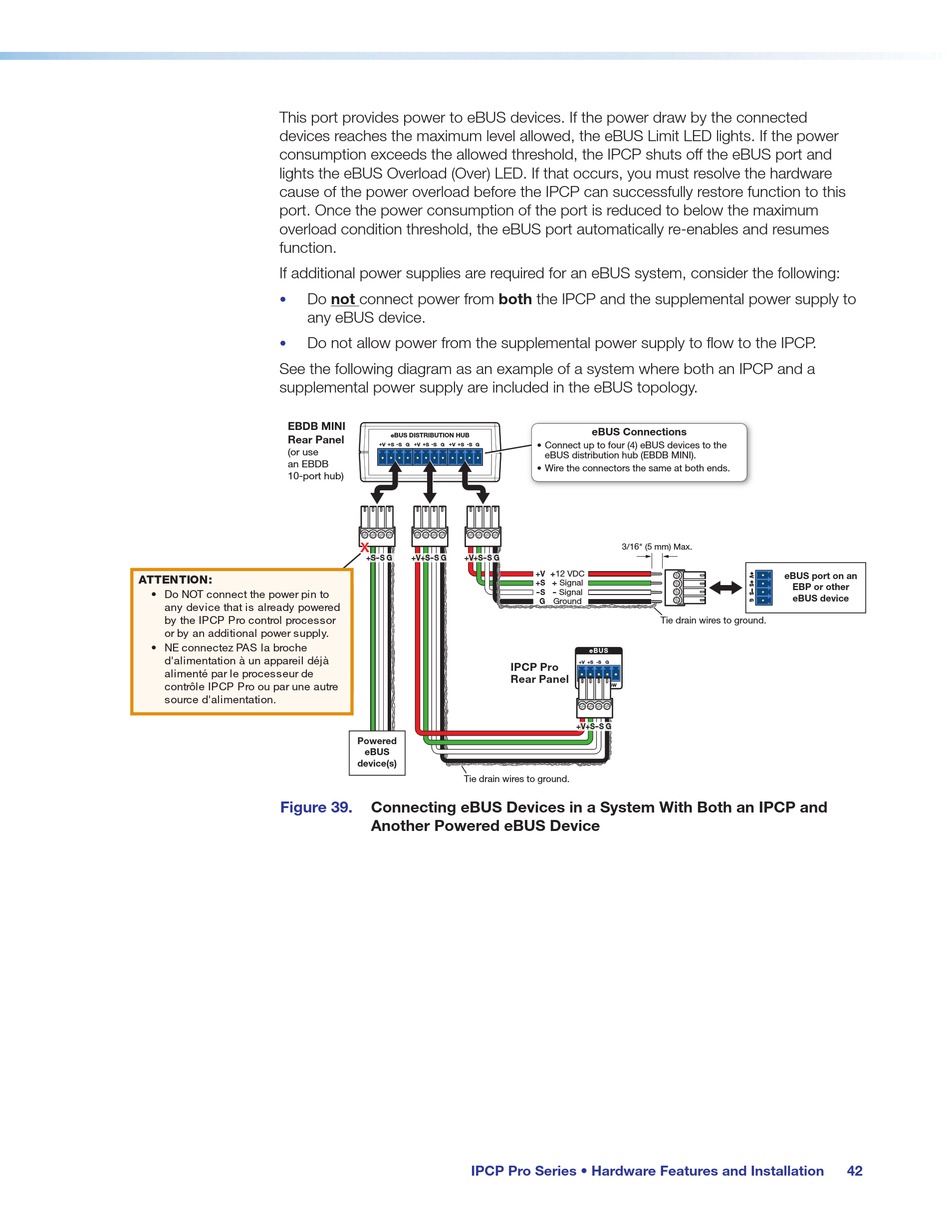

Connecting eBUS Devices in a System With Both an IPCP and
Another Powered eBUS Device
