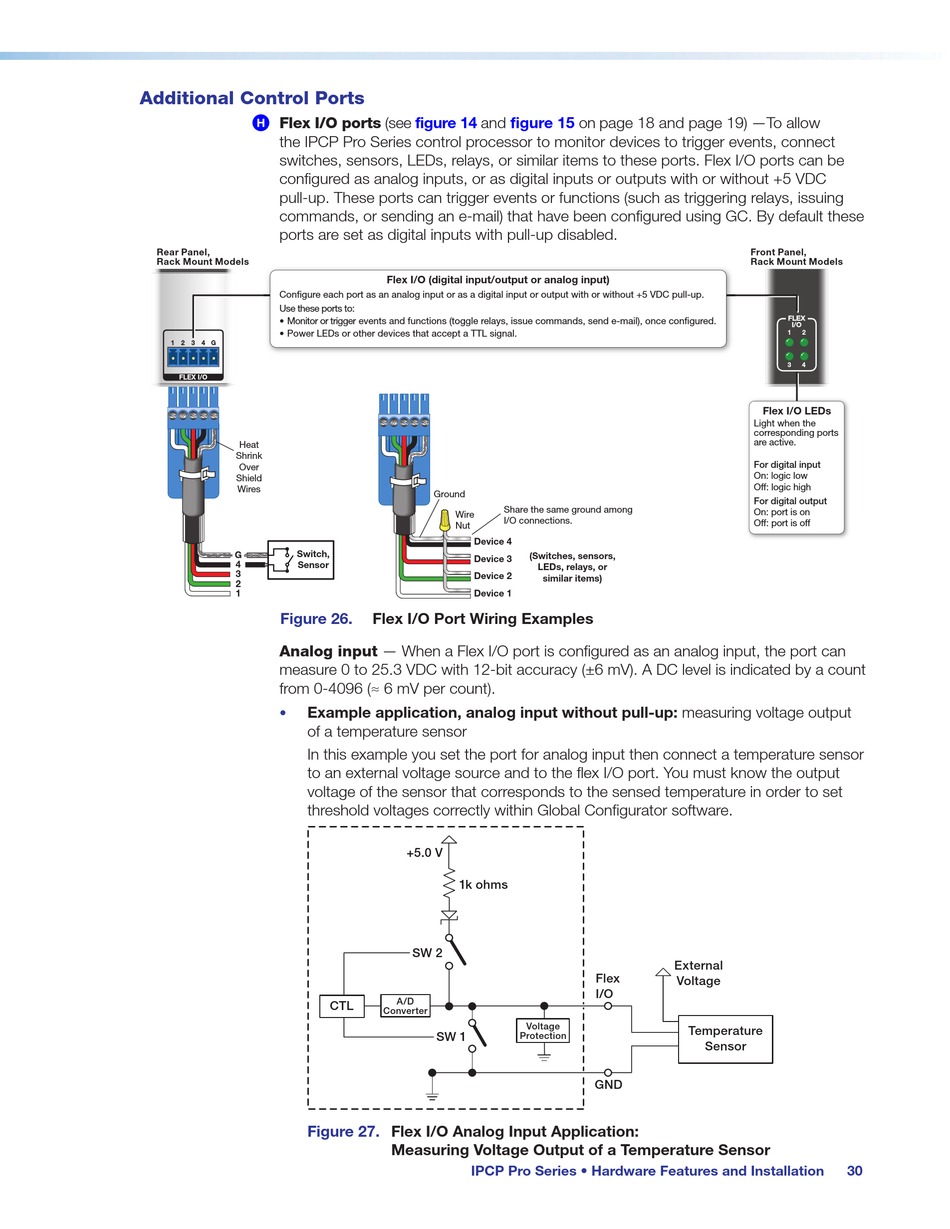

Additional Control Ports

Flex I/O ports (see
H
the IPCP Pro Series control processor to monitor devices to trigger events, connect
switches, sensors, LEDs, relays, or similar items to these ports. Flex I/O ports can be
configured as analog inputs, or as digital inputs or outputs with or without +5 VDC
pull-up. These ports can trigger events or functions (such as triggering relays, issuing
commands, or sending an e-mail) that have been configured using GC. By default these
ports are set as digital inputs with pull-up disabled.
Rear Panel,
Rack Mount Models
Con gure each port as an analog input or as a digital input or output with or without +5 VDC pull-up.
Use these ports to:
• Monitor or trigger events and functions (toggle relays, issue commands, send e-mail), once con gured.
• Power LEDs or other devices that accept a TTL signal.
1 2 3 4 G
FLEX I/O
Heat
Shrink
Over
Shield
Wires
Switch,
G
4 Sensor
3
2
1
Figure 26.
Analog input — When a Flex I/O port is configured as an analog input, the port can
measure 0 to 25.3 VDC with 12-bit accuracy (±6 mV). A DC level is indicated by a count
from 0-4096 (≈ 6 mV per count).
Example application, analog input without pull-up: measuring voltage output
•
of a temperature sensor
In this example you set the port for analog input then connect a temperature sensor
to an external voltage source and to the flex I/O port. You must know the output
voltage of the sensor that corresponds to the sensed temperature in order to set
threshold voltages correctly within Global Configurator software.
Figure 27.
figure 14 and
Flex I/O (digital input/output or analog input)
Ground
Share the same ground among
Wire
I/O connections.
Nut
Device 4
Device 3
Device 2
Device 1
Flex I/O Port Wiring Examples
+5.0 V
1k ohms
SW 2
A/D
CTL
Converter
SW 1
Flex I/O Analog Input Application:
Measuring Voltage Output of a Temperature Sensor
IPCP Pro Series • Hardware Features and Installation
figure 15 on page 18 and page 19) —To allow
(Switches, sensors,
LEDs, relays, or
similar items)
External
Flex
Voltage
I/O
Voltage
Temperature
Protection
GND
Front Panel,
Rack Mount Models
FLEX
I/O
1 2
3 4
Flex I/O LEDs
Light when the
corresponding ports
are active.
For digital input
On: logic low
Off: logic high
For digital output
On: port is on
Off: port is off
Sensor
