G
Front/Bottom Panel, Rear Panels, Rack Mount Models
DIN Rail Models
RELAYS
1 2
1 2 C 3 4 C
5 6
RELAYS
Common
Relay 2
Relay 1

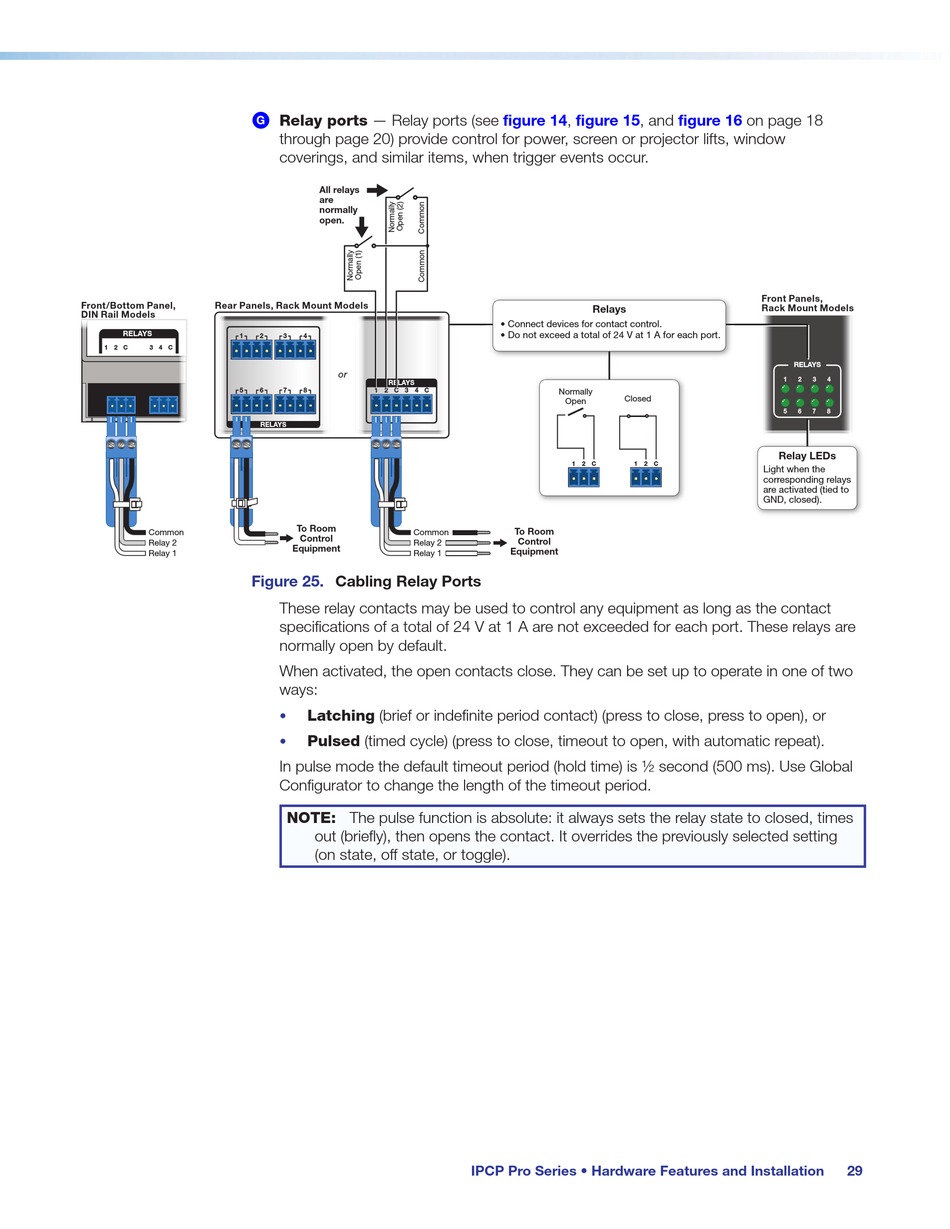

Figure 25.
Relay ports — Relay ports (see
through page 20) provide control for power, screen or projector lifts, window
coverings, and similar items, when trigger events occur.
All relays
are
normally
open.
3 4
or
RELAYS
7 8 1 2 C 3 4 C
To Room
Common
Control
Relay 2
Equipment
Relay 1
Cabling Relay Ports
These relay contacts may be used to control any equipment as long as the contact
specifications of a total of 24 V at 1 A are not exceeded for each port. These relays are
normally open by default.
When activated, the open contacts close. They can be set up to operate in one of two
ways:
Latching (brief or indefinite period contact) (press to close, press to open), or
•
Pulsed (timed cycle) (press to close, timeout to open, with automatic repeat).
•
In pulse mode the default timeout period (hold time) is ½ second (500 ms). Use Global
Configurator to change the length of the timeout period.
NOTE: The pulse function is absolute: it always sets the relay state to closed, times
out (briefly), then opens the contact. It overrides the previously selected setting
(on state, off state, or toggle).
figure 14, figure 15, and
Relays
• Connect devices for contact control.
• Do not exceed a total of 24 V at 1 A for each port.
Normally
Closed
Open
1 2 C 1 2
To Room
Control
Equipment
IPCP Pro Series • Hardware Features and Installation
figure 16 on page 18
Front Panels,
Rack Mount Models
RELAYS
1 2 3 4
5 6 7 8
Relay LEDs
C
Light when the
corresponding relays
are activated (tied to
GND, closed).
