Corporate
TCP/IP PC
Network
Ethernet
Insert Twisted
Pair Wires
Rear Panels,
Rack Mount Models
RJ-45
Connector
Pins:
8 7 6 5 4 3 2 1
LAN Bottom Panel
Port IPCP Pro 355DR
AV LAN Port
For models with AV LAN: Connect the PC that you will use for setup, the control
processor, and the touchpanels to the Ethernet network. Pay careful attention to the
default IP addresses.
PC
Corporate
TCP/IP
Network
Ethernet
Activity Link
MAC: 00-05-A6-XX-XX-XX
S/N: ####### E######
LED LED
LAN
A A V
LA A N
MAC: 00-0 0 5-A6-YY-YY-Y YY-Y Y
S/N: #### # ### E###### E###
or
00- - 0 0 5-A6-XX-XX-X X X 00-05-A6-XX-XX-XX
MAC: 00 00-05-A6-XX-XX X -XX MAC: 00-05-A6-YY-YY-YY
IPCP AV LAN
S/N: # # ## # #### E### # ### S/N: ####### E######
A A A V A V LAN LAN
1 2 3
Po o E+ OUT PoE+ O UT O

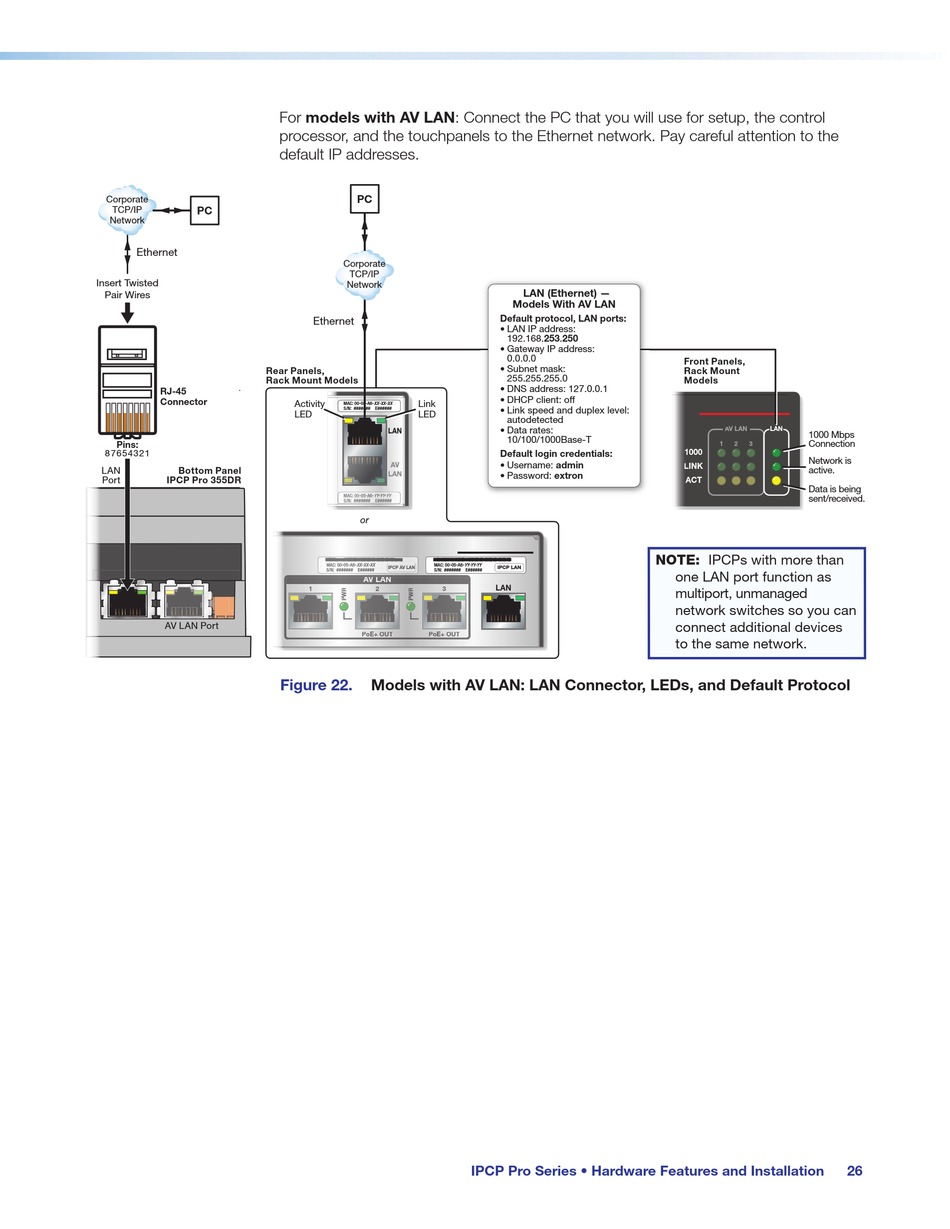

Figure 22. Models with AV LAN: LAN Connector, LEDs, and Default Protocol
LAN (Ethernet) —
Models With AV LAN
Default protocol, LAN ports:
• LAN IP address:
192.168.253.250
• Gateway IP address:
0.0.0.0
• Subnet mask:
255.255.255.0
• DNS address: 127.0.0.1
• DHCP client: off
• Link speed and duplex level:
autodetected
• Data rates:
10/100/1000Base-T
Default login credentials:
• Username: admin
• Password: extron
IPCP LAN
LAN
IPCP Pro Series • Hardware Features and Installation
Front Panels,
Rack Mount
Models
AV LAN LAN
1000 Mbps
Connection
1 2 3
1 1000
Network is
LINK L
active.
ACT
Data is being
sent/received.
NOTE: IPCPs with more than
one LAN port function as
multiport, unmanaged
network switches so you can
connect additional devices
to the same network.
