TLP 350MV • Setup Guide
Overview

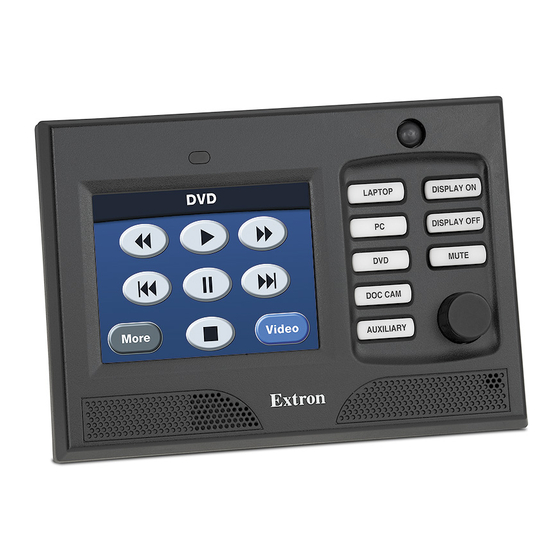

The Extron TLP 350MV is a wall-mounted TouchLink
®
provides simple and versatile configuration and control for a range
of IP Link ® control systems.
Graphic and text objects are displayed on the screen. These objects
have system control functions associated with them and the
Touchpanel allows you to control those functions.
Two BNC connectors allow the screen to be used to preview composite video or S-video.
NOTE: The RJ-45 output on the rear panel of the TLP 350MV must be connected to a network switch, hub, or router that
is connected to an Ethernet LAN or the Internet. An Extron IP Link controller must also be connected to the same
network. Suggested models include IPL T S series (for example, IPL T S4), IPL 250, IPL T CR48, or IPL T SFI244 .
This guide provides basic instructions for experienced installers to mount and perform initial configuration on the
TLP 350MV. Full instructions and reference material can be found in the TLP 350MV User Guide, which is available on the
Extron Web site (www.extron.com).
TLP 350MV Front Panel Features
1
2
3

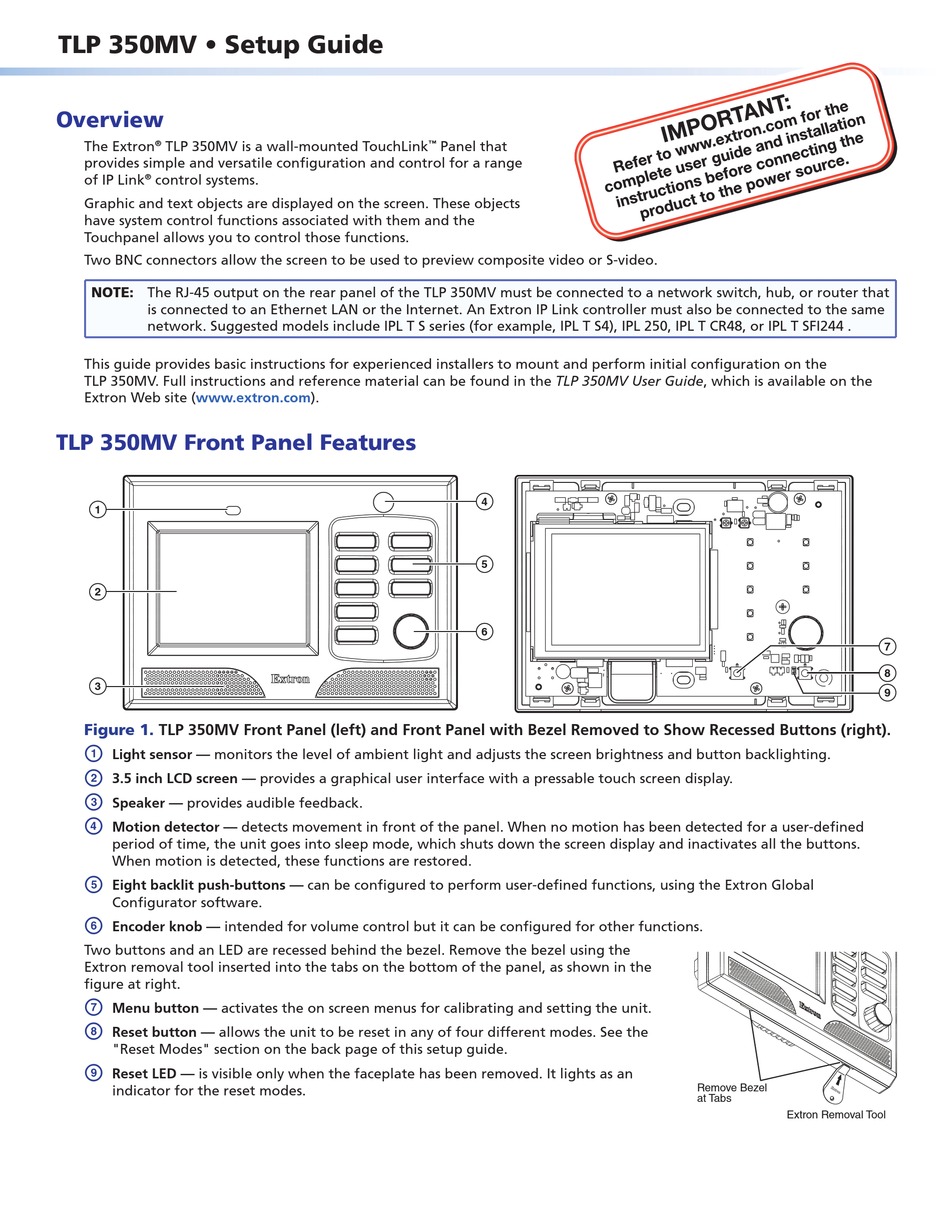

Figure 1. TLP 350MV Front Panel (left) and Front Panel with Bezel Removed to Show Recessed Buttons (right).
a
Light sensor — monitors the level of ambient light and adjusts the screen brightness and button backlighting.
b
3.5 inch LCD screen — provides a graphical user interface with a pressable touch screen display.
c
Speaker — provides audible feedback.
d
Motion detector — detects movement in front of the panel. When no motion has been detected for a user-defined
period of time, the unit goes into sleep mode, which shuts down the screen display and inactivates all the buttons.
When motion is detected, these functions are restored.
e
Eight backlit push-buttons — can be configured to perform user-defined functions, using the Extron Global
Configurator software.
f
Encoder knob — intended for volume control but it can be configured for other functions.
Two buttons and an LED are recessed behind the bezel. Remove the bezel using the
Extron removal tool inserted into the tabs on the bottom of the panel, as shown in the
figure at right.
g
Menu button — activates the on screen menus for calibrating and setting the unit.
h
Reset button — allows the unit to be reset in any of four different modes. See the
"Reset Modes" section on the back page of this setup guide.
i
Reset LED — is visible only when the faceplate has been removed. It lights as an
indicator for the reset modes.
Panel that
™
4
5
6
Remove Bezel
at Tabs
Extron Removal Tool
7
8
9
