Extron electronics IPCP Pro Series User Manual page 33

Model and Port Types
Models without AV LAN
Models with AV LAN
PC
TCP/IP
Network
Ethernet
RJ-45
Connector
Rear Panels,
Bottom Panel Rack Mount
IPCP Pro 350DR Models
LAN
LAN
AV LAN (DHCP server disabled)
AV LAN (DHCP server enabled)
For details of communication protocols, ports, and services used, see the Pro Series
Control Product Network Ports and Licenses Guide at www.extron.com.
LED Indication:
Activity LED (connectors [all models] and front panel [rack mount models]) — This
yellow LED blinks to indicate network activity.
Link LED (connectors [all models] and front panel [rack mount models]) — This green
LED lights to indicate a good network connection.
1000 LED (front panel [rack mount models]) — This green LED lights when the unit is
connected to a gigabit network connection.
Cabling:
For 10Base-T (10 Mbps) networks, use a CAT 3 or better cable.
•
For 100Base-T (max. 155 Mbps) or 1000Base-T networks, use a CAT 5 or better cable.
•
For models without AV LAN: Connect the PC that you will use for setup, the LAN port
of the control processor, and the touchpanels to the same Ethernet network.
Ethernet
Insert Twisted
Pair Wires
RJ-45
Connector
Pins:
8 7 6 5 4 3 2 1
or
LAN
Activity
1 2
LED
NOTE: IPCPs with more than one LAN port function as multiport, unmanaged
network switches so you can connect additional devices to the same network.

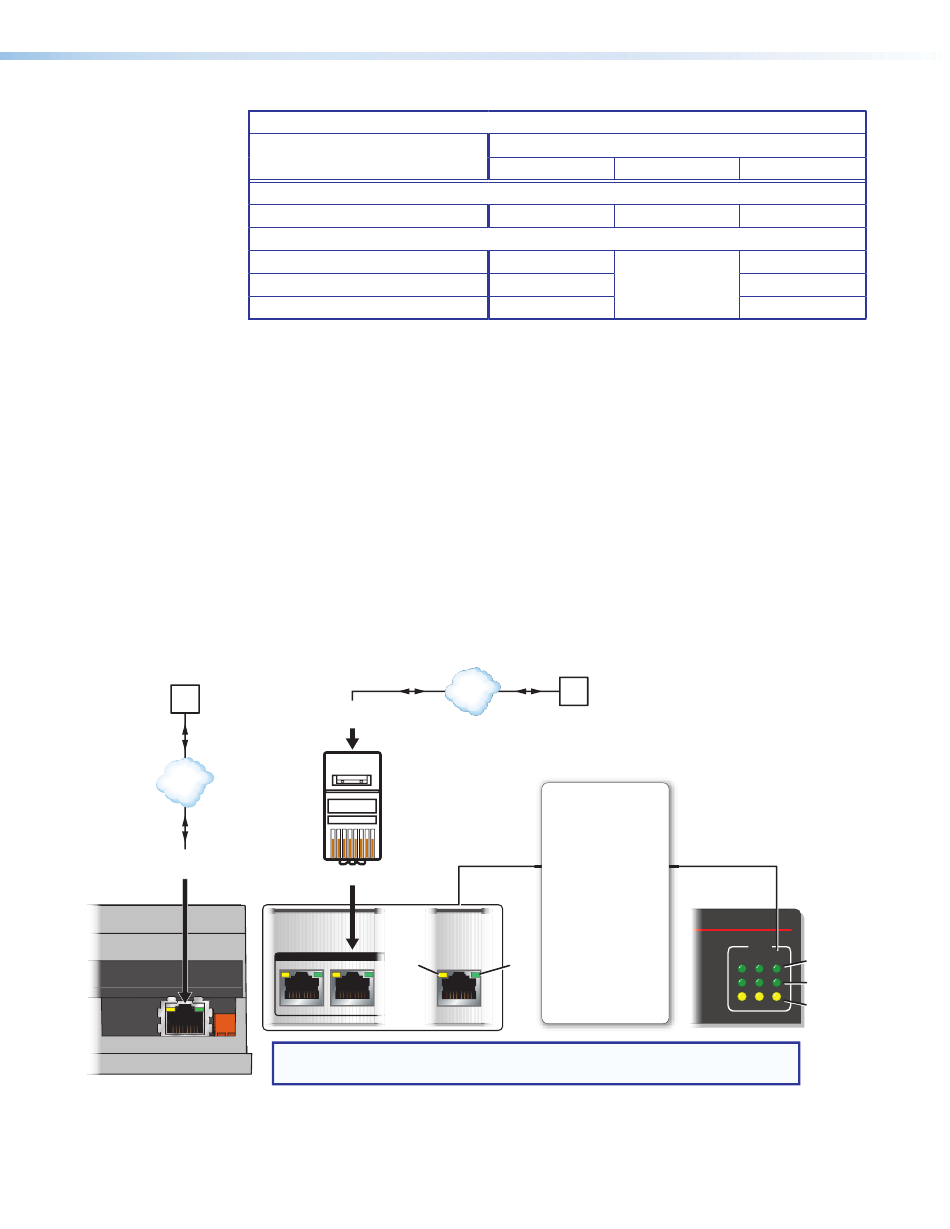

Figure 21. Models Without AV LAN:
LAN Connector, LEDs, and Default Protocol
Network Port Addressing
Default Settings
IP Address Subnet Mask
192.168.254.250 255.255.255.0
192.168.253.250
192.168.254.250 255.255.255.0
192.168.254.1
TCP/IP
PC
Network
LAN (Ethernet) —
Models
Without AV LAN
Default protocol, LAN
ports:
• LAN IP address:
192.168.254.250
• Gateway IP address:
0.0.0.0
• Subnet mask:
255.255.255.0
• DNS address:
127.0.0.1
• DHCP client: off
• Link speed and duplex
level: autodetected
• Data rates:
Link
LAN
10/100/1000Base-T
LED
Default login
credentials:
• Username: admin
• Password: extron
IPCP Pro Series • Hardware Features and Installation
DNS Address
127.0.0.1
127.0.0.1
127.0.0.1
192.168.254.1
Front Panels,
Rack Mount
Models
LAN
1000 Mbps
Connection
1 2 3
1000
Network is
LINK
active.
ACT
Data is being
sent/received.
25
