Power Connections

NOTE: The IPCP Pro 250, IPCP Pro 255, IPCP Pro 350, and IPCP Pro 360 are suitable
Power input connector (external power supply) — Connect the IPCP to the
A
included 12 VDC power supply (part number 28-071-57LF or 28-327-57LF ) via this
port (see
then connect the external power supply to a 100 to 240 VAC power source.
POWER POWER
12V
1A MAX
A A A AV LAN
POWER
POWER
12V
12V
1A MAX
x.xA MAX
Front/
Bottom
Rear
Panel,
Panel,
DIN Rail
Rack
Models
Mounted
Models
Smooth
Figure 17.
for use in an environmental air space in accordance with section 300.22.C of the
National Electrical Code, and sections 2-128, 12-010(3) and 12-100 of the Canadian
Electrical Code, part 1, C22.1.
figure 14, figure 15, and
Power Input, External Power Supply
• Connect to • Front panel LED (
included 12 VDC
power supply.
3/16"
(5 mm)
Max.
Ridged
– Return
Tie Wrap
+12 VDC input
Smooth
Ridged

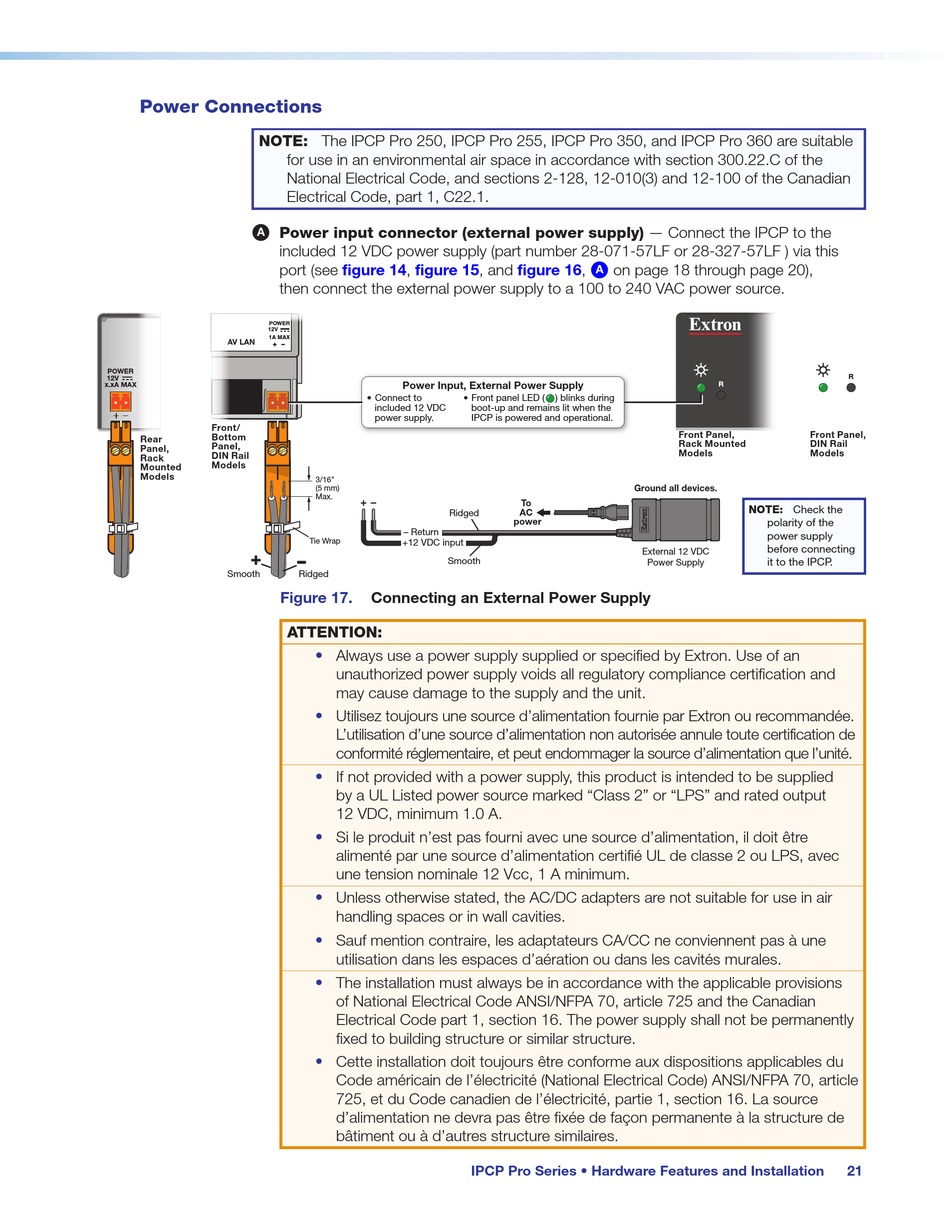

Connecting an External Power Supply
ATTENTION:
• Always use a power supply supplied or specified by Extron. Use of an
unauthorized power supply voids all regulatory compliance certification and
may cause damage to the supply and the unit.
• Utilisez toujours une source d'alimentation fournie par Extron ou recommandée.
L'utilisation d'une source d'alimentation non autorisée annule toute certification de
conformité réglementaire, et peut endommager la source d'alimentation que l'unité.
• If not provided with a power supply, this product is intended to be supplied
by a UL Listed power source marked "Class 2" or "LPS" and rated output
12 VDC, minimum 1.0 A.
• Si le produit n'est pas fourni avec une source d'alimentation, il doit être
alimenté par une source d'alimentation certifié UL de classe 2 ou LPS, avec
une tension nominale 12 Vcc, 1 A minimum.
• Unless otherwise stated, the AC/DC adapters are not suitable for use in air
handling spaces or in wall cavities.
• Sauf mention contraire, les adaptateurs CA/CC ne conviennent pas à une
utilisation dans les espaces d'aération ou dans les cavités murales.
• The installation must always be in accordance with the applicable provisions
of National Electrical Code ANSI/NFPA 70, article 725 and the Canadian
Electrical Code part 1, section 16. The power supply shall not be permanently
fixed to building structure or similar structure.
• Cette installation doit toujours être conforme aux dispositions applicables du
Code américain de l'électricité (National Electrical Code) ANSI/NFPA 70, article
725, et du Code canadien de l'électricité, partie 1, section 16. La source
d'alimentation ne devra pas être fixée de façon permanente à la structure de
bâtiment ou à d'autres structure similaires.
figure 16, on page 18 through page 20),
A
) blinks during
boot-up and remains lit when the
IPCP is powered and operational.
Ground all devices.
To
AC
power
External 12 VDC
Power Supply
IPCP Pro Series • Hardware Features and Installation
R
R
Front Panel, Front Panel,
Rack Mounted DIN Rail
Models Models
NOTE: Check the
polarity of the
power supply
before connecting
it to the IPCP.
