Unidirectional Control and Communication Connections

F
Front/Bottom Panel,
DIN Rail Models Rear Panels, Rack Mount Models
IR/SERIAL IR/SERIAL
1 2
1 2
S G S G S G S G
IR/SERIAL
1
S G
To a Projector,
Panel Display, or the IR or RS-232
Wired IR Remote or
Ground
RS-232 Port of a
Source Device
IR/Serial output ports (see
through page 20) — An IPCP Pro Series control processor can use infrared signals or
unidirectional RS-232 serial signals to control various devices (up to four per port for IR)
via these ports. Set output signal type (IR or serial) during configuration. The following
figure shows wiring examples.
1 2 3 4
or
S G S G S G S G
2 5 6 7 8
S G S G S G S G
S G
IR/SERIAL
or
Output
Unidirectional
IR

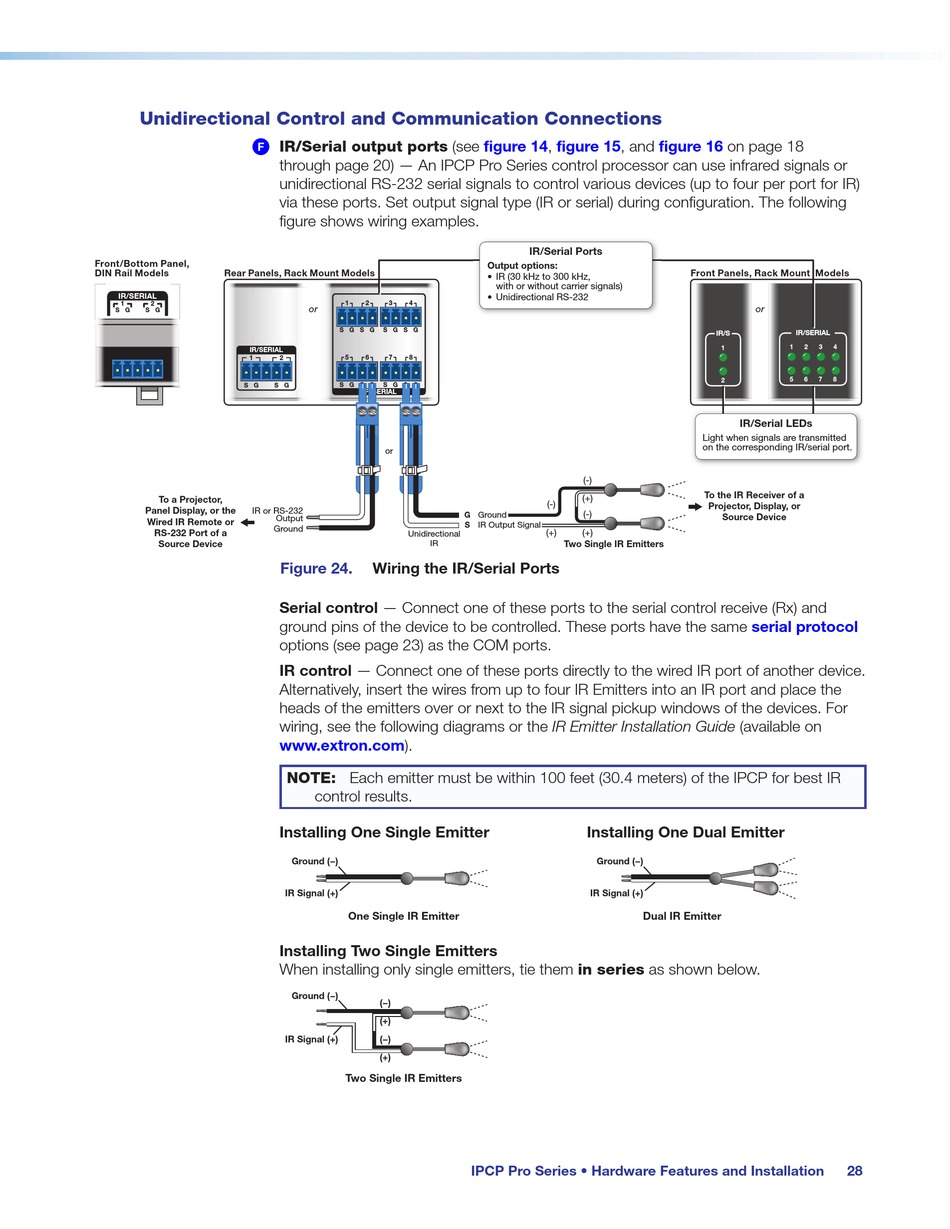

Figure 24. Wiring the IR/Serial Ports
Serial control — Connect one of these ports to the serial control receive (Rx) and
ground pins of the device to be controlled. These ports have the same
options (see page 23) as the COM ports.
IR control — Connect one of these ports directly to the wired IR port of another device.
Alternatively, insert the wires from up to four IR Emitters into an IR port and place the
heads of the emitters over or next to the IR signal pickup windows of the devices. For
wiring, see the following diagrams or the IR Emitter Installation Guide (available on
www.extron.com).
NOTE: Each emitter must be within 100 feet (30.4 meters) of the IPCP for best IR
control results.
Installing One Single Emitter
Ground (−)
IR Signal (+)
One Single IR Emitter
Installing Two Single Emitters
When installing only single emitters, tie them in series as shown below.
Ground (−)
(−)
(+)
IR Signal (+) (−)
(+)
Two Single IR Emitters
figure 14, figure 15, and
IR/Serial Ports
Output options:
• IR (30 kHz to 300 kHz,
with or without carrier signals)
• Unidirectional RS-232
(-)
(+)
(-)
(-)
G Ground
S IR Output Signal
(+) (+)
Two Single IR Emitters
Installing One Dual Emitter
Ground (−)
IR Signal (+)
Dual IR Emitter
IPCP Pro Series • Hardware Features and Installation
figure 16
on page 18
Front Panels, Rack Mount Models
or
IR/SERIAL
IR/S
1 2 3 4
1
5 6 7 8
2
IR/Serial LEDs
Light when signals are transmitted
on the corresponding IR/serial port.
To the IR Receiver of a
Projector, Display, or
Source Device
serial protocol
28
