Step 9
ATTACHING THE PEDALS
PARTS
• Left pedal, marked with an L (box II)
• Right pedal, marked with an R (box II)
35
AA
AB

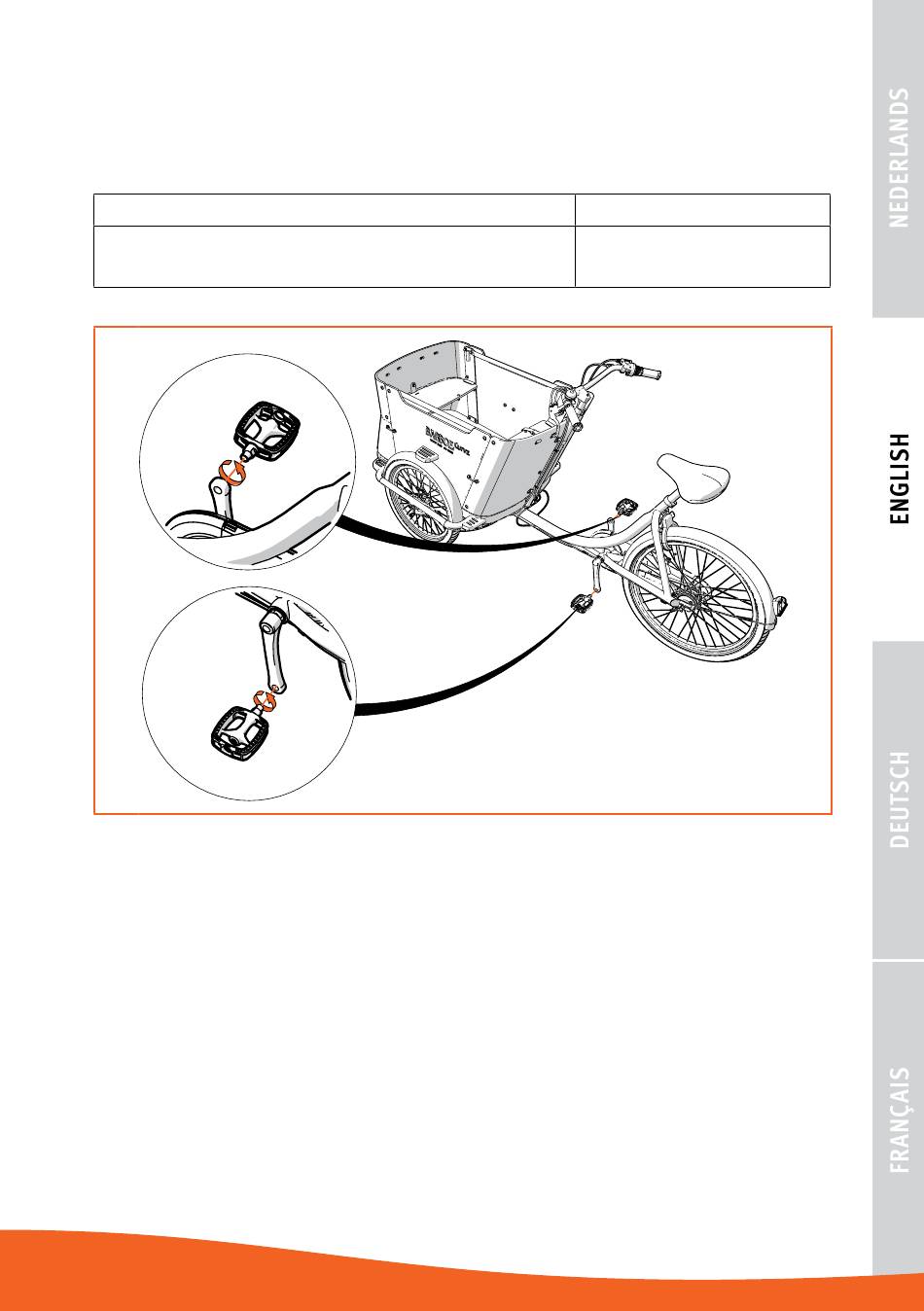

1.
Tighten the axle of the right pedal in a clockwise motion in the crank using
spanner # 15 (see detail AA).
2.
Tighten the axle of the left pedal in a anti-clockwise motion in the crank using
spanner # 15 (see detail AB).
TOOLS
• Spanner # 15
