10. Software STEVE
Displaying multi-channel images
When you visualize a multi-channel image, the overlay parameter must be set to 0 (Figure 33). The fluorescence control area in the lower right
part of your software window provides access to all of the fluorescent channels (Figure 34).
• You can have the individual fluorescence image displayed separately or as a complete overview of all the fluorescence images (refer to Figure
34); to do so use the navigation bars in the fluorescence control area.
• Move a color bar to make the channel appear or disappear. All of the color channels that are at the moment displayed on your monitor will be
recognized through the color bars (0 %to 100% transparency) (Figure 34).

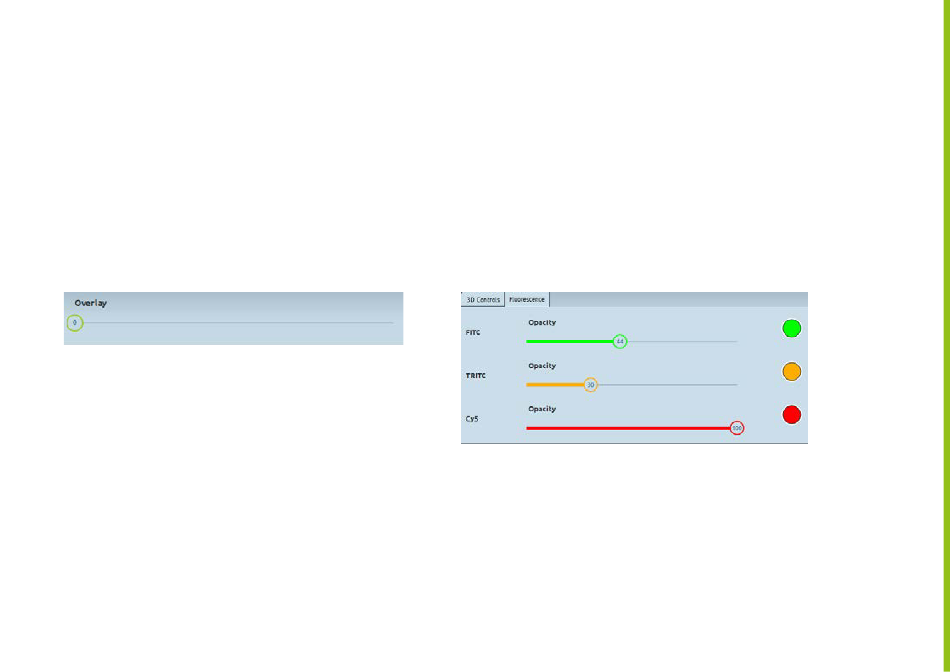

Figure 33 Overlay slider
Figure 34 Fluorescence control area
