6. Start-up
Installation and setup
9. Diverse connections of your CoolLed illumination system

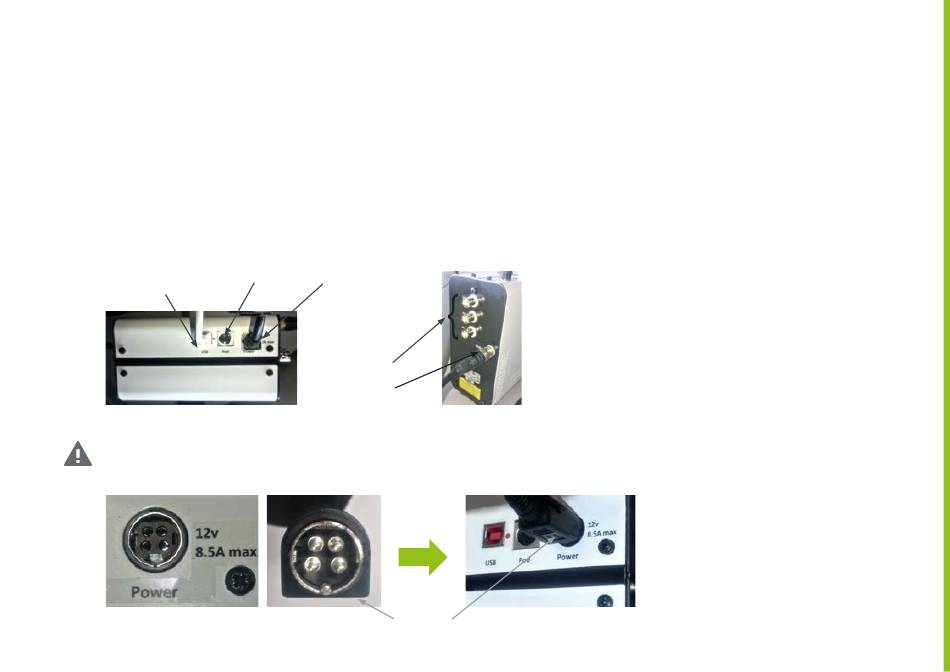

• Plug the power connector from the DC power supply to the CoolLED illumination system as shown below. Ensure that the DC power supply
is the one supplied with the product. Using a non-CoolLED power supply may damage the illumination system and will invalidate the
warranty. At this stage do not connect the main power lead to the DC power supply (Figure 11).
• Plug the CoolLED illumination system USB 2.0 cable into the USB 2.0 port on the top of the CoolLED illumination system and connect it to
one of the USB slots on your computer (Figure 11).
• Then plug the BNC cable to the rear panel of the CoolLED illumination system and to the rear panel of the 3D Cell Explorer-
USB 2.0 cable between Not Used
module and computer
Figure 11
Important Note
Orientation of the power plug: Plug the power cable with the flat surface facing inward (Figure 13)
CoolLED module
Figure 13
Power supply
Not Used
BNC cable
Figure 12
Power plug Flat surface
fluo
(Figure 12).
