7. Handling
Correct handling of the 3D Cell Explorer-
Instructions on how to protect the LLG header and how to properly take care of the LLG
• Use the protective cap for both ends when the LLG is not connected to the devices (Figure 15 & 16)
• The light guide is a fine, high quality optical instrument. The useful life can be prolonged by following these simple guidelines
• Avoid stretching the light guide, forming configurations, involving sharp angels or kinks, or contact with sharp or pointed
objects. Light guide breakage will result in diminished light output (Figure 16).
• Any inadvertent cut or puncture to the outer wall will render the light guide unsafe for use and must be taken out of service
immediately.

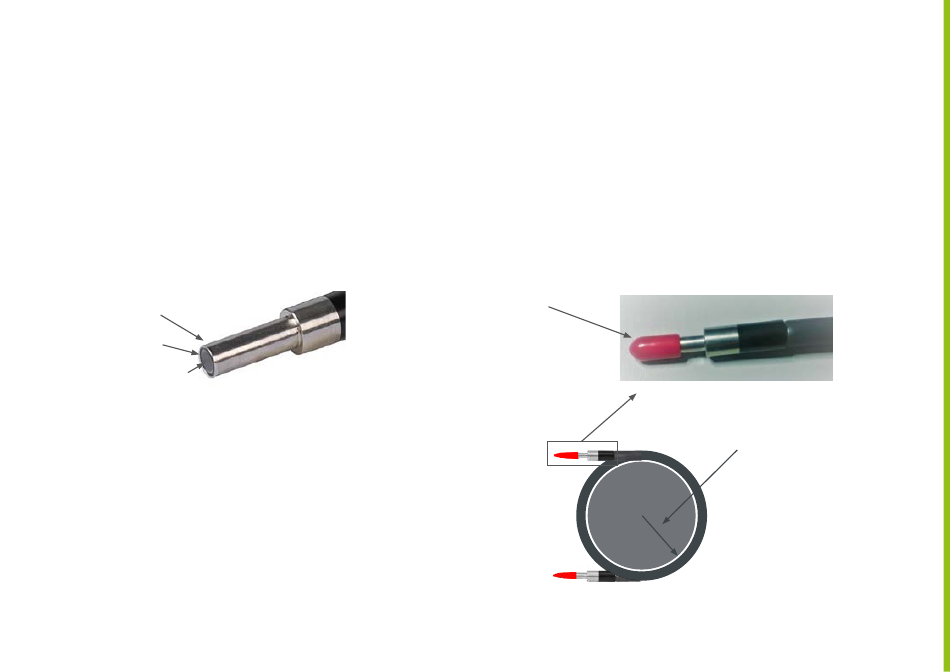

Metal
Teflon
Fused Silica
Figure 17
• Avoid scratch or damage to the LLG ends (especially the silica surfaces)
when connecting them to the CoolLed illumination system and the 3D
fluo
Cell Explorer- (Figure 17).
• Clean ends with optical tissue and grade alcohol
fluo
Protective cap
Figure 16
LLG header
Figure 15
Storage of LLG: minimum
bending radius of 75 mm
