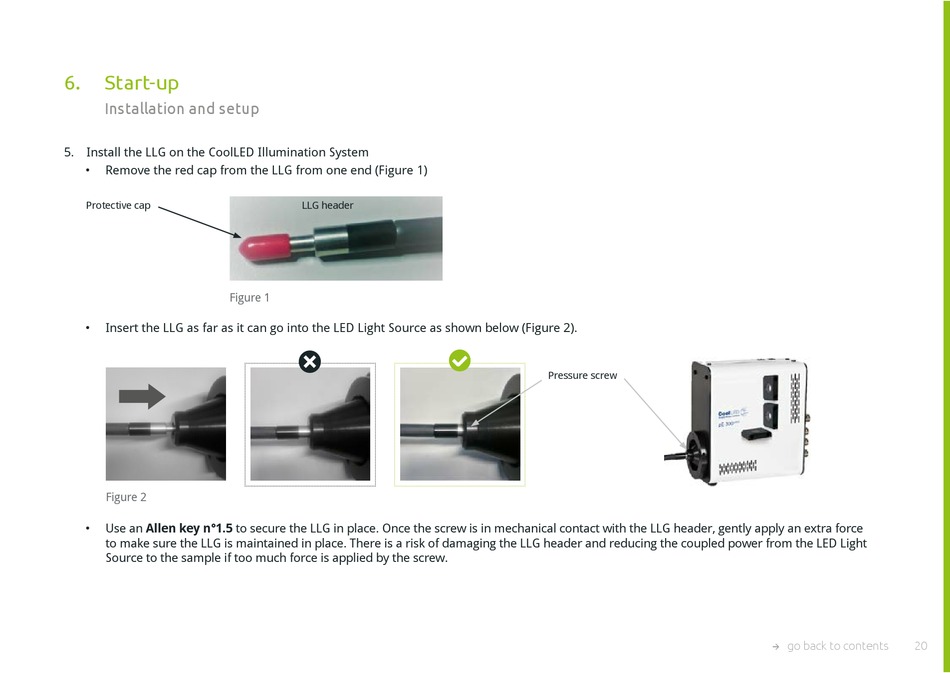

Nanolive 3D Cell Explorer-fluo User Manual page 20

6. Start-up
Installation and setup
5. Install the LLG on the CoolLED Illumination System
• Remove the red cap from the LLG from one end (Figure 1)
Protective cap
Figure 1
• Insert the LLG as far as it can go into the LED Light Source as shown below (Figure 2).
Figure 2
• Use an Allen key n°1.5 to secure the LLG in place. Once the screw is in mechanical contact with the LLG header, gently apply an extra force
to make sure the LLG is maintained in place. There is a risk of damaging the LLG header and reducing the coupled power from the LED Light
Source to the sample if too much force is applied by the screw.
LLG header
✔
✖
Pressure screw
